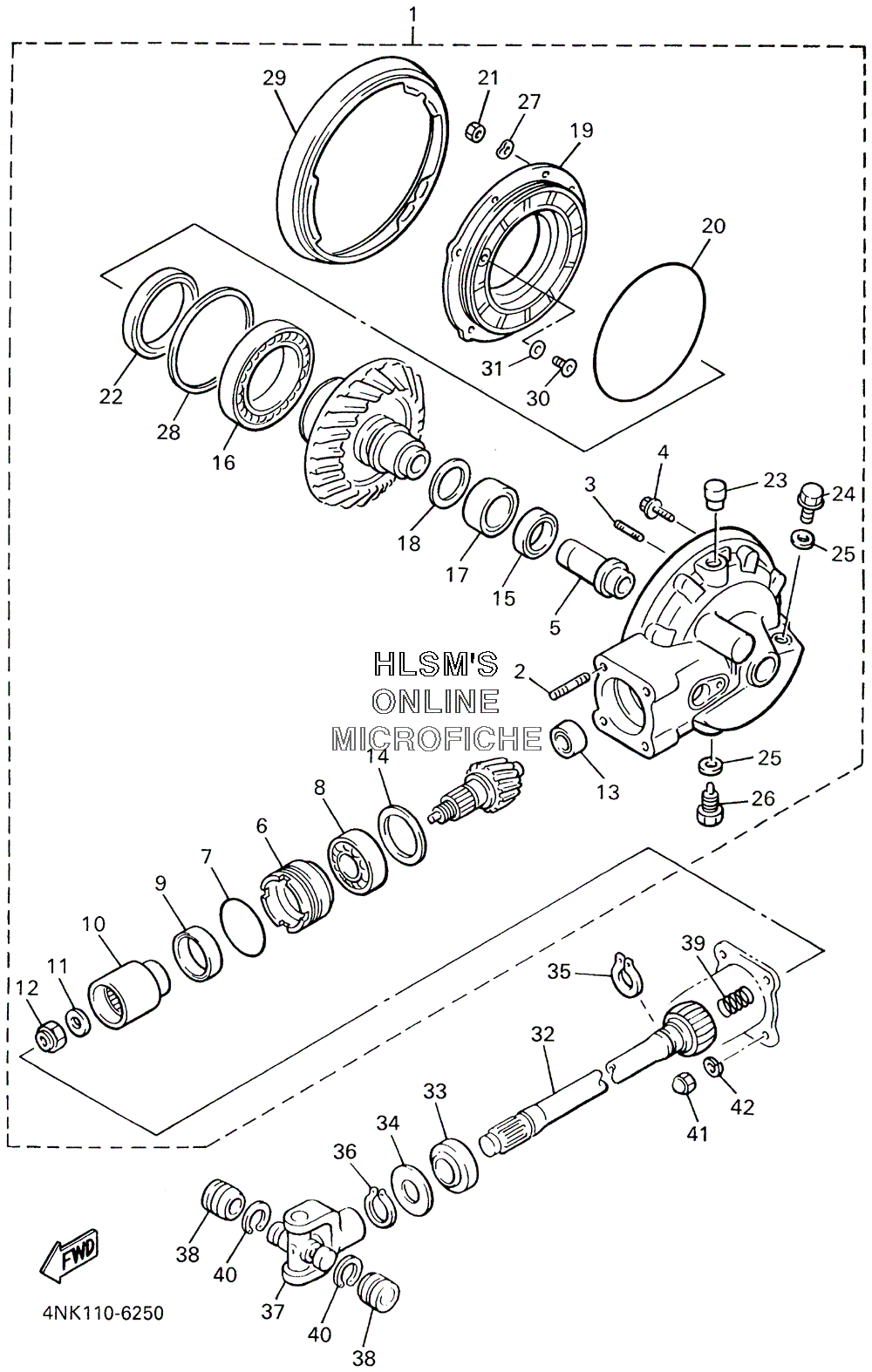

DRIVE SHAFT W/ GEAR CASE для Yamaha XVZ 1300 LT ROAD STAR TOUR DELUXE - 2001 года выпуска`
-
№АртикулНазвание
-
14XY-46101-00-00 REAR AXLE GEAR CASE ASSYREAR AXLE GEAR CASE ASSY
-
290116-10593-00 ...BOLT, STUD...BOLT, STUD
-
390116-08427-00 ...BOLT, STUD...BOLT, STUD
-
495817-10050-00 ...BOLT, FLANGE...BOLT, FLANGE
-
54YE-46153-00-00 ...COLLAR, GUIDE...COLLAR, GUIDE
-
64H7-46125-00-00 ...RETAINER, BEARING...RETAINER, BEARING
-
793210-60426-00 ...O-RING...O-RING
-
893306-30533-00 ...BEARING (B6305RB1 SPECIAL)...BEARING (B6305RB1 SPECIAL)
-
993101-38098-00 ...OIL SEAL...OIL SEAL
-
104H7-46123-01-00 ...COUPLING, GEAR...COUPLING, GEAR
-
1190201-166R5-00 ...WASHER, PLATE...WASHER, PLATE
-
1290179-16661-00 ...NUT...NUT
-
132H7-46102-00-00 ...BEARING ASSY...BEARING ASSY
-
141J7-17537-Y0-30 ...SHIM, THRUST (0.30T) (OPT)...SHIM, THRUST (0.30T) (OPT)
-
141J7-17537-Y0-40 ...SHIM, THRUST (0.40T) (OPT)...SHIM, THRUST (0.40T) (OPT)
-
141J7-17537-Y0-50 ...SHIM, THRUST (0.50T) (OPT)...SHIM, THRUST (0.50T) (OPT)
-
1593101-30084-00 ...OIL SEAL...OIL SEAL
-
1693316-01403-00 ...BEARING...BEARING
-
1793311-43729-00 ...BEARING...BEARING
-
1822U-46118-00-12 ...SHIM, THRUST (1.2T) (OPT)...SHIM, THRUST (1.2T) (OPT)
-
1822U-46118-00-14 ...SHIM, THRUST (1.4T) (OPT)...SHIM, THRUST (1.4T) (OPT)
-
1822U-46118-00-16 ...SHIM, THRUST (1.6T) (OPT)...SHIM, THRUST (1.6T) (OPT)
-
1822U-46118-00-18 ...SHIM, THRUST (1.8T) (OPT)...SHIM, THRUST (1.8T) (OPT)
-
1822U-46118-00-20 ...SHIM, THRUST (2.0T) (OPT)...SHIM, THRUST (2.0T) (OPT)
-
191FK-46152-01-00 ...HOUSING, BEARING...HOUSING, BEARING
-
2093211-54698-00 ...O-RING...O-RING
-
2195317-08600-00 ...NUT...NUT
-
2293102-70167-00 ...OIL SEAL...OIL SEAL
-
2356W-17590-00-00 ...BREATHER COMP....BREATHER COMP.
-
2490340-14132-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
25214-11198-01-00 ...GASKET...GASKET
-
2690340-14135-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
2792907-08700-00 ...WASHER...WASHER
-
281J7-46117-Y0-25 ...SHIM, RING GEAR (0.25T) (OPT)...SHIM, RING GEAR (0.25T) (OPT)
-
281J7-46117-Y0-30 ...SHIM, RING GEAR (0.30T) (OPT)...SHIM, RING GEAR (0.30T) (OPT)
-
281J7-46117-Y0-40 ...SHIM, RING GEAR (0.40T) (OPT)...SHIM, RING GEAR (0.40T) (OPT)
-
281J7-46117-Y0-50 ...SHIM, RING GEAR (0.50T) (OPT)...SHIM, RING GEAR (0.50T) (OPT)
-
291FK-46154-00-00 ...COVER, HOUSING...COVER, HOUSING
-
301FK-46156-00-00 ...STOPPER, RING GEAR...STOPPER, RING GEAR
-
311FK-46157-00-15 ...SHIM, STOPPER (T=0.15) (OPT)...SHIM, STOPPER (T=0.15) (OPT)
-
311FK-46157-00-20 ...SHIM, STOPPER (T=0.20) (OPT)...SHIM, STOPPER (T=0.20) (OPT)
-
324NK-46172-00-00 SHAFT, DRIVESHAFT, DRIVE
-
3393108-23007-00 OIL SEALOIL SEAL
-
3490201-231A2-00 WASHER, PLATEWASHER, PLATE
-
3593410-23056-00 CIRCLIPCIRCLIP
-
3693410-22039-00 CIRCLIPCIRCLIP
-
374X7-46180-00-00 CROSS JOINT COMP.CROSS JOINT COMP.
-
3893311-21044-00 BEARINGBEARING
-
3990501-16491-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
4093440-20088-00 CIRCLIPCIRCLIP
-
4190176-10075-00 NUT, CROWNNUT, CROWN
-
4292903-10100-00 WASHER, SPRINGWASHER, SPRING
