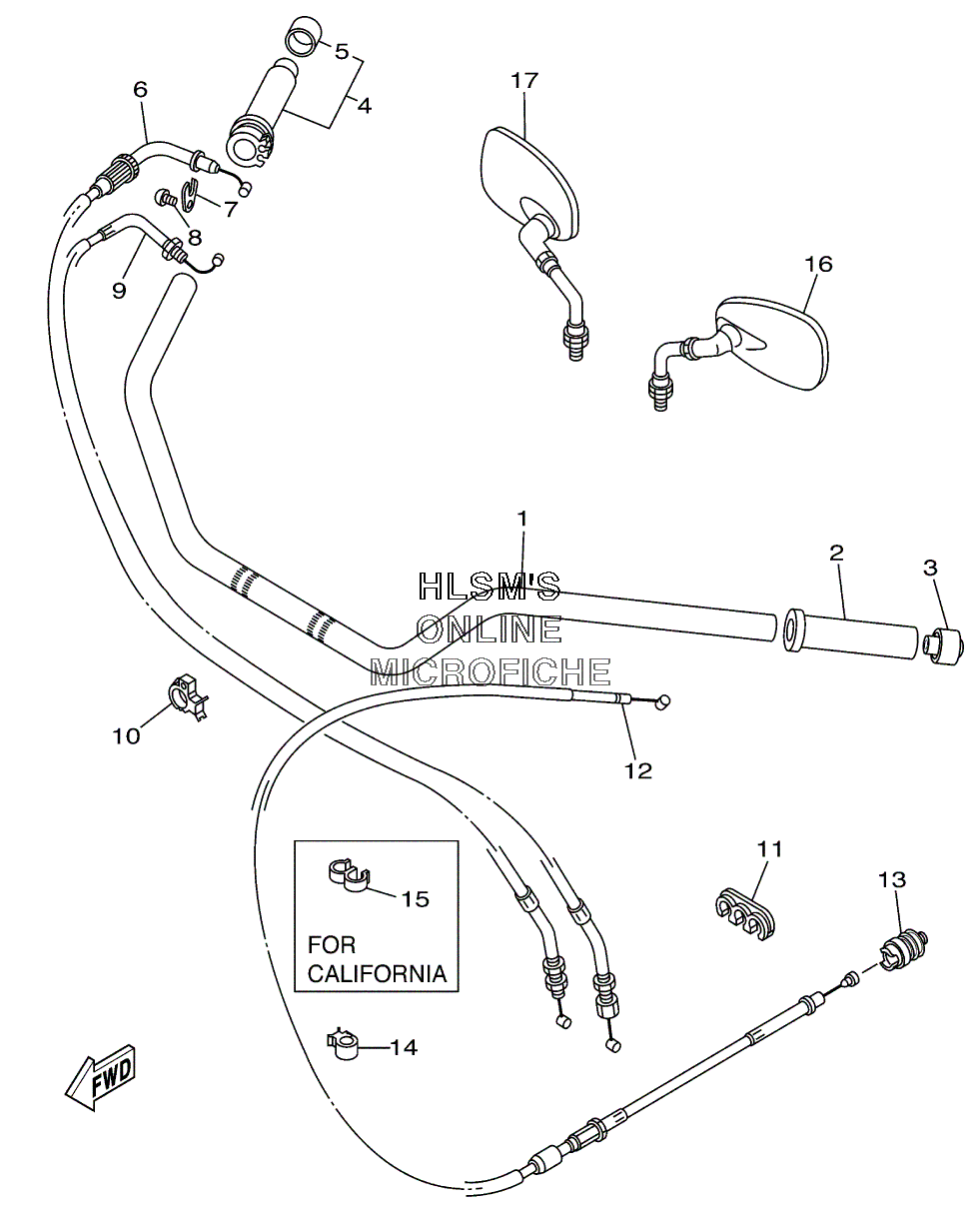

HANDLEBAR W/ CABLES для Yamaha XV 1600 A ROAD STAR - 2001 года выпуска`
-
№АртикулНазвание
-
14WM-26111-00-00 HANDLEBARHANDLEBAR
-
24NK-26241-00-00 GRIP (LEFT)GRIP (LEFT)
-
34NK-2628J-00-00 CAP, GRIPCAP, GRIP
-
44NK-26240-00-00 GRIP ASSY.GRIP ASSY.
-
54NK-2635J-00-00 ...CAP 2...CAP 2
-
64WM-26311-01-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
75H0-26393-00-00 HOLDERHOLDER
-
898507-05008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
94WM-26312-00-00 CABLE, THROTTLE 2CABLE, THROTTLE 2
-
1090464-25217-00 CLAMPCLAMP
-
1190468-07179-00 CLIPCLIP
-
124WM-26335-00-00 CABLE, CLUTCHCABLE, CLUTCH
-
131E6-26342-00-00 BOOT, CABLEBOOT, CABLE
-
1490464-10190-00 CLAMPCLAMP
-
1590464-10075-00 CLAMPCLAMP
-
164NK-26280-00-00 REAR VIEW MIRROR ASSY. (LEFT)REAR VIEW MIRROR ASSY. (LEFT)
-
174NK-26290-00-00 REAR VIEW MIRROR ASSY. (RIGHT)REAR VIEW MIRROR ASSY. (RIGHT)
