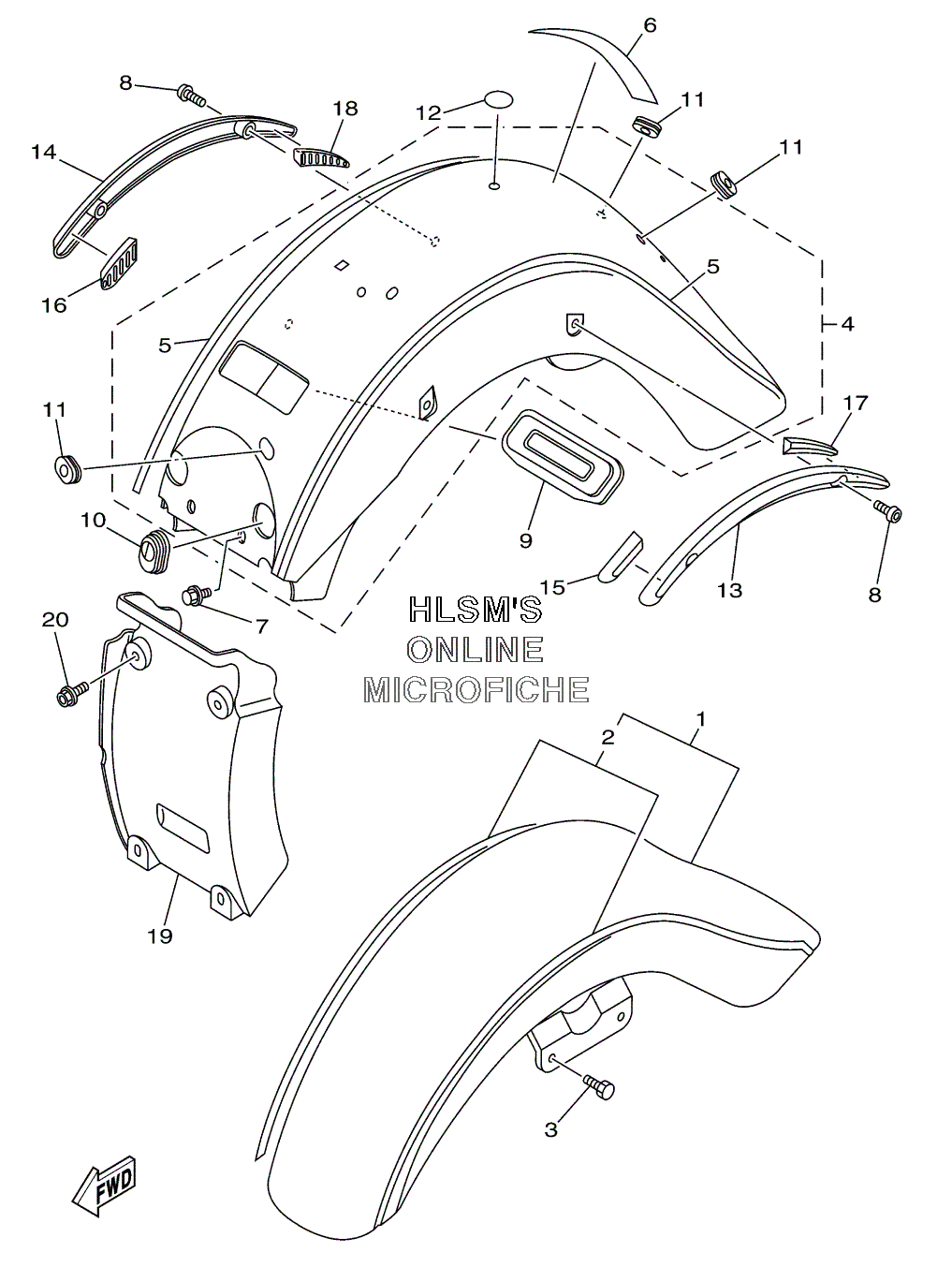

FENDER - FRONT / REAR для Yamaha XV 1600 A ROAD STAR - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    4WM-Y2150-B0-6X FRONT FENDER ASSY. (BRIGHT CHERRY RED (BCR)/BLACK (URB))
    FRONT FENDER ASSY. (BRIGHT CHERRY RED (BCR)/BLACK (URB))
  • 1
    4WM-Y2150-F0-8X FRONT FENDER ASSY. (YAMAHA BLACK (YB)/YELLOWISH SILVER (YS2))
    FRONT FENDER ASSY. (YAMAHA BLACK (YB)/YELLOWISH SILVER (YS2))
  • 1
    4WM-YK215-00-P1 FRONT FENDER COMP. (LIGHT YELLOWISH GRAY METALLIC (LYNM9))
    FRONT FENDER COMP. (LIGHT YELLOWISH GRAY METALLIC (LYNM9))
  • 2
    4WM-21570-90-00 ...GRAPHIC SET, FRONT FENDER (FOR BRIGHT CHERRY RED (BCR))
    ...GRAPHIC SET, FRONT FENDER (FOR BRIGHT CHERRY RED (BCR))
  • 2
    4WM-21570-B0-00 ...GRAPHIC SET, FRONT FENDER (FOR YAMAHA BLACK (YB))
    ...GRAPHIC SET, FRONT FENDER (FOR YAMAHA BLACK (YB))
  • 3
    91314-08025-00 BOLT
    BOLT
  • 4
    4WM-Y2161-B1-6X REAR FENDER COMP. (BRIGHT CHERRY RED (BCR)/BLACK (URB))
    REAR FENDER COMP. (BRIGHT CHERRY RED (BCR)/BLACK (URB))
  • 4
    4WM-Y2161-F1-8X REAR FENDER COMP. (YAMAHA BLACK (YB)/YELLOWISH SILVER (YS2))
    REAR FENDER COMP. (YAMAHA BLACK (YB)/YELLOWISH SILVER (YS2))
  • 4
    4WM-YK216-01-P1 REAR FENDER C0MP. (LIGHT YELLOWISH GRAY METALLIC (LYNM9))
    REAR FENDER C0MP. (LIGHT YELLOWISH GRAY METALLIC (LYNM9))
  • 5
    4WM-2165A-90-00 ...GRAPHIC SET, REAR FENDER (FOR BRIGHT CHERRY RED (BCR))
    ...GRAPHIC SET, REAR FENDER (FOR BRIGHT CHERRY RED (BCR))
  • 5
    4WM-2165A-B0-00 ...GRAPHIC SET, REAR FENDER (FOR YAMAHA BLACK (YB))
    ...GRAPHIC SET, REAR FENDER (FOR YAMAHA BLACK (YB))
  • 6
    99247-00080-00 EMBLEM, YAMAHA
    EMBLEM, YAMAHA
  • 7
    90119-06056-00 BOLT, WITH WASHER
    BOLT, WITH WASHER
  • 8
    92014-08025-00 BOLT, BUTTON HEAD
    BOLT, BUTTON HEAD
  • 9
    4WM-21649-00-00 DAMPER
    DAMPER
  • 10
    4WM-21638-00-00 DAMPER 1
    DAMPER 1
  • 11
    90480-15061-00 GROMMET
    GROMMET
  • 12
    4NK-21735-00-00 SEAL 2
    SEAL 2
  • 13
    4WM-2164F-00-00 STAY 1
    STAY 1
  • 14
    4WM-2164G-00-00 STAY 2
    STAY 2
  • 15
    4WM-21541-00-00 DAMPER 1
    DAMPER 1
  • 16
    4WM-21542-00-00 DAMPER 2
    DAMPER 2
  • 17
    4WM-2174X-00-00 DAMPER
    DAMPER
  • 18
    4WM-2174Y-00-00 DAMPER
    DAMPER
  • 19
    4WM-21629-00-JW GUARD, MUD (BLACK (URB) FOR BRIGHT CHERRY RED (BCR))
    GUARD, MUD (BLACK (URB) FOR BRIGHT CHERRY RED (BCR))
  • 19
    4WM-21629-00-P2 GUARD, MUD (LIGHT YELLOWISH GRAY METALLIC (LYNM9))
    GUARD, MUD (LIGHT YELLOWISH GRAY METALLIC (LYNM9))
  • 19
    4WM-21629-00-P3 GUARD, MUD (YELLOWISH SILVER (YS2) FOR YAMAHA BLACK (YB))
    GUARD, MUD (YELLOWISH SILVER (YS2) FOR YAMAHA BLACK (YB))
  • 20
    90119-06060-00 BOLT, WITH WASHER
    BOLT, WITH WASHER
