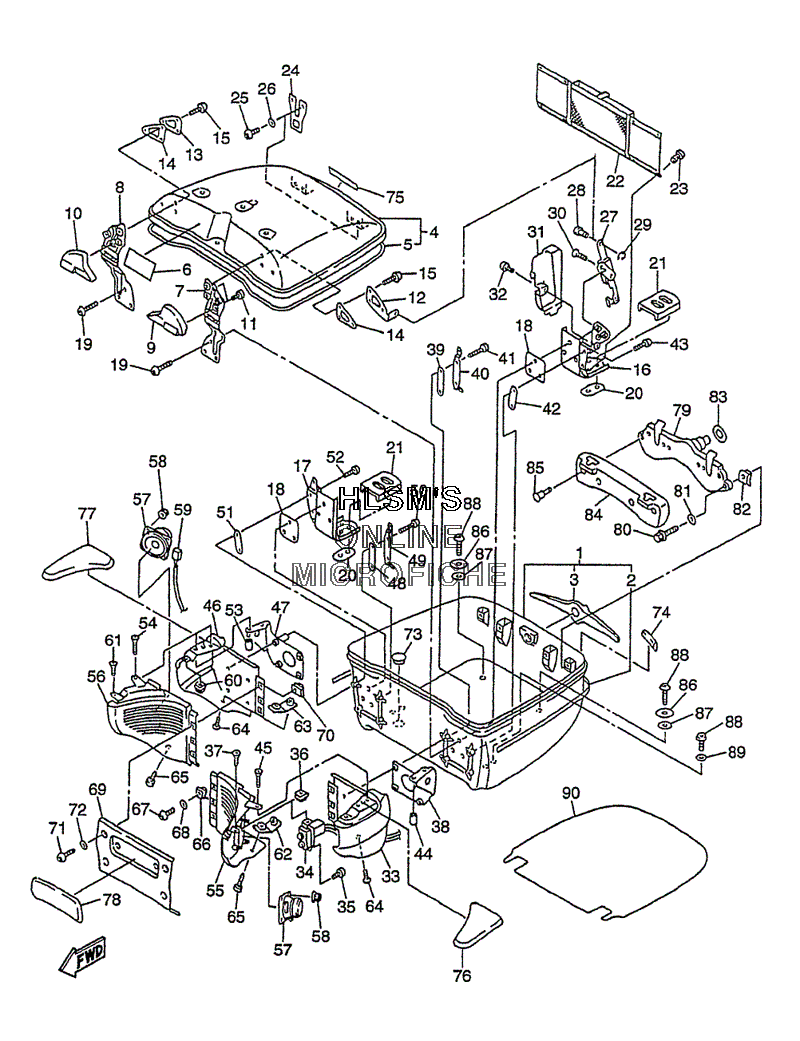

TRAVEL BAG 1 для Yamaha XVZ 1300 TFS VENTURE MM LTD - 2000 года выпуска
-
№АртикулНазвание
-
14XY-Y284E-81-2X TRAVEL TRANK COMP (580) (VIVID RED COCKTAIL 7)TRAVEL TRANK COMP (580) (VIVID RED COCKTAIL 7)
-
14XY-Y284E-A1-2X TRAVEL TRANK COMP (580) (VIVID RED COCKTAIL 7)TRAVEL TRANK COMP (580) (VIVID RED COCKTAIL 7)
-
24XY-2840H-20-00 ...GRAPHIC SET, TRAVEL TRUNK...GRAPHIC SET, TRAVEL TRUNK
-
34XY-2179V-10-00 ...PLATE, EPA 1 (EXCEPT CALIF.)...PLATE, EPA 1 (EXCEPT CALIF.)
-
34XY-2179R-10-00 ...PLATE, EPA 2 (CALIF. ONLY)...PLATE, EPA 2 (CALIF. ONLY)
-
44XY-28428-00-00 ...SEAL 1...SEAL 1
-
54XY-2845E-01-00 ...HINGE 2...HINGE 2
-
64XY-2849E-01-00 ...HINGE 4...HINGE 4
-
74XY-2846K-00-P2 ...COVER, HINGE 1 (580) (VIVID RED COCKTAIL 7)...COVER, HINGE 1 (580) (VIVID RED COCKTAIL 7)
-
84XY-2846L-00-P2 ...COVER, HINGE 2 (580) (VIVID RED COCKTAIL 7)...COVER, HINGE 2 (580) (VIVID RED COCKTAIL 7)
-
997707-40010-00 ...SCREW, TAPPING...SCREW, TAPPING
-
104XY-28487-00-00 ...PLATE 2...PLATE 2
-
114XY-28497-00-00 ...PLATE 3...PLATE 3
-
124XY-28485-00-00 ...PLATE, RUBBER 3...PLATE, RUBBER 3
-
1392017-05014-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
144XY-28486-01-00 ...BRACKET 5...BRACKET 5
-
154XY-28496-01-00 ...BRACKET 6...BRACKET 6
-
164XY-28484-00-00 ...PLATE, RUBBER 2...PLATE, RUBBER 2
-
1792017-05020-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
184XY-28483-00-00 ...PLATE, RUBBER 1...PLATE, RUBBER 1
-
194XY-2848M-00-00 ...SEAT 4...SEAT 4
-
204XY-2848L-00-00 ...SEAT 3...SEAT 3
-
2190269-05039-00 ...RIVET...RIVET
-
224XY-28488-00-00 ...HOOK...HOOK
-
2392017-05008-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
2490201-05725-00 ...WASHER, PLATE...WASHER, PLATE
-
254XY-2845L-01-00 ...STOPPER, OPEN...STOPPER, OPEN
-
264XY-2842L-00-00 ...PIN, STOPPER...PIN, STOPPER
-
2799001-04600-00 ...CIRCLIP...CIRCLIP
-
2898707-04010-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
294XY-2843F-00-00 ...COVER ASSY...COVER ASSY
-
3092017-05010-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
314XY-8816E-01-P2 ...BASE, REMOTE CONTROL (580) (VIVID RED COCKTAIL 7)...BASE, REMOTE CONTROL (580) (VIVID RED COCKTAIL 7)
-
324XY-88169-01-00 ...REMOTE CONTROL 1...REMOTE CONTROL 1
-
3397707-40010-00 ...SCREW, TAPPING...SCREW, TAPPING
-
3490183-05024-00 ...NUT, SPRING...NUT, SPRING
-
3598707-05014-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
364XY-28426-00-00 ...BRACKET 1...BRACKET 1
-
374XY-2848J-00-00 ...PLATE, RUBBER 8...PLATE, RUBBER 8
-
384XY-2841R-00-00 ...PLATE, BOTTOM...PLATE, BOTTOM
-
3992017-06030-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
404XY-2847J-00-00 ...PLATE, RUBBER 7...PLATE, RUBBER 7
-
4192017-05014-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
4290179-05523-00 ...NUT...NUT
-
4398707-05020-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
444XY-2841L-01-P2 ...BODY (VRC7)...BODY (VRC7)
-
454XY-28436-00-00 ...BRACKET 2...BRACKET 2
-
464XY-2848J-00-00 ...PLATE, RUBBER 8...PLATE, RUBBER 8
-
474XY-2841R-00-00 ...PLATE, BOTTOM...PLATE, BOTTOM
-
4892017-06030-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
494XY-2847J-00-00 ...PLATE, RUBBER 7...PLATE, RUBBER 7
-
5092017-05014-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
5190179-05523-00 ...NUT...NUT
-
5298707-05020-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
534XY-88165-01-P2 ...GRILLE, SPEAKER 1 (580) (VIVID RED COCKTAIL 7)...GRILLE, SPEAKER 1 (580) (VIVID RED COCKTAIL 7)
-
544XY-88175-01-P2 ...GRILLE, SPEAKER 2 (580) (VIVID RED COCKTAIL 7)...GRILLE, SPEAKER 2 (580) (VIVID RED COCKTAIL 7)
-
554XY-88161-00-00 ...SPEAKER 1...SPEAKER 1
-
5695707-05500-00 ...NUT, FLANGE...NUT, FLANGE
-
574XY-88176-00-00 ...CORD...CORD
-
5890183-05024-00 ...NUT, SPRING...NUT, SPRING
-
5998707-05016-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
604XY-2846H-01-00 ...PLATE, 4...PLATE, 4
-
614XY-28417-01-00 ...PLATE...PLATE
-
6290152-05009-00 ...SCREW, COUNTERSUNK...SCREW, COUNTERSUNK
-
6390154-05064-00 ...SCREW, BINDING...SCREW, BINDING
-
6490183-05024-00 ...NUT, SPRING...NUT, SPRING
-
6598507-05012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
6692907-05600-00 ...WASHER, PLATE...WASHER, PLATE
-
674XY-2844J-00-P2 ...COVER 4 (VRC7)...COVER 4 (VRC7)
-
6890183-05024-00 ...NUT, SPRING...NUT, SPRING
-
6992014-05014-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
7090202-05088-00 ...WASHER, PLATE...WASHER, PLATE
-
7190338-24260-00 ...PLUG...PLUG
-
721JK-21268-00-00 ...SEAL...SEAL
-
7399247-00080-00 ...EMBLEM, YAMAHA...EMBLEM, YAMAHA
-
744XY-2848N-00-00 ...SEAT 5...SEAT 5
-
754XY-2848P-00-00 ...SEAT 6...SEAT 6
-
764XY-2848R-00-00 ...SEAT 7...SEAT 7
-
7790183-05024-00 ...NUT, SPRING...NUT, SPRING
-
784XY-28445-00-00 ...EMBLEM...EMBLEM
-
794XY-W2841-00-00 LOCK ASS'Y 1LOCK ASS'Y 1
-
8097007-05020-00 BOLTBOLT
-
8192907-05600-00 WASHER, PLATEWASHER, PLATE
-
824KN-2475M-00-00 SEALSEAL
-
834XY-28493-00-00 COVER LOCK ASSY 2COVER LOCK ASSY 2
-
8490269-06001-00 RIVETRIVET
-
8590201-065G8-00 WASHER, PLATEWASHER, PLATE
-
8690202-06058-00 WASHER, PLATEWASHER, PLATE
-
8792017-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
8892907-06600-00 WASHER, PLATEWASHER, PLATE
-
894XY-2848H-00-00 SEATSEAT
