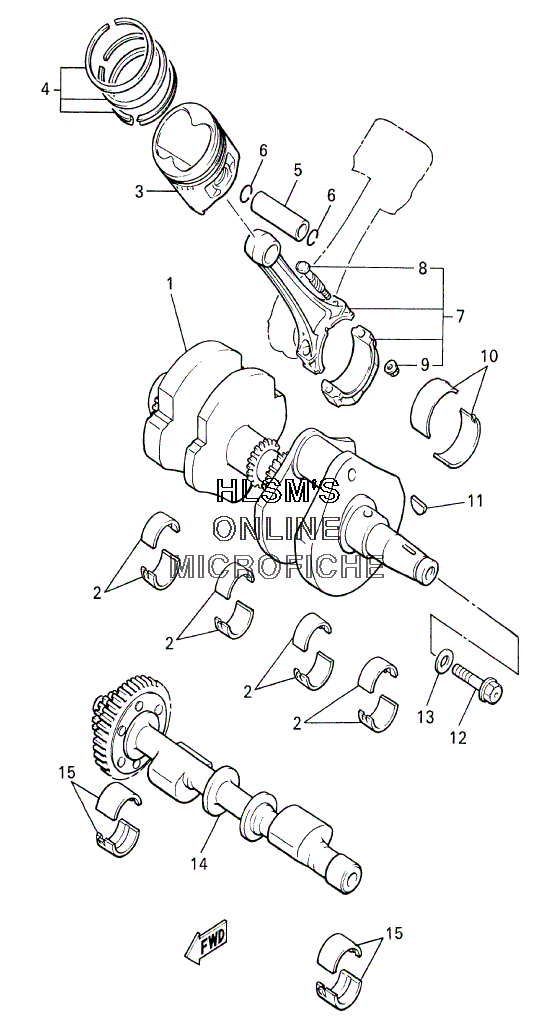

CRANKSHAFT W/ PISTION для Yamaha XVZ 1300 TFS VENTURE MM LTD - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    4XY-11400-00-00 CRANKSHAFT ASSY
    CRANKSHAFT ASSY
  • 2
    1FK-11416-01-00 PLANE BEARING, CRANKSHAFT 1 (BLUE) (OPT)
    PLANE BEARING, CRANKSHAFT 1 (BLUE) (OPT)
  • 2
    1FK-11416-11-00 PLANE BEARING, CRANKSHAFT 1 (BLACK) (OPT)
    PLANE BEARING, CRANKSHAFT 1 (BLACK) (OPT)
  • 2
    1FK-11416-21-00 PLANE BEARING, CRANKSHAFT 1 (BROWN) (OPT)
    PLANE BEARING, CRANKSHAFT 1 (BROWN) (OPT)
  • 2
    1FK-11416-31-00 PLANE BEARING, CRANKSHAFT 1 (GREEN) (OPT)
    PLANE BEARING, CRANKSHAFT 1 (GREEN) (OPT)
  • 2
    1FK-11416-41-00 PLANE BEARING, CRANKSHAFT 1 (YELLOW) (OPT)
    PLANE BEARING, CRANKSHAFT 1 (YELLOW) (OPT)
  • 2
    1FK-11416-51-00 PLANE BEARING, CRANKSHAFT 1 (PINK) (OPT)
    PLANE BEARING, CRANKSHAFT 1 (PINK) (OPT)
  • 2
    1FK-11416-61-00 PLANE BEARING, CRANKSHAFT 1 (RED) (OPT)
    PLANE BEARING, CRANKSHAFT 1 (RED) (OPT)
  • 3
    4XY-11631-00-A0 PISTON (STD)
    PISTON (STD)
  • 3
    4XY-11635-00-00 PISTON (0.25MM O/S) (OPT)
    PISTON (0.25MM O/S) (OPT)
  • 3
    4XY-11636-00-00 PISTON (0.50MM O/S) (OPT)
    PISTON (0.50MM O/S) (OPT)
  • 4
    1NL-11610-00-00 PISTON RING SET (STD)
    PISTON RING SET (STD)
  • 4
    1NL-11610-10-00 PISTON RING SET (0.25MM O/S) (OPT)
    PISTON RING SET (0.25MM O/S) (OPT)
  • 4
    1NL-11610-20-00 PISTON RING SET (0.50MM O/S) (OPT)
    PISTON RING SET (0.50MM O/S) (OPT)
  • 5
    1FK-11633-00-00 PIN, PISTON
    PIN, PISTON
  • 6
    93450-19095-00 CIRCLIP
    CIRCLIP
  • 7
    26H-11650-00-00 CONNECTING ROD ASSY
    CONNECTING ROD ASSY
  • 8
    26H-11654-00-00 ...BOLT, CONNECTING ROD
    ...BOLT, CONNECTING ROD
  • 9
    90179-08327-00 ...NUT
    ...NUT
  • 10
    1FK-11656-00-00 PLANE BEARING, CONNECTING ROD (BLUE) (OPT)
    PLANE BEARING, CONNECTING ROD (BLUE) (OPT)
  • 10
    1FK-11656-10-00 PLANE BEARING, CONNECTING ROD (BLACK) (OPT)
    PLANE BEARING, CONNECTING ROD (BLACK) (OPT)
  • 10
    1FK-11656-20-00 PLANE BEARING, CONNECTING ROD (BROWN) (OPT)
    PLANE BEARING, CONNECTING ROD (BROWN) (OPT)
  • 10
    1FK-11656-30-00 PLANE BEARING, CONNECTING ROD (GREEN) (OPT)
    PLANE BEARING, CONNECTING ROD (GREEN) (OPT)
  • 10
    1FK-11656-40-00 PLANE BEARING, CONNECTING ROD (YELLOW) (OPT)
    PLANE BEARING, CONNECTING ROD (YELLOW) (OPT)
  • 10
    1FK-11656-50-00 PLANE BEARING, CONNECTING ROD (PINK) (OPT)
    PLANE BEARING, CONNECTING ROD (PINK) (OPT)
  • 11
    90280-05029-00 KEY, WOODRUFF
    KEY, WOODRUFF
  • 12
    90105-12005-00 BOLT, WASHER BASED
    BOLT, WASHER BASED
  • 13
    90201-121H0-00 WASHER, PLATE
    WASHER, PLATE
  • 14
    1FK-11500-10-00 BALANCER ASSY
    BALANCER ASSY
  • 15
    26H-11413-01-00 PLANE BEARING, BALANCE WEIGHT (BLUE) (OPT)
    PLANE BEARING, BALANCE WEIGHT (BLUE) (OPT)
  • 15
    26H-11413-11-00 PLANE BEARING, BALANCE WEIGHT (BLACK) (OPT)
    PLANE BEARING, BALANCE WEIGHT (BLACK) (OPT)
  • 15
    26H-11413-21-00 PLANE BEARING, BALANCE WEIGHT (BROWN) (OPT)
    PLANE BEARING, BALANCE WEIGHT (BROWN) (OPT)
  • 15
    26H-11413-31-00 PLANE BEARING, BALANCE WEIGHT (GREEN) (OPT)
    PLANE BEARING, BALANCE WEIGHT (GREEN) (OPT)
  • 15
    26H-11413-41-00 PLANE BEARING, BALANCE WEIGHT (YELLOW) (OPT)
    PLANE BEARING, BALANCE WEIGHT (YELLOW) (OPT)
  • 15
    26H-11413-51-00 PLANE BEARING, BALANCE WEIGHT (PINK) (OPT)
    PLANE BEARING, BALANCE WEIGHT (PINK) (OPT)
  • 15
    26H-11413-61-00 PLANE BEARING, BALANCE WEIGHT (RED) (OPT)
    PLANE BEARING, BALANCE WEIGHT (RED) (OPT)
