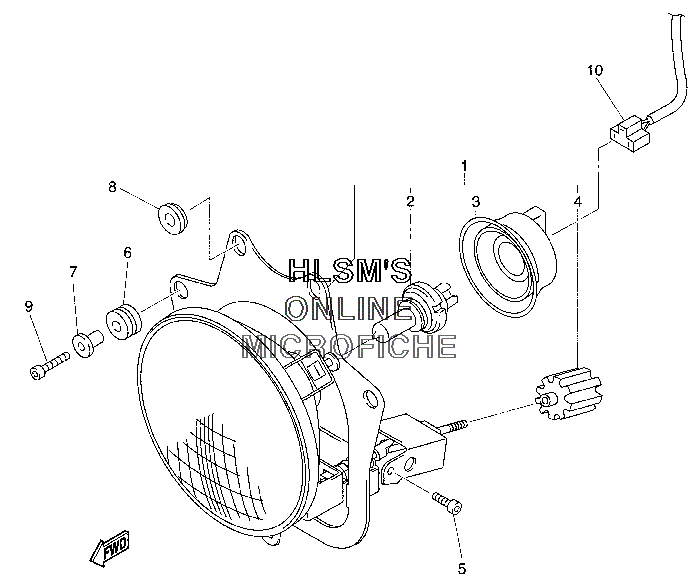

HEADLIGHT ASSY. для Yamaha XVZ 1300 TF ROYAL STAR VENTURE - 2000 года выпуска
-
№АртикулНазвание
-
14XY-84300-00-00 HEADLIGHT ASSYHEADLIGHT ASSY
-
22F9-84314-00-00 ...BULB (12V-60/55W) (H4) (HALOGEN)...BULB (12V-60/55W) (H4) (HALOGEN)
-
33SX-84397-00-00 ...COVER, SOCKET...COVER, SOCKET
-
44XY-8432M-00-00 ...KNOB ASSY...KNOB ASSY
-
591317-06010-00 BOLTBOLT
-
690480-14229-00 GROMMETGROMMET
-
790387-07391-00 COLLARCOLLAR
-
890480-01558-00 GROMMETGROMMET
-
991317-06025-00 BOLTBOLT
-
104XY-84359-01-00 CORD, HEADLIGHTCORD, HEADLIGHT
