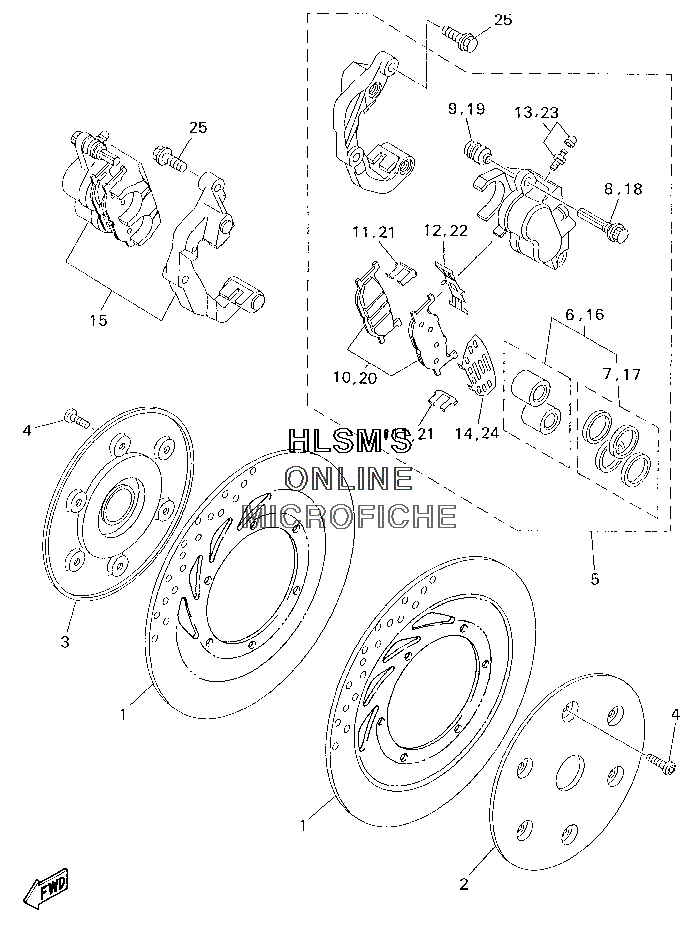

BRAKE CALIPER - FRONT для Yamaha XVZ 1300 TF ROYAL STAR VENTURE - 2000 года выпуска`
-
№АртикулНазвание
-
15BN-2582U-00-00 DISC, BRAKE (RIGHT)DISC, BRAKE (RIGHT)
-
24NK-2514A-00-00 RING, WHEEL 1 (LEFT)RING, WHEEL 1 (LEFT)
-
34NK-2515A-00-00 RING, WHEEL 2 (RIGHT)RING, WHEEL 2 (RIGHT)
-
490109-083G4-00 BOLTBOLT
-
54WM-2580T-00-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
63JB-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
73JB-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
84TT-25914-00-00 ...PIN, SLIDE...PIN, SLIDE
-
94TT-25937-00-00 ...BOOT 2...BOOT 2
-
104WM-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
114BP-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
123YX-25929-00-00 ...SPRING, ANTI RATTLE...SPRING, ANTI RATTLE
-
1351L-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
145BN-25827-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
154WM-2580U-00-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
163JB-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
173JB-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
184TT-25914-00-00 ...PIN, SLIDE...PIN, SLIDE
-
194TT-25937-00-00 ...BOOT 2...BOOT 2
-
204WM-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
214BP-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
223YX-25929-00-00 ...SPRING, ANTI RATTLE...SPRING, ANTI RATTLE
-
2351L-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
245BN-25827-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
2590105-10638-00 BOLT, WASHER BASEDBOLT, WASHER BASED
