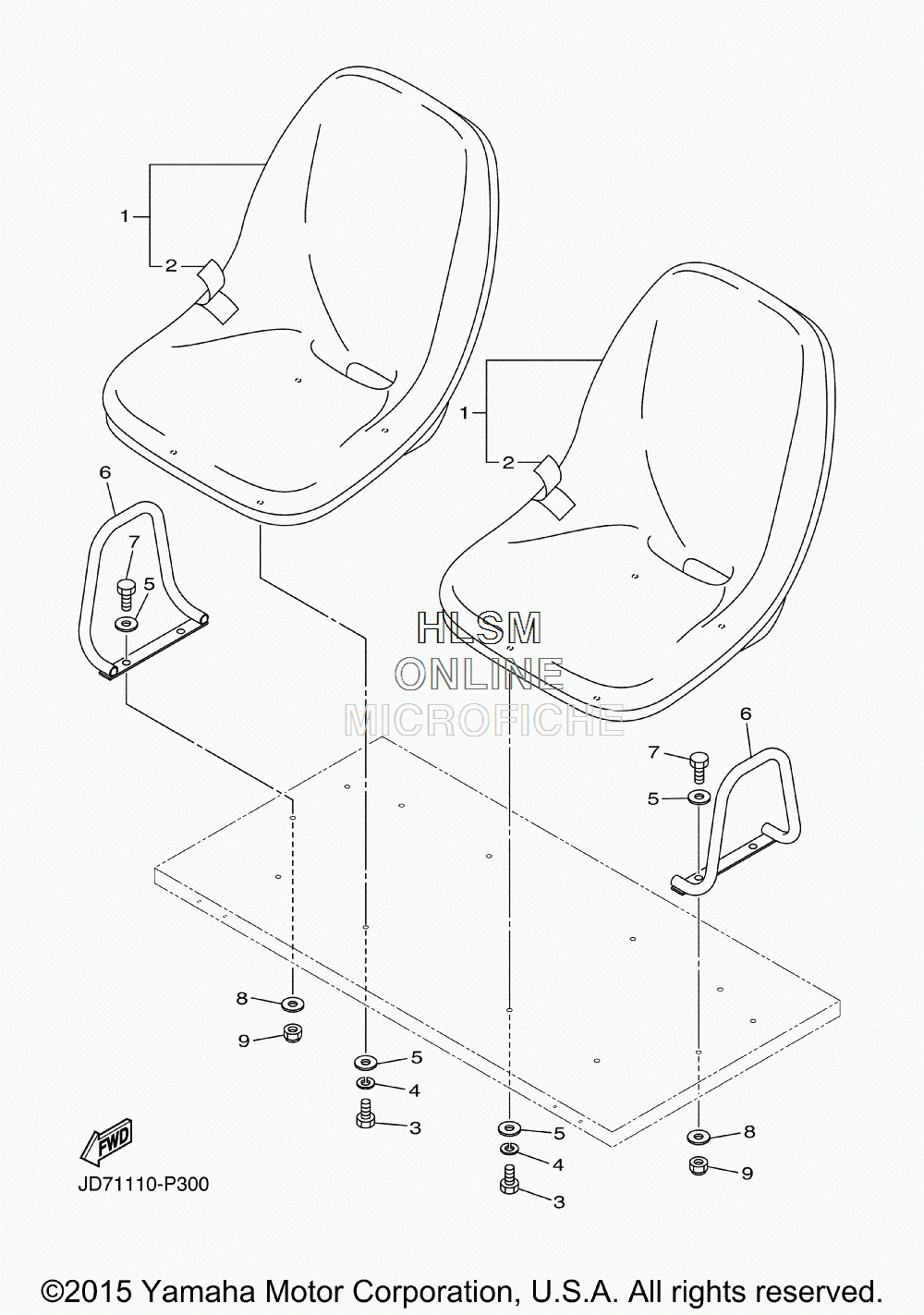

SEAT для Yamaha SUPER HAULER [YDRAX5] (JD71) - 2015 года выпуска`
-
№АртикулНазвание
-
15UG-F4710-00-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
25UG-F470F-00-00 ...SEAT COVER COMP....SEAT COVER COMP.
-
3JD7-K8385-00-00 BOLT 2BOLT 2
-
4JD7-K8439-00-00 WASHER, SEATWASHER, SEAT
-
5JD1-F2244-00-00 WASHER 2WASHER 2
-
6JD6-F474W-00-00 ASSIST,GRIP 2ASSIST,GRIP 2
-
7JD7-K8384-00-00 BOLTBOLT
-
8JD1-F2244-00-00 WASHER 2WASHER 2
-
9JD7-K7528-00-00 NUTNUT
