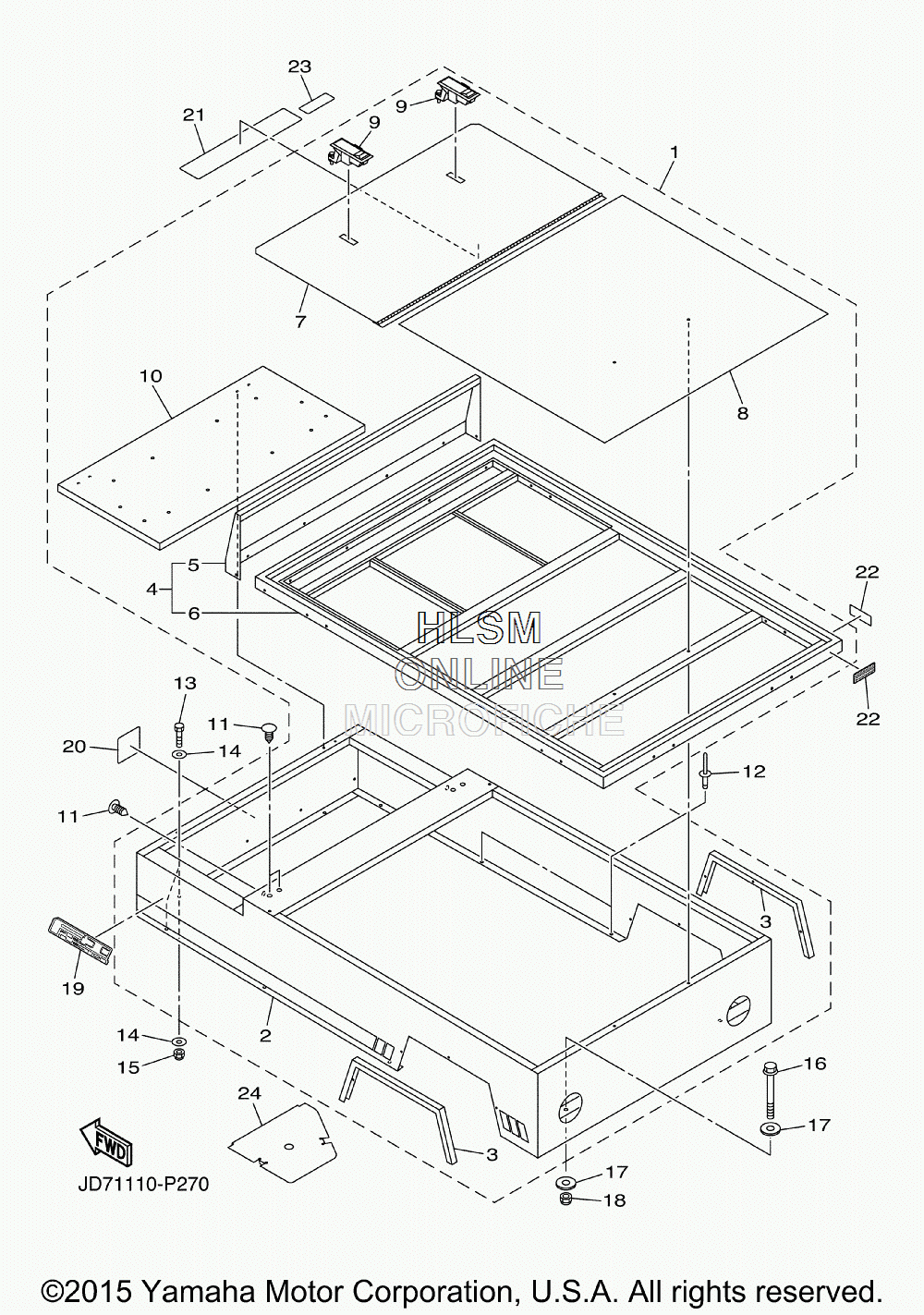

BODY 2 для Yamaha SUPER HAULER [YDRAX5] (JD71) - 2015 года выпуска
-
№АртикулНазвание
-
1JD7-K810H-00-00 REAR BODY COMP.REAR BODY COMP.
-
2JD7-K819H-00-00 ...SHELL, REAR BODY...SHELL, REAR BODY
-
3JD7-K8131-00-00 ...SUPPORT, FENDER...SUPPORT, FENDER
-
4JD7-K810M-00-00 ...REAR STORAGE BOX COMP....REAR STORAGE BOX COMP.
-
5JD7-K833D-00-00 ......GUSSET, STORAGE BOX......GUSSET, STORAGE BOX
-
6JD7-K818N-00-00 ......BED, BOX......BED, BOX
-
7JD7-K810N-00-00 ...REAR STORAGE LID COMP....REAR STORAGE LID COMP.
-
8JD7-K811U-00-00 ...LID 2...LID 2
-
9JD7-K7175-00-00 ...HOLDER, LATCH...HOLDER, LATCH
-
10JD7-K8480-00-00 ...SEAT BOTTOM COMPLETE 1...SEAT BOTTOM COMPLETE 1
-
11JD7-K8349-00-00 CAP, SUPPORT ROOFCAP, SUPPORT ROOF
-
1290267-48154-00 RIVET, BLINDRIVET, BLIND
-
13JD1-K7481-00-00 BOLTBOLT
-
14JD1-K7525-00-00 WASHER 1WASHER 1
-
15JD1-K7528-00-00 NUTNUT
-
1695802-08070-00 BOLT, FLANGEBOLT, FLANGE
-
17JD1-F2243-00-00 WASHER 1WASHER 1
-
18JD7-K7528-00-00 NUTNUT
-
19JC0-F1781-00-00 EMBLEM 1EMBLEM 1
-
20JW1-K7741-00-00 INDICATOR 1INDICATOR 1
-
21JW1-K8297-01-00 PLATE, CAUTION 1 (E,F)PLATE, CAUTION 1 (E,F)
-
22JD7-H357C-00-00 REFLECTORREFLECTOR
-
23JN6-H2377-00-00 LABELLABEL
-
24JD1-K811U-00-00 LID 2LID 2
