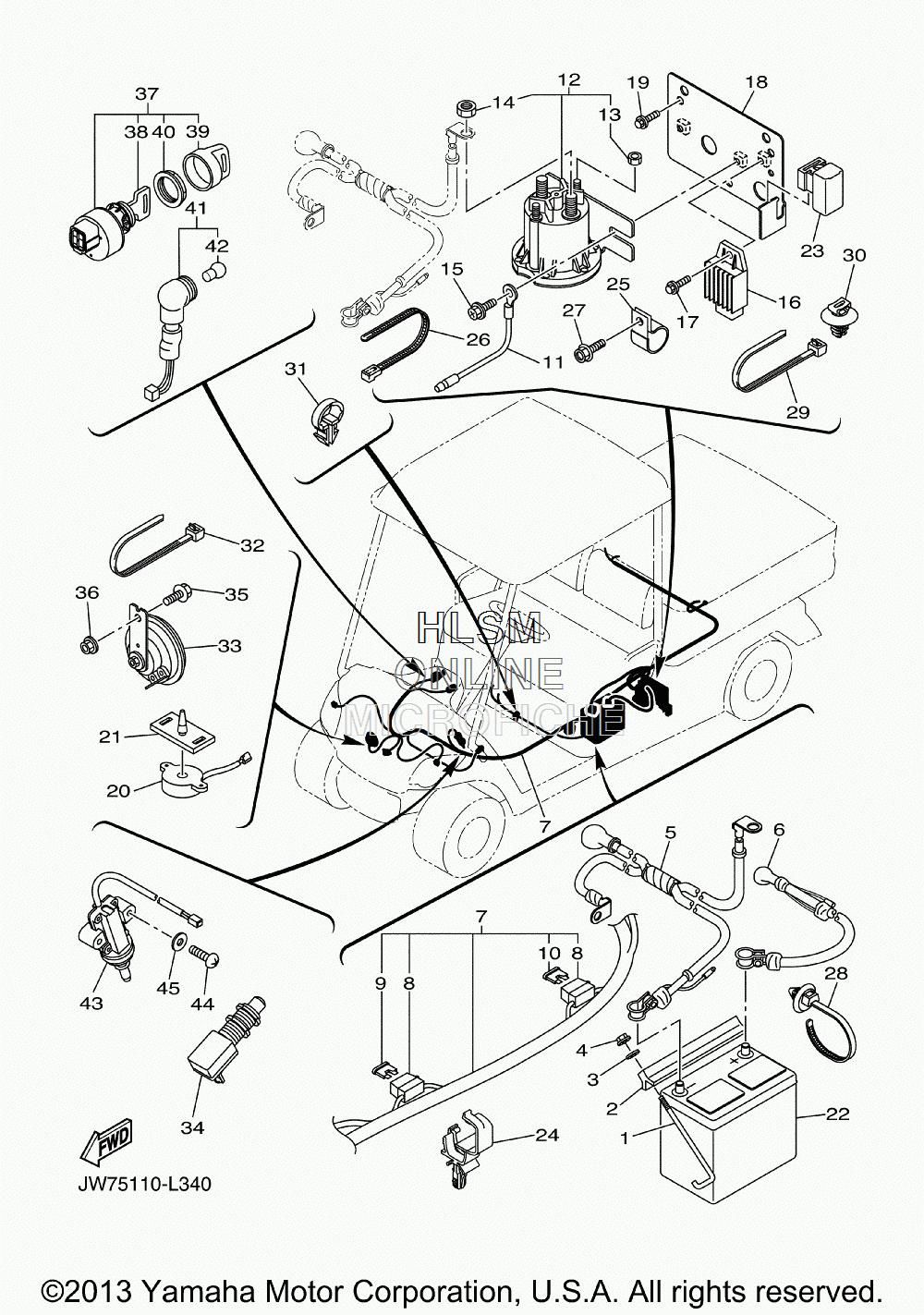

ELECTRICAL 2 для Yamaha ADVENTURER [YTF2X2] (JW75) - 2012 года выпуска
-
№АртикулНазвание
-
1JW1-H2133-00-00 SCREW, FITTINGSCREW, FITTING
-
2J55-H2136-00-00 PLATE, BATTERY FITTINGPLATE, BATTERY FITTING
-
392902-06200-00 WASHERWASHER
-
495702-06500-00 NUTNUT
-
5JW7-H1441-01-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
6JW7-H2115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
7JW7-H2590-10-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
8JR1-H2150-00-00 ...FUSE HOLDER ASSY...FUSE HOLDER ASSY
-
9JW6-H2151-00-00 ...FUSE (15A)...FUSE (15A)
-
10JW7-H2151-00-00 ...FUSE (25A)...FUSE (25A)
-
11JW6-H232Y-00-00 WIRE, EARTH LEADWIRE, EARTH LEAD
-
12JW1-H1950-00-00 RELAY ASSYRELAY ASSY
-
1390179-05807-00 ...NUT...NUT
-
1490179-08824-00 ...NUT...NUT
-
1590163-06005-00 SCREW, TAPPINGSCREW, TAPPING
-
16JF2-81910-10-00 VOLTAGE REGULATOR ASSYVOLTAGE REGULATOR ASSY
-
1790105-06870-00 BOLT, FLANGEBOLT, FLANGE
-
18JW6-F253B-01-00 STAY, RELAYSTAY, RELAY
-
1990105-088A3-00 BOLT, FLANGEBOLT, FLANGE
-
20JR1-H3383-02-00 BUZZERBUZZER
-
21JN6-H3386-01-00 STAY, BUZZERSTAY, BUZZER
-
234U8-81950-02-00 RELAY ASSYRELAY ASSY
-
2490464-20237-00 CLAMPCLAMP
-
2590461-14108-00 CLAMPCLAMP
-
2690464-09823-00 CLAMPCLAMP
-
2790105-06870-00 BOLT, FLANGEBOLT, FLANGE
-
2890464-20005-00 CLAMPCLAMP
-
2990464-48800-00 CLAMPCLAMP
-
305UG-F2465-10-00 HOLDERHOLDER
-
3190464-19815-00 CLAMPCLAMP
-
3290464-48800-00 CLAMPCLAMP
-
334LR-83371-11-00 HORNHORN
-
34JR6-H270X-00-00 SWITCHSWITCH
-
3595822-06016-00 BOLT, FLANGEBOLT, FLANGE
-
3695702-06500-00 NUTNUT
-
37JW6-H2510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
38JU6-H2511-10-00 ...KEY, MAIN SWITCH...KEY, MAIN SWITCH
-
395UG-H2579-00-00 ...CAP, KEY...CAP, KEY
-
40JU6-H2569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
41JN6-83530-00-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
42123-83516-21-00 ...BULB (12V-3.4W)...BULB (12V-3.4W)
-
43JF7-82817-20-00 SWITCHSWITCH
-
4498580-05525-00 SCREW, PAN HEADSCREW, PAN HEAD
-
4592902-05600-00 WASHER, PLATEWASHER, PLATE
