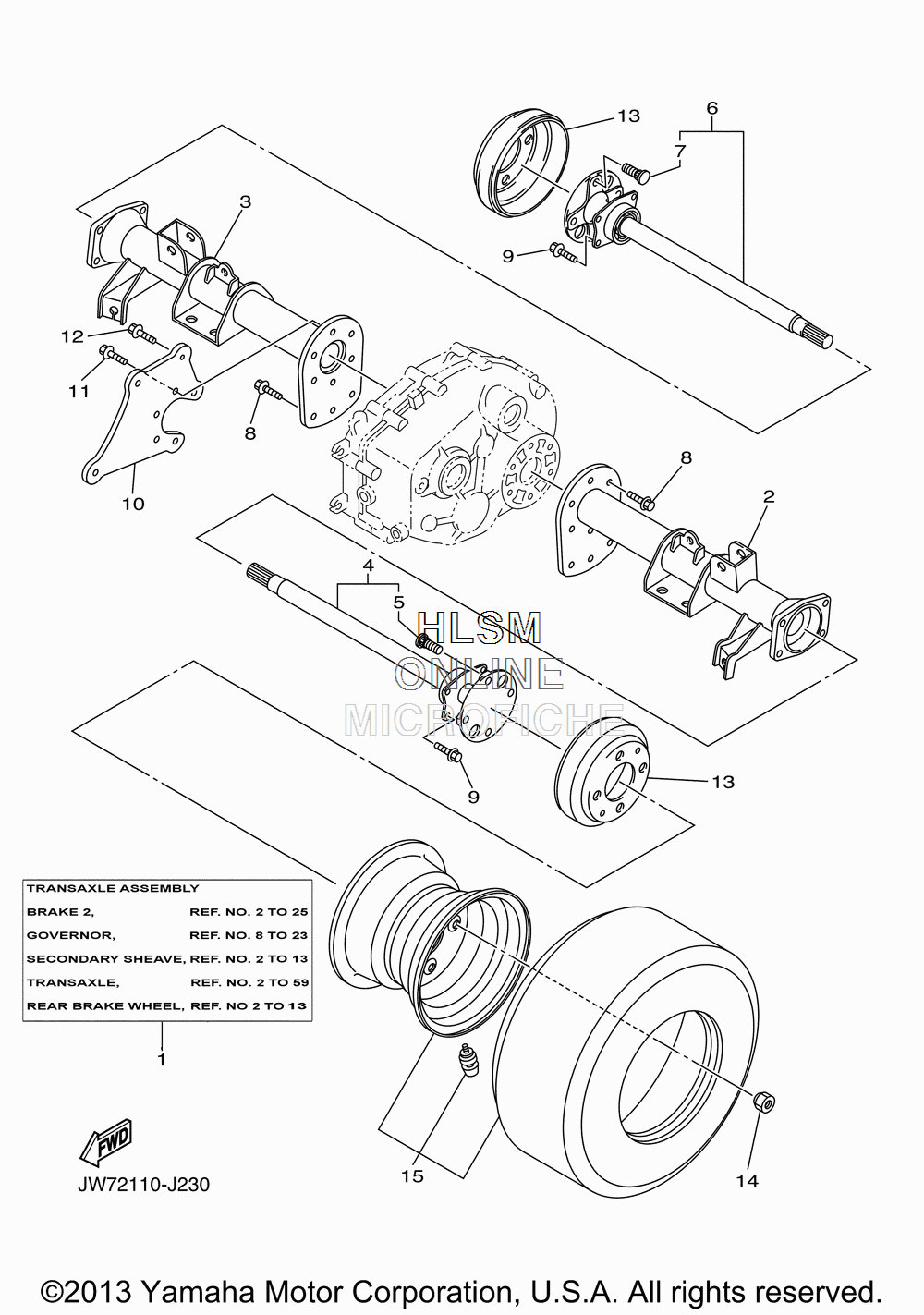

REAR AXLE W/ WHEEL- TRANSAXLE для Yamaha ADVENTURER [YTF2X2] (JW75) - 2012 года выпуска
-
№АртикулНазвание
-
1JW7-46300-02-00 TRANS AXLE ASSYTRANS AXLE ASSY
-
2JW7-46540-03-00 REAR AXLE HOUSING COMP.REAR AXLE HOUSING COMP.
-
3JW7-46550-03-00 REAR AXLE HOUSING COMP. 2REAR AXLE HOUSING COMP. 2
-
4JW7-46510-00-00 REAR AXLE SHAFT COMP.REAR AXLE SHAFT COMP.
-
590114-12004-00 ...BOLT, SERRATION...BOLT, SERRATION
-
6JW7-46520-00-00 REAR AXLE SHAFT COMP. 2REAR AXLE SHAFT COMP. 2
-
790114-12004-00 ...BOLT, SERRATION...BOLT, SERRATION
-
890105-081A7-00 BOLT, FLANGEBOLT, FLANGE
-
990105-082A0-00 BOLT, FLANGEBOLT, FLANGE
-
10JW7-22341-01-00 PLATE, GUIDE 1PLATE, GUIDE 1
-
1190105-08150-00 BOLT, FLANGEBOLT, FLANGE
-
1290105-06122-00 BOLT, FLANGEBOLT, FLANGE
-
13JU0-G6521-00-00 DRUMDRUM
-
1490179-12262-00 NUTNUT
-
15JW7-F5300-00-00 REAR WHEEL ASSYREAR WHEEL ASSY
