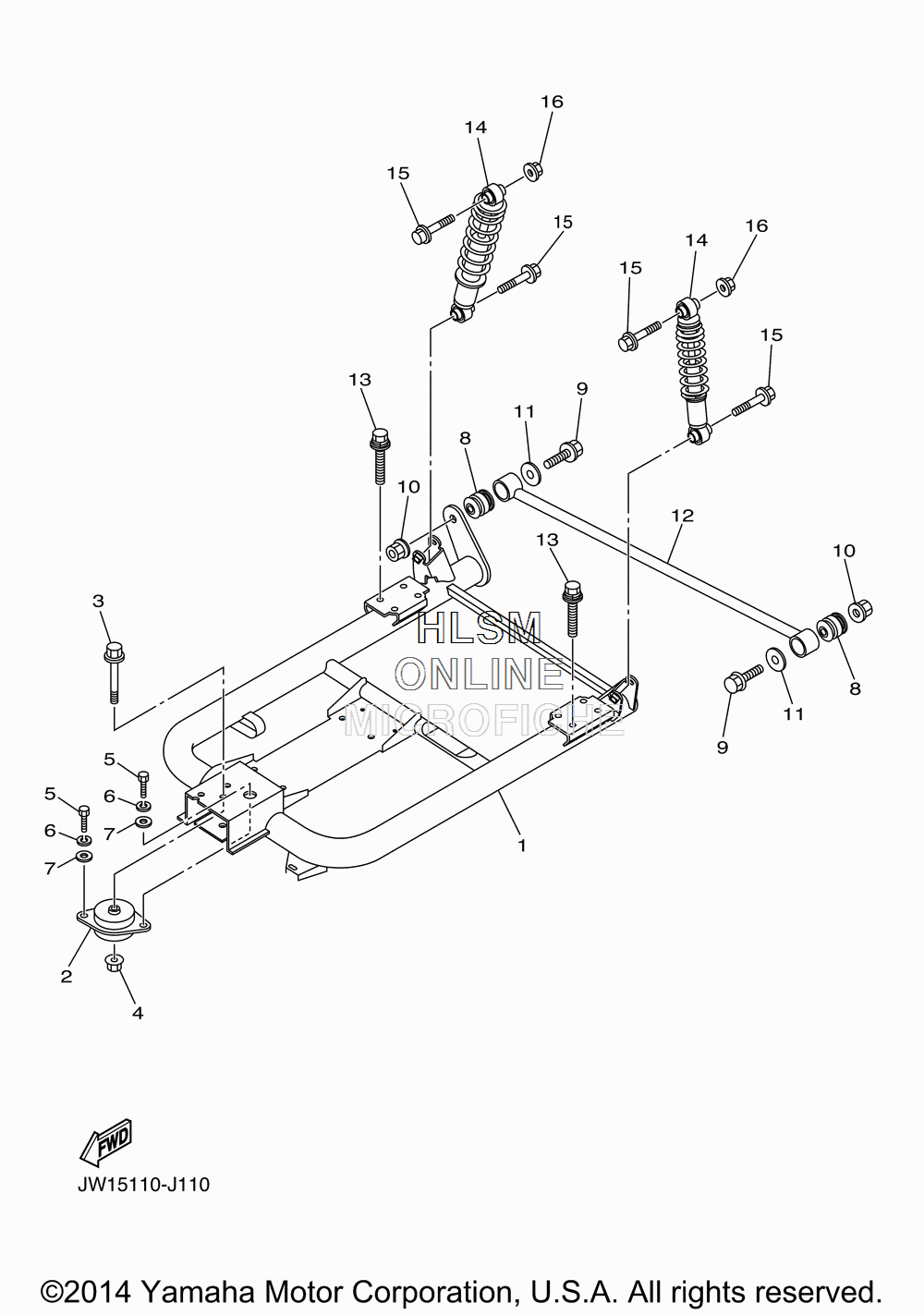

SUSPENSION - SWING ARM для Yamaha GOLF CAR GAS [DRIVE YDRAXP] (JW82) - 2011 года выпуска`
-
№АртикулНазвание
-
1JW1-F2110-10-00 REAR ARM COMP.REAR ARM COMP.
-
2JN6-F2123-10-00 BUSH 1BUSH 1
-
390105-13800-00 BOLT, FLANGEBOLT, FLANGE
-
490179-13800-00 NUTNUT
-
597012-10020-00 BOLTBOLT
-
692902-10100-00 WASHER, SPRINGWASHER, SPRING
-
792902-10600-00 WASHER, PLATEWASHER, PLATE
-
8JN6-F2124-10-00 BUSH 2BUSH 2
-
995812-12065-00 BOLT, FLANGEBOLT, FLANGE
-
1095602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1190201-128S4-00 WASHER, PLATEWASHER, PLATE
-
12JW1-F217G-10-00 ROD, CONNECTING 2ROD, CONNECTING 2
-
13JW1-F2277-00-00 BOLTBOLT
-
14JW1-F2210-10-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
1595812-10055-00 BOLT, FLANGEBOLT, FLANGE
-
1695602-10200-00 NUT, U FLANGENUT, U FLANGE
