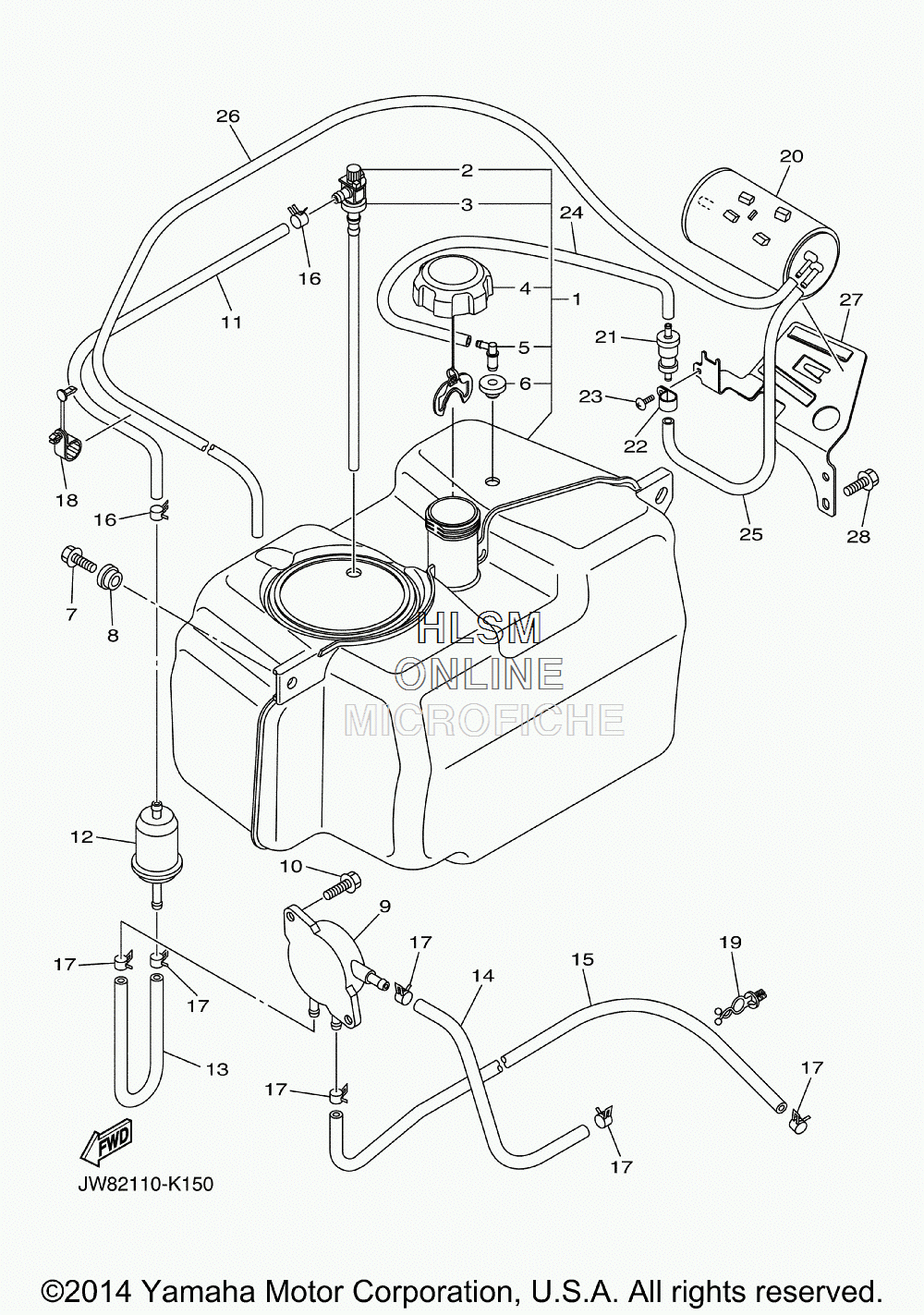

FUEL TANK для Yamaha GOLF CAR GAS [DRIVE YDRAXP] (JW82) - 2011 года выпуска`
-
№АртикулНазвание
-
1JW8-F4111-00-00 TANK, FUELTANK, FUEL
-
2JW1-F4300-00-00 ...FUEL PIPE JOINT...FUEL PIPE JOINT
-
3JU5-F4375-00-00 ...GROMMET...GROMMET
-
4JW1-F4610-00-00 ...CAP ASSY...CAP ASSY
-
5JW1-F4112-00-00 ...PIPE...PIPE
-
6JU5-F4375-00-00 ...GROMMET...GROMMET
-
7JW1-F1738-00-00 BOLTBOLT
-
890560-08251-00 SPACERSPACER
-
9JN6-F4410-11-00 FUEL PUMP ASSYFUEL PUMP ASSY
-
10JW1-F3394-00-00 BOLT, SPECIALBOLT, SPECIAL
-
11JW1-F4312-00-00 PIPE 2PIPE 2
-
12JN6-F4560-00-00 FILTER ASSYFILTER ASSY
-
13JW1-F4311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
14JW1-F4313-01-00 PIPE 3PIPE 3
-
15JW1-F4314-00-00 PIPE 4PIPE 4
-
1690467-12845-00 CLIP (RED)CLIP (RED)
-
1790467-10846-00 CLIP (GREEN)CLIP (GREEN)
-
18JW7-F312H-00-00 CLAMPCLAMP
-
1990464-12836-00 CLAMPCLAMP
-
207CC-F4170-00-00 CANISTER ASSYCANISTER ASSY
-
215PX-24180-00-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
2290461-15139-00 CLAMPCLAMP
-
2398502-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
24JW7-F4314-10-00 PIPE 4PIPE 4
-
25JW1-F4316-00-00 PIPE 6PIPE 6
-
26JW1-F4317-00-00 PIPE 7PIPE 7
-
27JW1-F419A-00-00 HOLDERHOLDER
-
28JW1-F1738-00-00 BOLTBOLT
