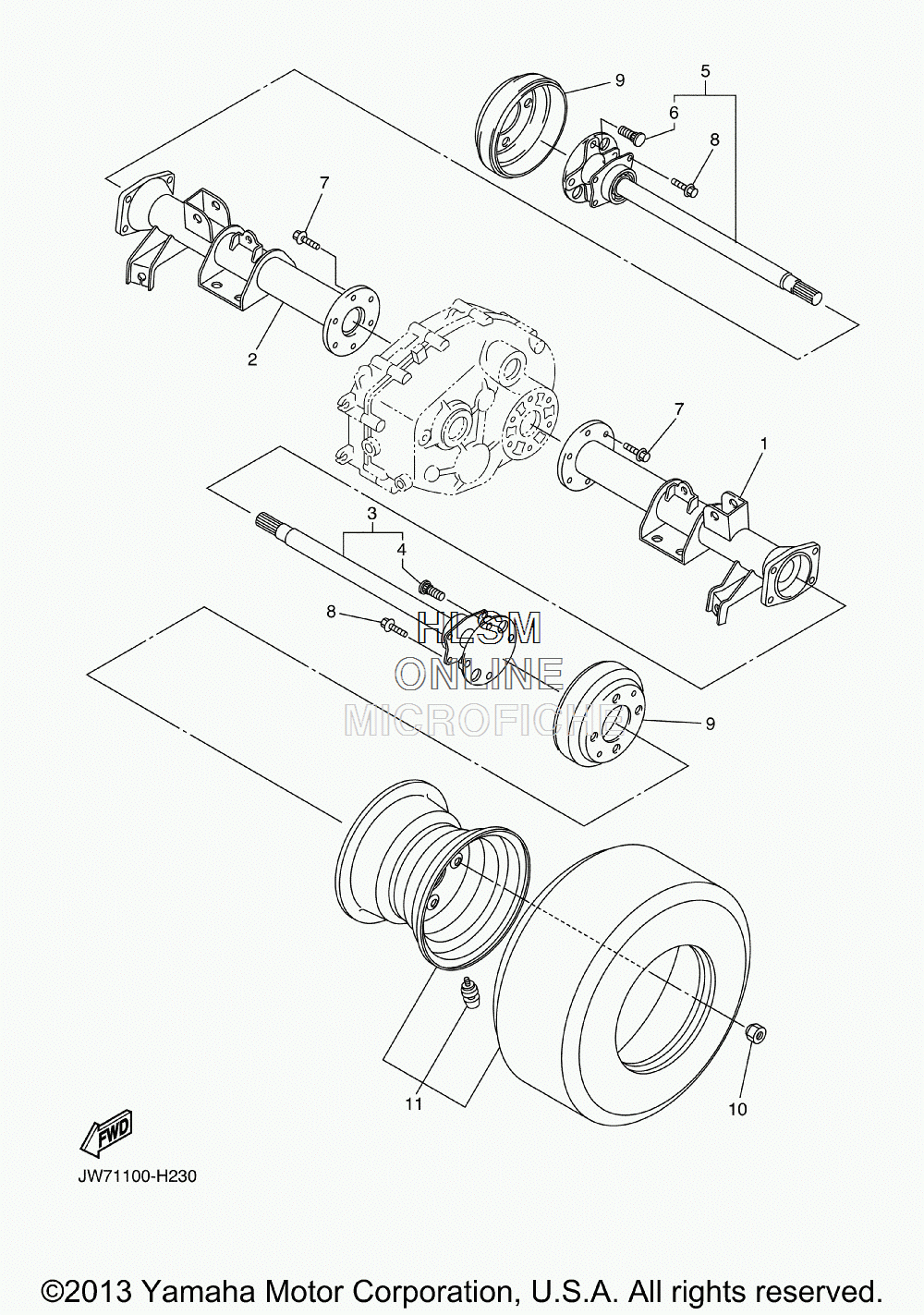

WHEEL - REAR W/ AXLE ASSY для Yamaha GOLF CAR [YTF2] (JW71) - 2009 года выпуска`
-
№АртикулНазвание
-
1JW7-46540-01-00 REAR AXLE HOUSING COMP.REAR AXLE HOUSING COMP.
-
2JW7-46550-01-00 REAR AXLE HOUSING COMP. 2REAR AXLE HOUSING COMP. 2
-
3JW7-46510-00-00 REAR AXLE SHAFT COMP.REAR AXLE SHAFT COMP.
-
490114-12004-00 ...BOLT, SERRATION...BOLT, SERRATION
-
5JW7-46520-00-00 REAR AXLE SHAFT COMP. 2REAR AXLE SHAFT COMP. 2
-
690114-12004-00 ...BOLT, SERRATION...BOLT, SERRATION
-
790105-081A7-00 BOLT, FLANGEBOLT, FLANGE
-
890105-082A0-00 BOLT, FLANGEBOLT, FLANGE
-
9JU0-G6521-00-00 DRUMDRUM
-
1090179-12262-00 NUTNUT
-
11JW7-F5300-00-00 REAR WHEEL ASSYREAR WHEEL ASSY
