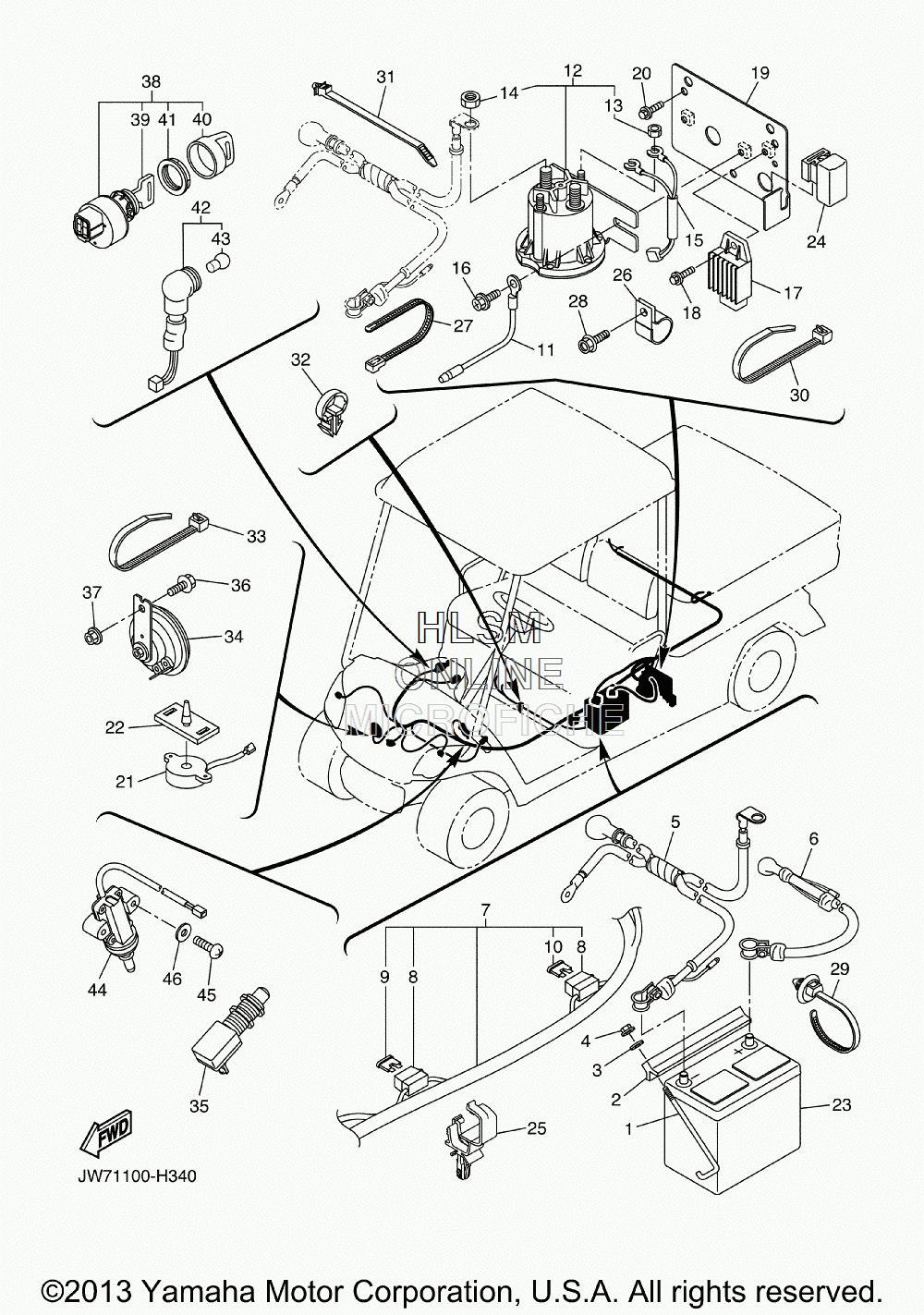

ELECTRICAL 2 для Yamaha GOLF CAR [YTF2] (JW71) - 2009 года выпуска`
-
№АртикулНазвание
-
1JW1-H2133-00-00 SCREW, FITTINGSCREW, FITTING
-
2J55-H2136-00-00 PLATE, BATTERY FITTINGPLATE, BATTERY FITTING
-
392902-06200-00 .WASHER.WASHER
-
495702-06500-00 NUT, FLANGENUT, FLANGE
-
5JW7-H1441-00-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
6JW7-H2115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
7JW7-H2590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
8JR1-H2150-00-00 ...FUSE HOLDER ASSY...FUSE HOLDER ASSY
-
9JW6-H2151-00-00 ...FUSE (15A)...FUSE (15A)
-
10JW7-H2151-00-00 ...FUSE (25A)...FUSE (25A)
-
11JW6-H232Y-00-00 WIRE, EARTH LEADWIRE, EARTH LEAD
-
12JW1-H1950-00-00 RELAY ASSYRELAY ASSY
-
1390179-05807-00 ...NUT...NUT
-
1490179-08824-00 ...NUT...NUT
-
15JN6-H2105-00-00 WIRE HARNESSWIRE HARNESS
-
1690163-06005-00 SCREW, TAPPINGSCREW, TAPPING
-
17JF2-81910-01-00 VOLTAGE REGULATOR ASSYVOLTAGE REGULATOR ASSY
-
1890105-06870-00 BOLT, FLANGEBOLT, FLANGE
-
19JW6-F253B-00-00 STAY, RELAYSTAY, RELAY
-
2090105-088A3-00 BOLT, FLANGEBOLT, FLANGE
-
21JR1-H3383-01-00 BUZZERBUZZER
-
22JN6-H3386-01-00 STAY, BUZZERSTAY, BUZZER
-
244U8-81950-02-00 RELAY ASSYRELAY ASSY
-
2590464-20237-00 CLAMPCLAMP
-
2690461-14108-00 CLAMPCLAMP
-
2790464-09823-00 CLAMPCLAMP
-
2890105-06870-00 BOLT, FLANGEBOLT, FLANGE
-
2990464-20005-00 CLAMPCLAMP
-
3090464-48800-00 CLAMPCLAMP
-
3190464-25800-00 CLAMPCLAMP
-
3290464-19815-00 CLAMPCLAMP
-
3390464-48800-00 CLAMPCLAMP
-
344LR-83371-11-00 HORNHORN
-
35JR6-H270X-00-00 SWITCHSWITCH
-
3695822-06016-00 BOLT, FLANGEBOLT, FLANGE
-
3795702-06500-00 NUT, FLANGENUT, FLANGE
-
38JW6-H2510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
39JU6-H2511-10-00 ...KEY, MAIN SWITCH...KEY, MAIN SWITCH
-
405UG-H2579-00-00 ...CAP, KEY...CAP, KEY
-
41JU6-H2569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
42JN6-83530-00-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
43123-83516-21-00 ...BULB (12V-3.4W)...BULB (12V-3.4W)
-
44JF7-82817-20-00 SWITCHSWITCH
-
4598502-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
4692902-05600-00 WASHER, PLATEWASHER, PLATE
