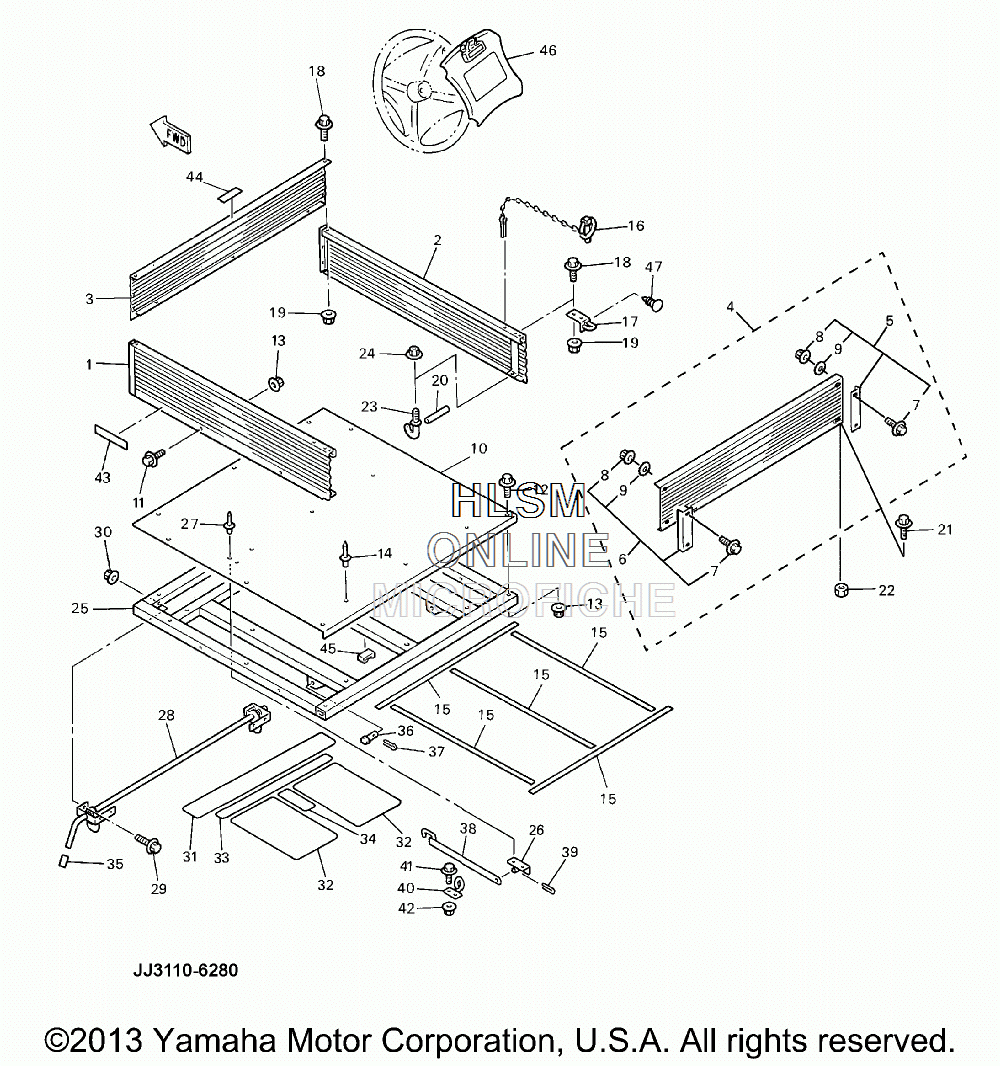

CARRIER для Yamaha UTILITY CAR [G11AP] (JJ31) - 1996 года выпуска
-
№АртикулНазвание
-
1JJ3-K810F-00-00 SIDE PANEL COMP. (LH)SIDE PANEL COMP. (LH)
-
2JJ3-K810G-00-00 SIDE PANEL COMP. (RH)SIDE PANEL COMP. (RH)
-
3JJ3-K7782-00-00 PANEL, DASH 2PANEL, DASH 2
-
4JJ3-K810N-01-00 REAR STORAGE LID COMP.REAR STORAGE LID COMP.
-
5JJ3-K824E-01-00 ...TRIM, REAR BODY 1...TRIM, REAR BODY 1
-
6JJ3-K824F-01-00 ...TRIM, REAR BODY 2...TRIM, REAR BODY 2
-
790119-08808-00 ......BOLT, HEX.......BOLT, HEX.
-
89560P-08200-00 ......NUT......NUT
-
990201-088S2-00 ......WASHER, PLATE......WASHER, PLATE
-
10JJ3-K8117-00-00 PLATE 1PLATE 1
-
1190119-08038-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1290119-08925-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1395617-08200-00 NUT, U-FLANGE (95607-08200-00)NUT, U-FLANGE (95607-08200-00)
-
1490267-64844-00 RIVET, BLINDRIVET, BLIND
-
15JJ3-K821A-00-00 PAD, BODY MOUNTING 1PAD, BODY MOUNTING 1
-
16JJ3-K8156-00-00 STOPPER, LOCKSTOPPER, LOCK
-
17JJ3-K8317-00-00 RING, HOOKRING, HOOK
-
1890119-06908-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1995607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
20JJ3-K8384-00-00 BOLTBOLT
-
2197017-06020-00 BOLTBOLT
-
2295380-06700-00 NUTNUT
-
2395380-06700-00 NUTNUT
-
2495617-08200-00 NUT, U-FLANGE (95607-08200-00)NUT, U-FLANGE (95607-08200-00)
-
25JJ3-K818N-00-00 BED, BOXBED, BOX
-
26JJ3-K8376-00-00 SUPPORT 2SUPPORT 2
-
2790267-64844-00 RIVET, BLINDRIVET, BLIND
-
28JJ3-K8380-02-00 LOCK ASSEMBLYLOCK ASSEMBLY
-
2995807-08020-00 BOLT, FLANGEBOLT, FLANGE
-
3095617-08200-00 NUT, U-FLANGE (95607-08200-00)NUT, U-FLANGE (95607-08200-00)
-
31JJ3-K8253-20-00 PAD, SILENCER 3PAD, SILENCER 3
-
32JJ3-K8254-20-00 PAD, SILENCER 4PAD, SILENCER 4
-
33JJ3-K8255-00-00 PAD, SILENCER 5PAD, SILENCER 5
-
34JJ3-K8258-00-00 PAD, SILENCER 8PAD, SILENCER 8
-
35JJ3-K818M-00-00 CAP, PROTECTOR END 4CAP, PROTECTOR END 4
-
3690240-13808-00 PIN, CLEVISPIN, CLEVIS
-
3791490-30030-00 PIN, COTTERPIN, COTTER
-
38JJ3-K8158-01-00 ROD, INSPECTION LIDROD, INSPECTION LID
-
3991490-20025-00 PIN, COTTERPIN, COTTER
-
40JJ3-K8369-00-00 PIN, LEVERPIN, LEVER
-
4190119-06908-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4295607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
43JJ3-K7764-01-00 LABEL, WARNING 4LABEL, WARNING 4
-
44JJ3-K7766-01-00 LABEL, WARNING 6LABEL, WARNING 6
-
45JJ3-K815H-00-00 DAMPER, LOCKDAMPER, LOCK
-
46JN3-K8370-00-00 HOLDER ASSEMBLYHOLDER ASSEMBLY
-
4790338-05830-00 PLUGPLUG
