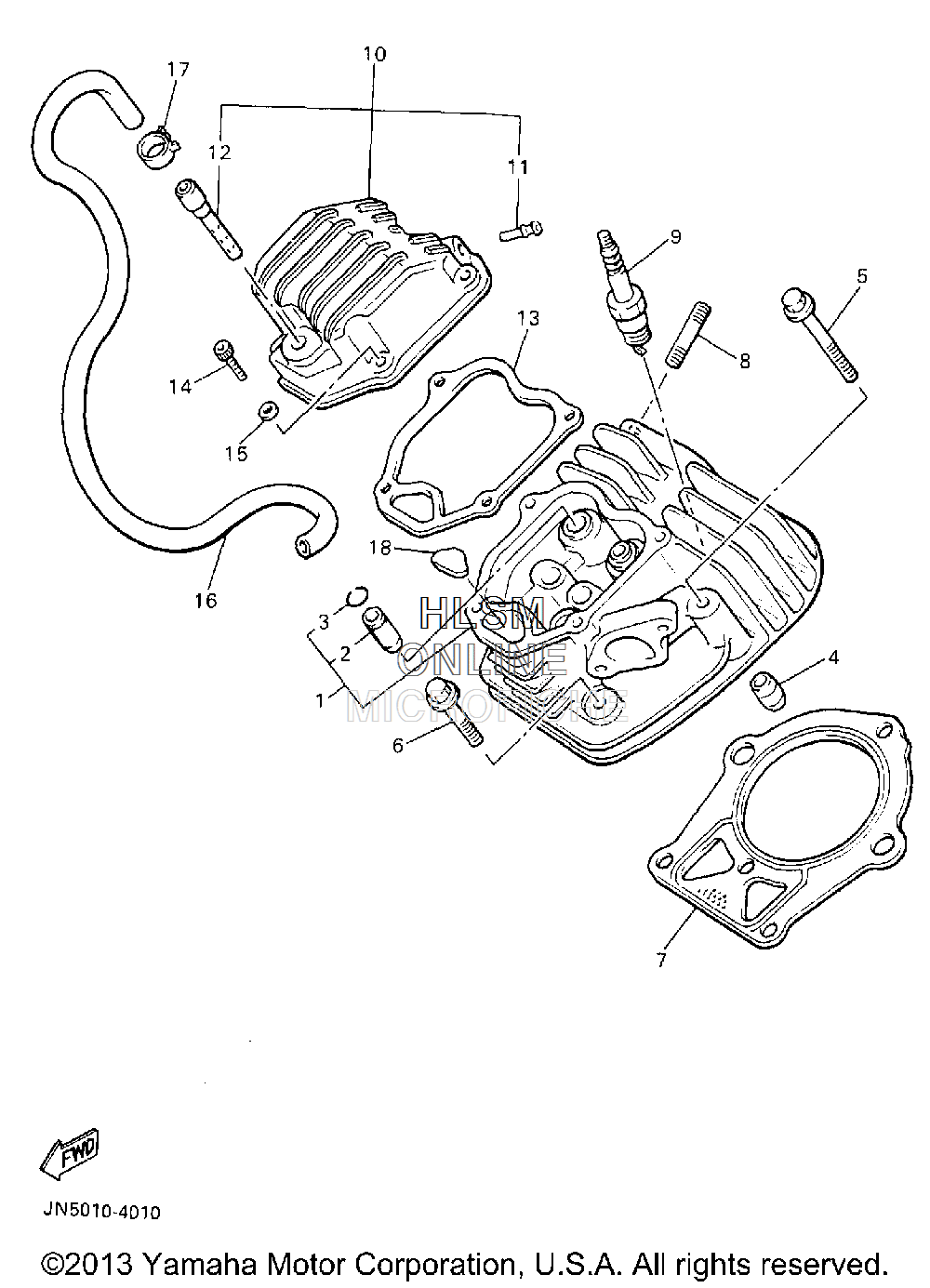

CYLINDER для Yamaha UTILITY CAR [G11AP] (JJ31) - 1996 года выпуска`
-
№АртикулНазвание
-
1JN5-11102-00-00 CYLINDER HEAD ASSEMBLYCYLINDER HEAD ASSEMBLY
-
27KY-11133-10-00 ...GUIDE, INTAKE VALVE...GUIDE, INTAKE VALVE
-
393440-10085-00 ...CIRCLIP...CIRCLIP
-
499510-12016-00 PIN, DOWELPIN, DOWEL
-
595817-08070-00 BOLT, FLANGEBOLT, FLANGE
-
695817-08045-00 BOLT, FLANGEBOLT, FLANGE
-
7JN5-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
895617-08618-00 BOLT, STUD (95627-08618-00)BOLT, STUD (95627-08618-00)
-
9NGK-BPR2E-S0-00 PLUG, SPARK (NGK-BPR2ES)PLUG, SPARK (NGK-BPR2ES)
-
10JN5-11191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
11J38-11116-00-00 ...JOINT, BREATHER...JOINT, BREATHER
-
12JN5-11116-00-00 ...JOINT, BREATHER...JOINT, BREATHER
-
13JN3-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
1491317-06025-00 BOLTBOLT
-
1592907-06600-00 WASHER, PLATEWASHER, PLATE
-
1690445-130F8-00 HOSEHOSE
-
1790467-12052-00 CLIPCLIP
-
18JN5-11163-00-00 ELEMENTELEMENT
