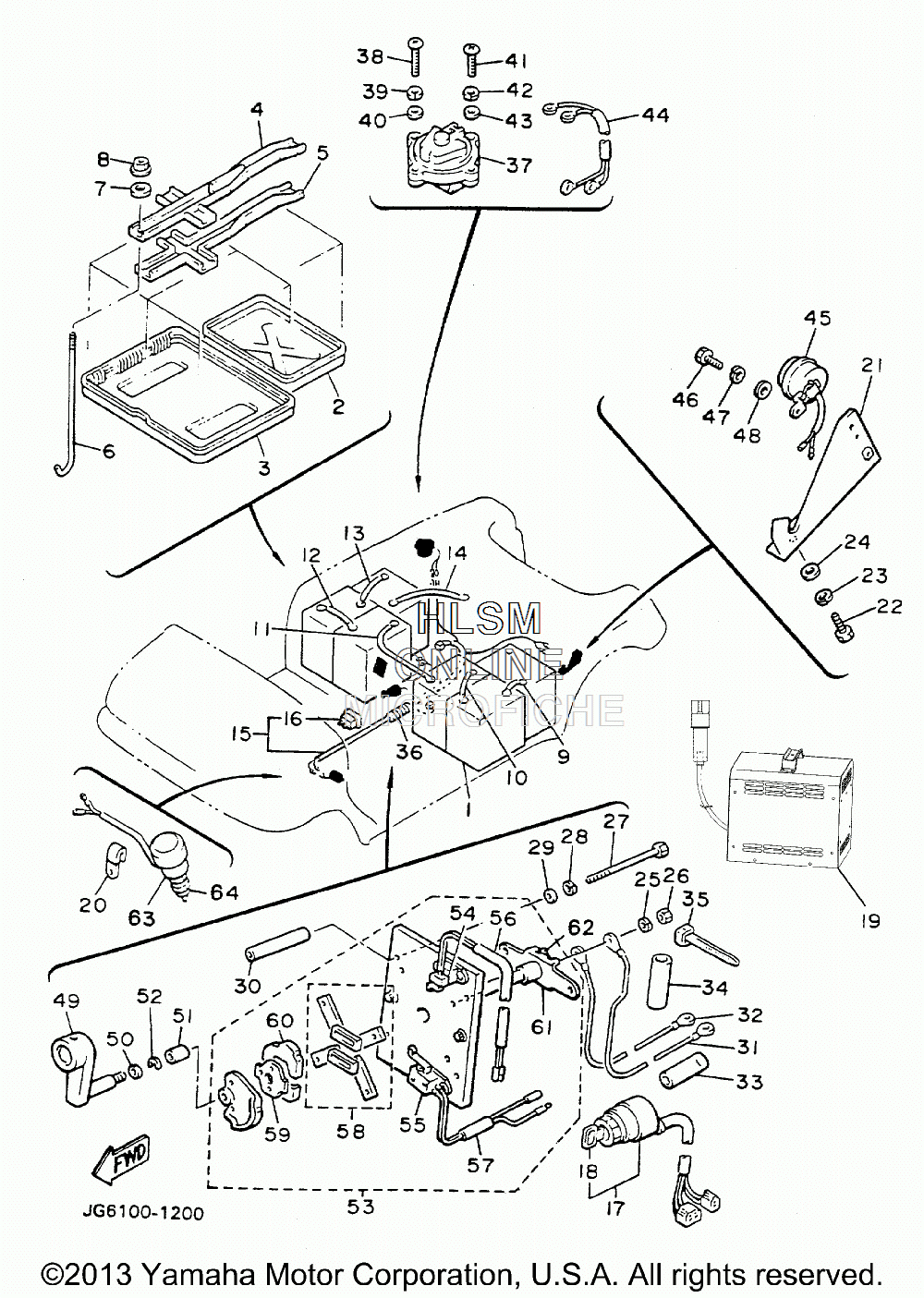

ELECTRICAL для Yamaha GOLF CAR ELECTRIC [G9EH1] (JG6) - 1992 года выпуска
-
№АртикулНазвание
-
1JN8-H2110-B0-00 BATTERY, 6V, BCI GC-2 (CALIF ONLY) (CALL PARTS DEPT.)BATTERY, 6V, BCI GC-2 (CALIF ONLY) (CALL PARTS DEPT.)
-
2J56-H2122-00-00 SEAT, BATTERYSEAT, BATTERY
-
3J56-H2123-00-00 SEAT, BATTERYSEAT, BATTERY
-
4J41-82136-01-00 PLATE, BATTERY FITTINGPLATE, BATTERY FITTING
-
5J41-82121-00-00 PAD, BATTERYPAD, BATTERY
-
6J14-82133-01-00 SCREW, FITTINGSCREW, FITTING
-
790201-06067-00 WASHER, PLATEWASHER, PLATE
-
895701-06500-00 NUT, FLANGENUT, FLANGE
-
9J56-H2127-00-00 WIRE, LEAD 2WIRE, LEAD 2
-
10J56-H2117-00-00 WIRE, LEADWIRE, LEAD
-
11J56-H2149-00-00 WIRE, LEAD 3WIRE, LEAD 3
-
12J56-H2127-00-00 WIRE, LEAD 2WIRE, LEAD 2
-
13J56-H2117-00-00 WIRE, LEADWIRE, LEAD
-
14J56-H2116-00-00 WIRE, MINUS LEAD (J14-82116-00-WIRE, MINUS LEAD (J14-82116-00-
-
15JG6-82590-00-00 WIRE HARNESS ASSEMBLYWIRE HARNESS ASSEMBLY
-
1642X-82151-00-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
17J55-82510-00-00 MAIN SWITCH ASSEMBLYMAIN SWITCH ASSEMBLY
-
18J17-82511-20-00 ...KEY, MAIN SWITCH...KEY, MAIN SWITCH
-
19JN4-H2107-00-00 CHARGER, BATTERY, 36V (AC120V)CHARGER, BATTERY, 36V (AC120V)
-
2090465-06038-00 CLAMPCLAMP
-
21JG5-H2153-00-00 STAY, FUSE HOLDERSTAY, FUSE HOLDER
-
2297011-06020-00 BOLTBOLT
-
2392990-06100-00 WASHER, SPRINGWASHER, SPRING
-
2492990-06600-00 WASHER, PLATEWASHER, PLATE
-
2592990-06100-00 WASHER, SPRINGWASHER, SPRING
-
2695303-06600-00 NUTNUT
-
2797001-06080-00 BOLTBOLT
-
2892990-06100-00 WASHER, SPRINGWASHER, SPRING
-
2992990-06600-00 WASHER, PLATEWASHER, PLATE
-
3090387-061M8-00 COLLARCOLLAR
-
31J56-H2531-00-00 WIRE, LEADWIRE, LEAD
-
32J56-H2531-00-00 WIRE, LEADWIRE, LEAD
-
33J56-H7198-00-00 TUBE 2 (J22-87197-00-00)TUBE 2 (J22-87197-00-00)
-
34J56-H7197-00-00 TUBE 2TUBE 2
-
3590464-13073-00 CLAMPCLAMP
-
36J56-H7196-00-00 TUBE 1TUBE 1
-
37J22-86181-00-00 RECEPTACLERECEPTACLE
-
3898506-05035-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3992906-05100-00 WASHER, SPRINGWASHER, SPRING
-
4092906-05600-00 WASHER, PLATEWASHER, PLATE
-
4198506-05016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
4292906-05100-00 WASHER, SPRINGWASHER, SPRING
-
4392906-05600-00 WASHER, PLATEWASHER, PLATE
-
44J41-82542-00-00 WIRE, LEADWIRE, LEAD
-
45J14-83383-01-00 BUZZERBUZZER
-
4697011-06016-00 BOLTBOLT
-
4792990-06100-00 WASHER, SPRINGWASHER, SPRING
-
4892990-06600-00 WASHER, PLATEWASHER, PLATE
-
49J41-46381-00-00 KNOB, SHIFTKNOB, SHIFT
-
5090201-12474-00 WASHER, PLATEWASHER, PLATE
-
51J41-46394-00-00 JOINTJOINT
-
5299001-08600-00 CIRCLIPCIRCLIP
-
53J41-82917-01-00 SWITCH (FWD/REV SWITCH)SWITCH (FWD/REV SWITCH)
-
54J41-82617-00-00 ...SWITCH...SWITCH
-
55J41-82817-00-00 ...MICRO SWITCH...MICRO SWITCH
-
56J41-8253R-00-00 ...WIRE, LEAD 1...WIRE, LEAD 1
-
57J41-8253T-00-00 ...WIRE, LEAD 2...WIRE, LEAD 2
-
58J41-8250H-09-00 ...CONTACT PLATE COMP...CONTACT PLATE COMP
-
59J41-82388-00-00 ...PLATE...PLATE
-
60J41-82915-00-00 ...HOLDER 1...HOLDER 1
-
61J41-8250T-09-00 ...PLATE ACTION COMP...PLATE ACTION COMP
-
6291609-40040-00 ...PIN, SPRING...PIN, SPRING
-
63J41-82550-00-00 STOP SWITCH ASSEMBLYSTOP SWITCH ASSEMBLY
-
64JF2-82532-00-00 ...CAP, RUBBER...CAP, RUBBER
