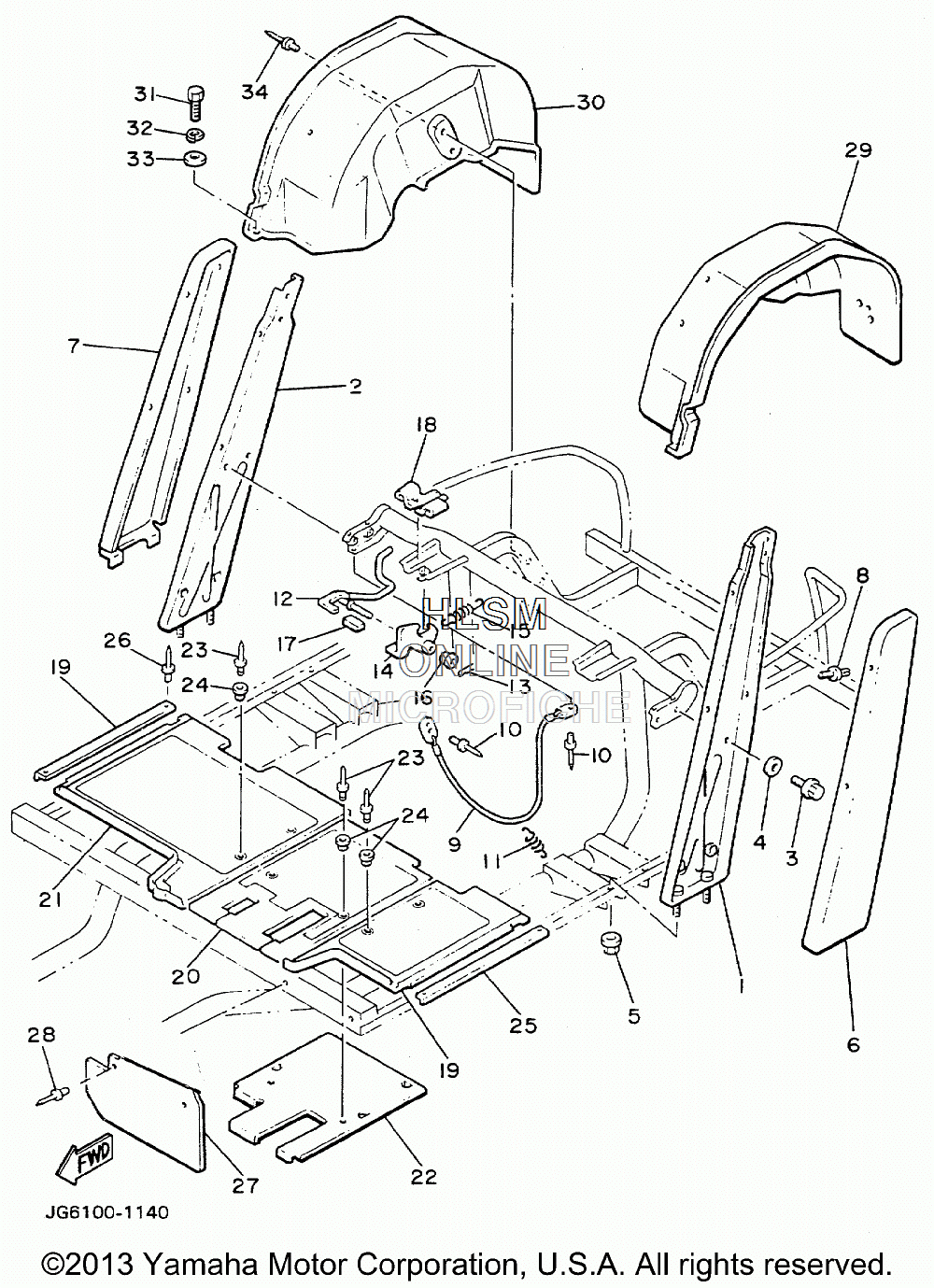

BODY FITTING для Yamaha GOLF CAR ELECTRIC [G9EH1] (JG6) - 1992 года выпуска`
-
№АртикулНазвание
-
1JG5-K813A-00-00 PILLAR, SIDE (L.H)PILLAR, SIDE (L.H)
-
2JG5-K813E-00-00 PILLAR, SIDE (R.H)PILLAR, SIDE (R.H)
-
395811-08016-00 BOLT, FLANGEBOLT, FLANGE
-
490201-08730-00 WASHER, PLATEWASHER, PLATE
-
595701-06500-00 NUT, FLANGENUT, FLANGE
-
6J55-K813F-00-00 COVER, SIDE PILLAR (L.H)COVER, SIDE PILLAR (L.H)
-
7J55-K813G-00-00 COVER, SIDE PILLAR (R.H)COVER, SIDE PILLAR (R.H)
-
890267-63134-00 RIVET, BLINDRIVET, BLIND
-
9J38-78229-00-00 WIRE, SEAT STOPPERWIRE, SEAT STOPPER
-
1090267-40087-00 RIVET, BLINDRIVET, BLIND
-
1190507-08037-00 SPRING, TENSIONSPRING, TENSION
-
12J38-7814G-01-00 LEVER, BODY LOCKLEVER, BODY LOCK
-
1390468-18008-00 CLIPCLIP
-
14J38-7814H-01-00 HOOK, BODY LOCKHOOK, BODY LOCK
-
1590506-18374-00 SPRING, TENSIONSPRING, TENSION
-
16J38-7814L-01-00 BUSH, LEVER ENDBUSH, LEVER END
-
17J38-7815H-00-00 DAMPER, LOCKDAMPER, LOCK
-
18J38-78221-00-00 SHEET, BODY MOUNTING 1SHEET, BODY MOUNTING 1
-
19J55-K8233-00-00 MAT, MAIN FLOOR 3MAT, MAIN FLOOR 3
-
20J55-K8234-00-00 MAT, MAIN FLOOR 4MAT, MAIN FLOOR 4
-
21J55-K8235-00-00 SHEET, MAIN FLOORSHEET, MAIN FLOOR
-
22J55-K8271-00-00 SERVICE LID, PEDALSERVICE LID, PEDAL
-
2390267-48086-00 RIVET, BLIND (4.8X19) (BLACK)RIVET, BLIND (4.8X19) (BLACK)
-
2490387-062M9-00 COLLARCOLLAR
-
25J38-78215-00-00 PLATE, SIDE TRIMPLATE, SIDE TRIM
-
2690267-40115-00 RIVET, BLINDRIVET, BLIND
-
27JG5-K8187-00-00 FLAP, FRONT FENDERFLAP, FRONT FENDER
-
2890267-48101-00 RIVET, BLINDRIVET, BLIND
-
29JG5-K8191-00-00 PANEL, REAR FENDER 1PANEL, REAR FENDER 1
-
30J55-K8192-00-00 PANEL, REAR FENDER 2PANEL, REAR FENDER 2
-
3197016-06016-00 BOLTBOLT
-
3292906-06100-00 WASHER, SPRINGWASHER, SPRING
-
3392906-06600-00 WASHERWASHER
-
3490267-48101-00 RIVET, BLINDRIVET, BLIND
