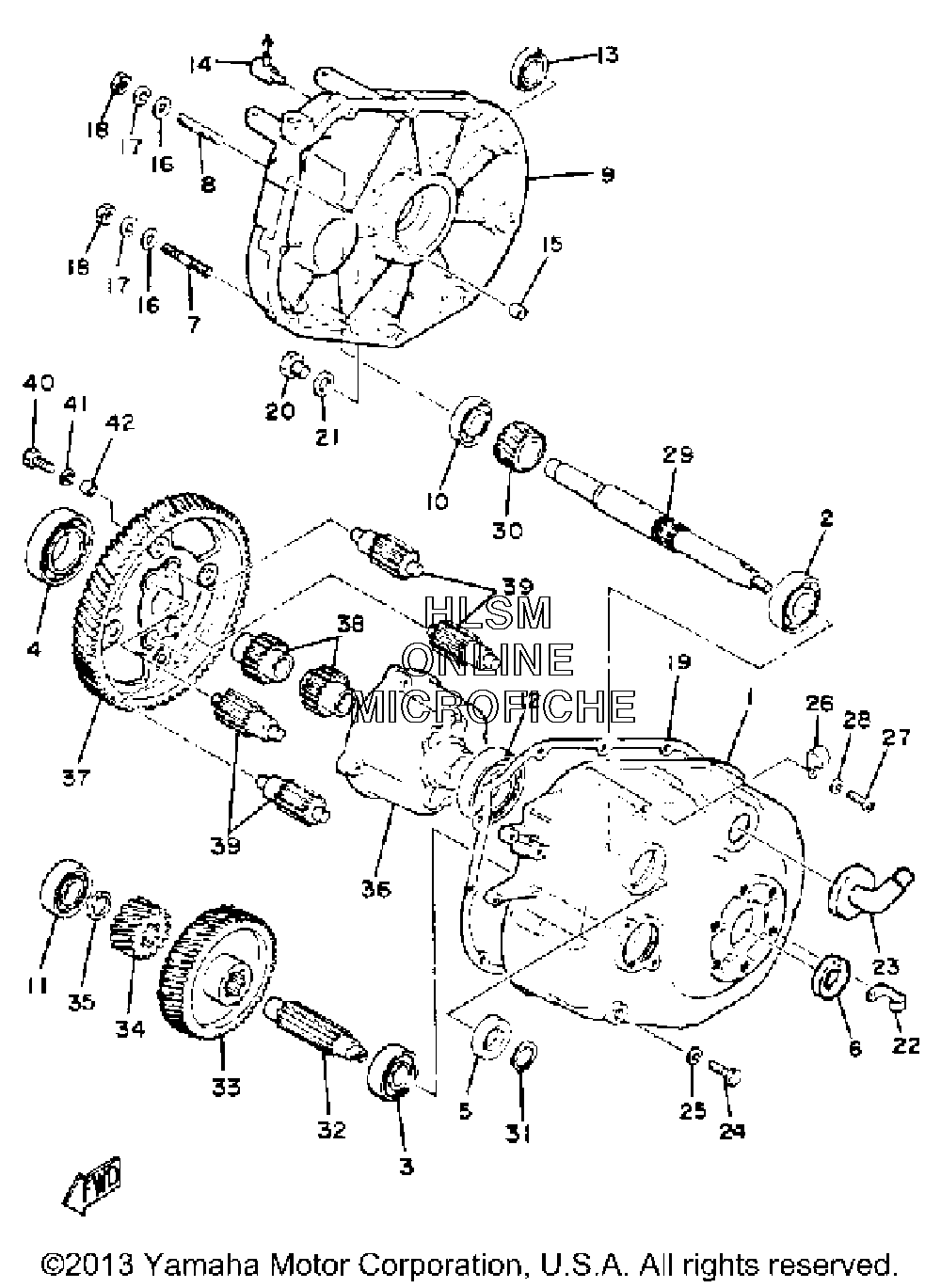

TRANSMISSION для Yamaha GOLF CAR GAS [G1A3] (J17) - 1982 года выпуска`
-
№АртикулНазвание
-
1J11-46311-00-00 CASE, TRANS 1CASE, TRANS 1
-
293306-20529-00 BEARING (B6205C4)BEARING (B6205C4)
-
393306-20421-00 BEARINGBEARING
-
493306-00803-00 BEARINGBEARING
-
593102-25017-00 OIL SEALOIL SEAL
-
693102-22189-00 OIL SEALOIL SEAL
-
795621-08335-00 BOLT, STUD (95601-08335-00)BOLT, STUD (95601-08335-00)
-
895601-08345-00 BOLT, STUDBOLT, STUD
-
9J10-46312-00-00 CASE, TRANS 2CASE, TRANS 2
-
1093306-20324-00 BEARINGBEARING
-
1193306-20421-00 BEARINGBEARING
-
1293306-00803-00 BEARINGBEARING
-
1393102-22189-00 OIL SEALOIL SEAL
-
148E4-24461-00-00 PIPE, JOINTPIPE, JOINT
-
1599510-12016-00 PIN, DOWELPIN, DOWEL
-
1692901-08600-00 WASHERWASHER
-
1792990-08100-00 WASHER, SPRINGWASHER, SPRING
-
1895333-08600-00 NUTNUT
-
19J10-46319-01-00 GASKETGASKET
-
2090340-14036-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
2190430-14043-00 GASKETGASKET
-
2290465-06100-00 CLAMPCLAMP
-
23835-47559-00-00 CAP 2CAP 2
-
2497011-10020-00 BOLTBOLT
-
2592990-10100-00 WASHER, SPRINGWASHER, SPRING
-
2690465-08028-00 CLAMPCLAMP
-
2798580-06010-00 SCREW, PAN HEAD (92503-06010-00)SCREW, PAN HEAD (92503-06010-00)
-
2892995-06100-00 WASHER, SPRINGWASHER, SPRING
-
29J10-46321-00-00 SHAFT, INPUTSHAFT, INPUT
-
30J17-46331-00-00 GEAR, INPUT 1GEAR, INPUT 1
-
3193410-25017-00 CIRCLIPCIRCLIP
-
32J10-46351-00-00 SHAFT, COUNTERSHAFT, COUNTER
-
33J17-46361-00-00 GEAR, COUNTER 1GEAR, COUNTER 1
-
34J17-46362-00-00 GEAR, COUNTER 2GEAR, COUNTER 2
-
3590201-20272-00 WASHER, PLATEWASHER, PLATE
-
36J10-W4641-00-00 CASE, DIFFERENTIALCASE, DIFFERENTIAL
-
37J17-W4642-00-00 GEAR, RINGGEAR, RING
-
38J10-46414-00-00 GEAR, DIFF SIDEGEAR, DIFF SIDE
-
39J10-46415-00-00 PINION, DIFFPINION, DIFF
-
4097313-08030-00 BOLT, HEXAGONBOLT, HEXAGON
-
4192990-08100-00 WASHER, SPRINGWASHER, SPRING
-
4299510-10114-00 PIN, DOWELPIN, DOWEL
