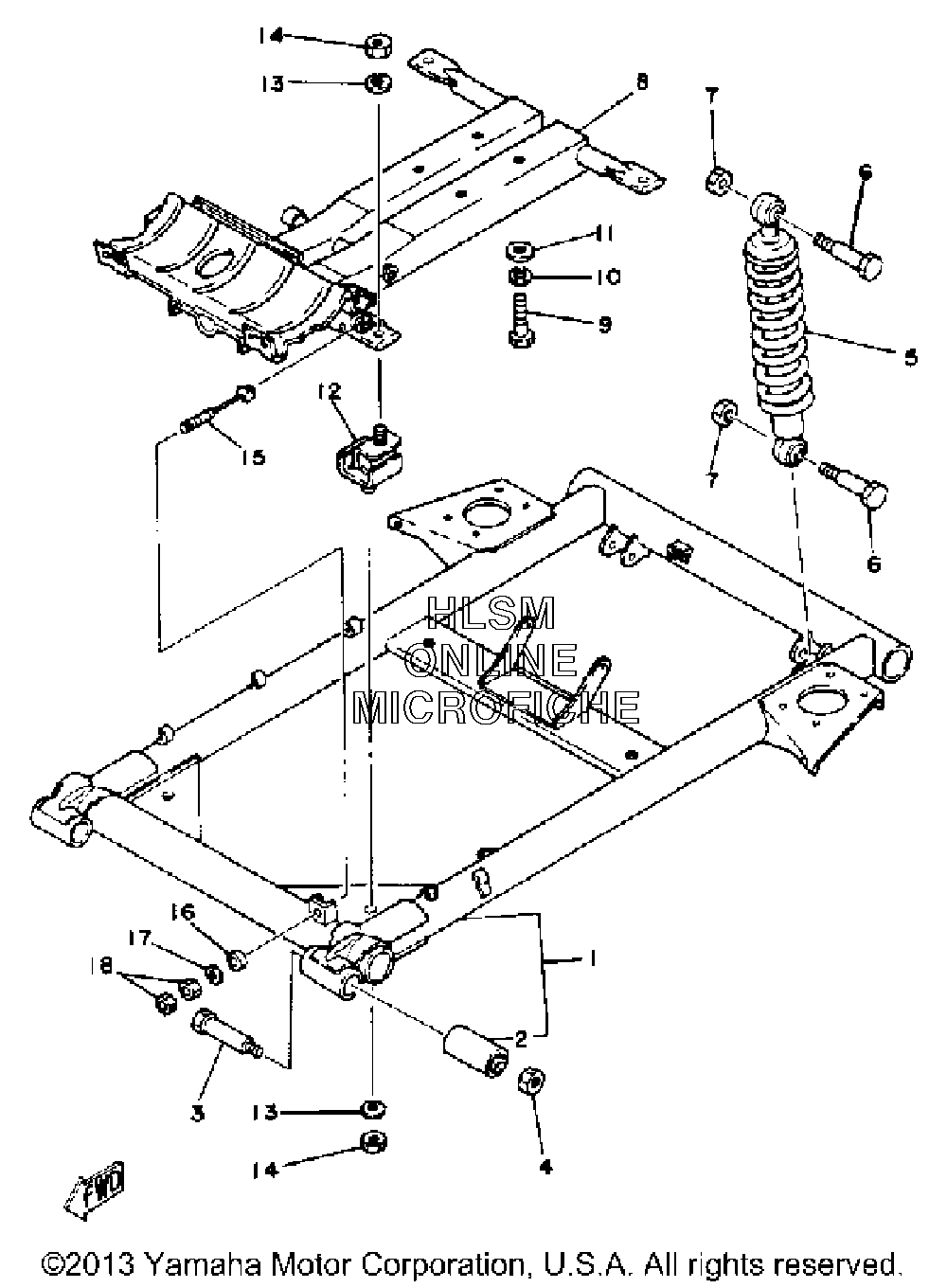

SUSPENSION - REAR SHOCK ABSORBER для Yamaha GOLF CAR GAS [G1A3] (J17) - 1982 года выпуска`
-
№АртикулНазвание
-
1J17-W2211-00-00 REAR ARMREAR ARM
-
2J10-22123-00-00 ...BUSH 1...BUSH 1
-
390101-10419-00 BOLTBOLT
-
495612-10100-00 NUT, UNUT, U
-
5J10-22210-00-00 SHK/ABS ASSEMBLY, REARSHK/ABS ASSEMBLY, REAR
-
697313-10050-00 BOLT, HEXAGON (676)BOLT, HEXAGON (676)
-
795601-10100-00 NUT, U (95602-10100-00)NUT, U (95602-10100-00)
-
8J17-21411-00-00 BRACKET, ENGINE 1BRACKET, ENGINE 1
-
990106-10034-00 BOLT, DOME HEADBOLT, DOME HEAD
-
1092990-10100-00 WASHER, SPRINGWASHER, SPRING
-
1192990-10600-00 WASHER, PLATEWASHER, PLATE
-
12J10-21486-00-00 DAMPER 2DAMPER 2
-
1392990-10100-00 WASHER, SPRINGWASHER, SPRING
-
1495303-10600-00 NUT (95301-10600-00)NUT (95301-10600-00)
-
15J31-2217J-01-00 TENSIONER 1TENSIONER 1
-
16J17-2214F-00-00 DAMPER 1DAMPER 1
-
1790201-06778-00 WASHER, PLATEWASHER, PLATE
-
1895380-06600-00 NUT, HEXAGONNUT, HEXAGON
