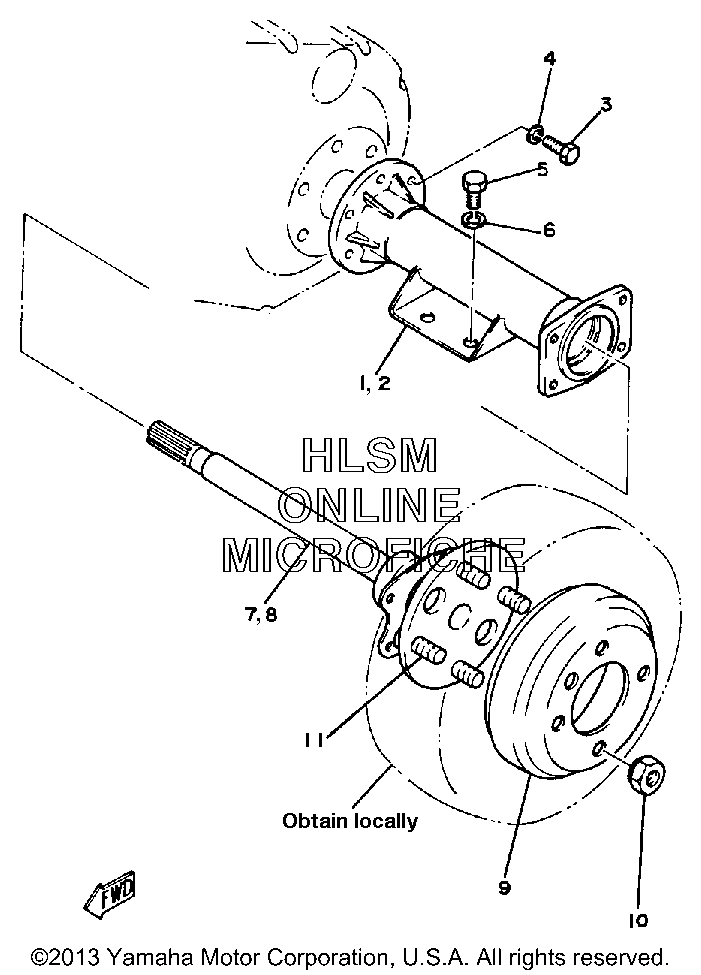

WHEEL - REAR W/ AXLE ASSY для Yamaha GOLF CAR ELECTRIC [G1E3] (J22) - 1982 года выпуска`
-
№АртикулНазвание
-
1J14-46540-00-00 REAR AXLE HOUSING 1REAR AXLE HOUSING 1
-
2J14-46550-00-00 REAR AXLE HOUSING 2REAR AXLE HOUSING 2
-
397013-08025-00 BOLTBOLT
-
492990-08100-00 WASHER, SPRINGWASHER, SPRING
-
597011-10020-00 BOLTBOLT
-
692990-10100-00 WASHER, SPRINGWASHER, SPRING
-
7J22-46510-01-00 REAR AXLE SHAFT 1 (J14-46510-01-00)REAR AXLE SHAFT 1 (J14-46510-01-00)
-
8J22-46520-01-00 REAR AXLE SHAFT 2 (J14-46520-01-00)REAR AXLE SHAFT 2 (J14-46520-01-00)
-
9J55-G6521-00-00 DRUMDRUM
-
1090179-12262-00 NUTNUT
-
1190114-12004-00 BOLT, SERRATIONBOLT, SERRATION
