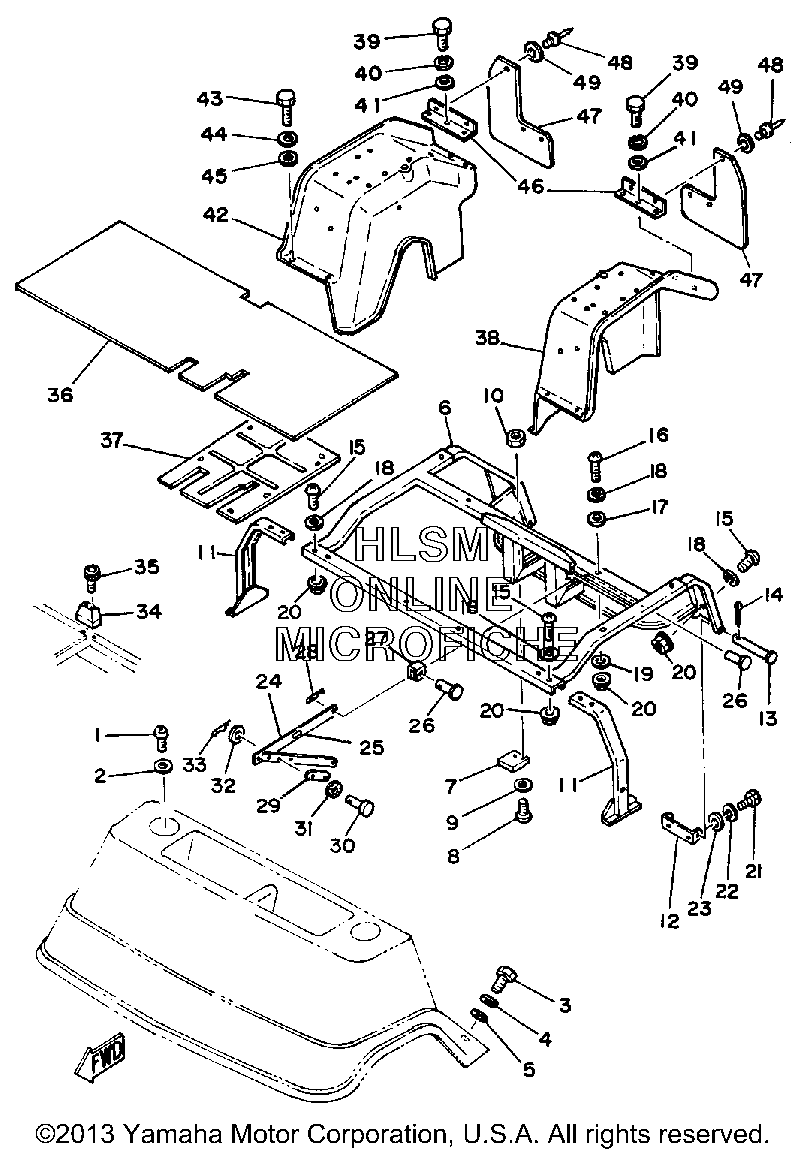

BODY FITTING для Yamaha GOLF CAR ELECTRIC [G1E3] (J22) - 1982 года выпуска`
-
№АртикулНазвание
-
190201-08310-00 WASHER, PLATEWASHER, PLATE
-
298980-08025-00 SCREW, BIND (98902-08025-00)SCREW, BIND (98902-08025-00)
-
397023-06020-00 BOLT (3XF)BOLT (3XF)
-
492995-06100-00 WASHER, SPRINGWASHER, SPRING
-
590201-06075-00 WASHER, PLATEWASHER, PLATE
-
6J31-77145-00-00 HINGE 1HINGE 1
-
7J17-78221-00-00 SHEET, BODY MOUNTING 1SHEET, BODY MOUNTING 1
-
898501-05018-00 SCREW, PAN HEADSCREW, PAN HEAD
-
992901-05600-00 WASHERWASHER
-
1095612-05100-00 NUT, UNUT, U
-
11J31-78123-00-00 REINFORCEMENT 3REINFORCEMENT 3
-
12J10-77146-00-00 HINGE 2HINGE 2
-
1391701-08118-00 PIN, CLEVISPIN, CLEVIS
-
1491401-25020-00 PIN, COTTERPIN, COTTER
-
1598980-06020-00 SCREW, BINDSCREW, BIND
-
1698980-06025-00 SCREW, BINDSCREW, BIND
-
1790202-08085-00 WASHER, PLATEWASHER, PLATE
-
1890201-06697-00 WASHER, PLATEWASHER, PLATE
-
1990201-06697-00 WASHER, PLATEWASHER, PLATE
-
2095601-06200-00 NUT, U-FLANGENUT, U-FLANGE
-
2197313-08020-00 BOLT, HEXAGONBOLT, HEXAGON
-
2292990-08100-00 WASHER, SPRINGWASHER, SPRING
-
2392901-08600-00 WASHERWASHER
-
24J10-77125-00-00 STAY 1STAY 1
-
25J10-77766-00-00 LABEL, WARNING 6LABEL, WARNING 6
-
2691701-08020-00 PIN, CLEVISPIN, CLEVIS
-
27J17-7712F-00-00 STAY 1STAY 1
-
2890468-16065-00 CLIPCLIP
-
29J10-77188-00-00 STOPPERSTOPPER
-
3091701-06012-00 PIN, CLEVISPIN, CLEVIS
-
3190206-06090-00 WASHER, WAVEWASHER, WAVE
-
3292990-06200-00 WASHER, PLAINWASHER, PLAIN
-
3390468-10050-00 CLIPCLIP
-
34J17-78156-00-00 STOPPER, LOCKSTOPPER, LOCK
-
3591311-06035-00 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
36J10-78231-09-00 MAT, MAIN FLOOR 1 (J10-78231-02-00)MAT, MAIN FLOOR 1 (J10-78231-02-00)
-
37J31-78271-00-00 SERVICE LID, PEDALSERVICE LID, PEDAL
-
38J26-78191-00-00 PANEL, REAR FENDER 1PANEL, REAR FENDER 1
-
3997023-06020-00 BOLT (3XF)BOLT (3XF)
-
4092995-06100-00 WASHER, SPRINGWASHER, SPRING
-
4190201-062A8-00 WASHER, PLATEWASHER, PLATE
-
42J26-78192-00-00 PANEL, REAR FENDER 2PANEL, REAR FENDER 2
-
4397023-06020-00 BOLT (3XF)BOLT (3XF)
-
4492995-06100-00 WASHER, SPRINGWASHER, SPRING
-
4590201-062A8-00 WASHER, PLATEWASHER, PLATE
-
46J17-78198-00-00 RETAINER, FLAPRETAINER, FLAP
-
47J24-78199-00-00 FLAP, REAR 2FLAP, REAR 2
-
4890267-40075-00 RIVET, BLINDRIVET, BLIND
-
4990201-05034-00 WASHER, PLATEWASHER, PLATE
