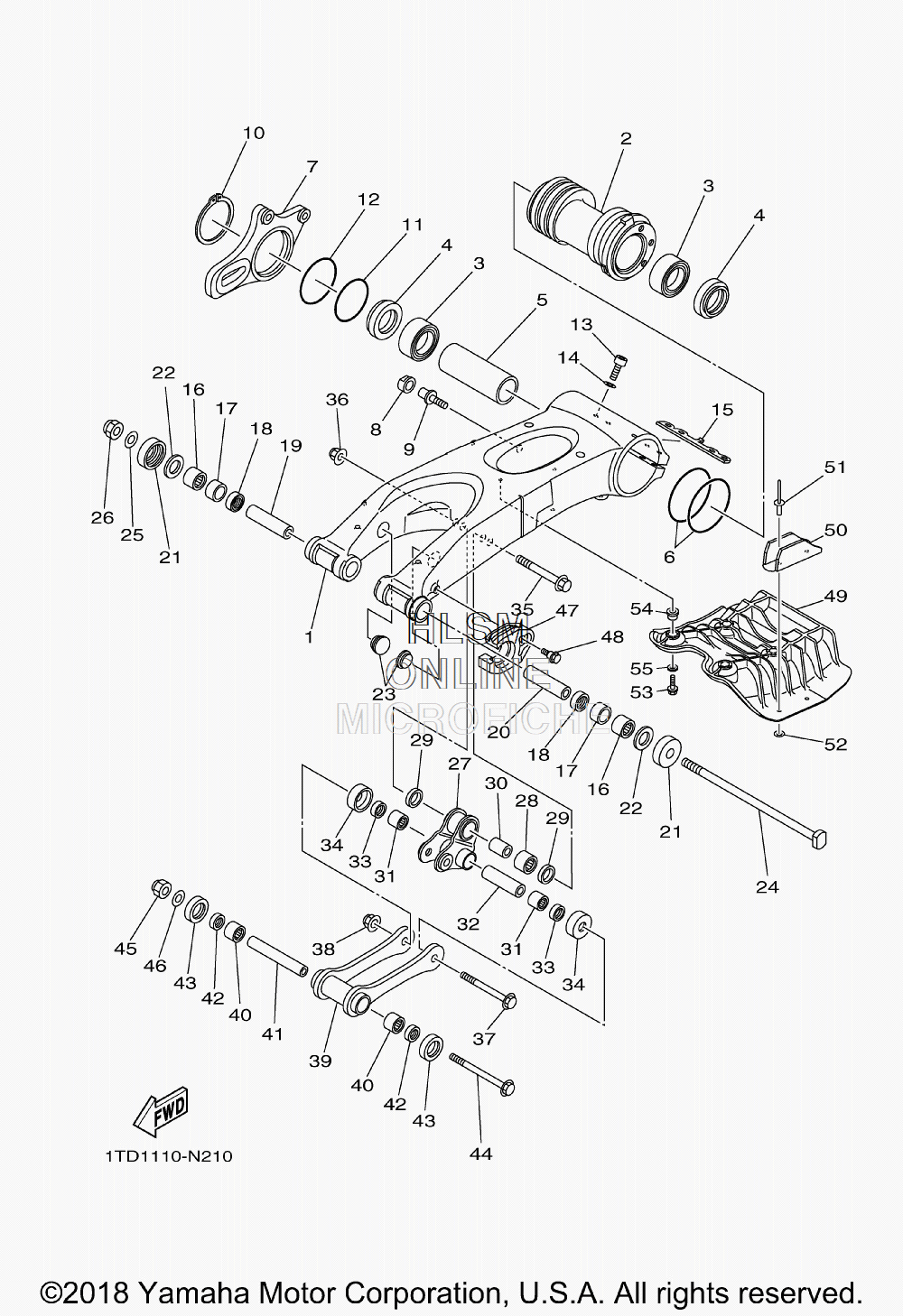

SUSPENSION - REAR ARM для Yamaha YFZ 450R - 2019 года выпуска`
-
№АртикулНазвание
-
118P-22110-00-00 REAR ARM COMP.REAR ARM COMP.
-
25TG-25311-21-00 HUB, REARHUB, REAR
-
393304-20812-00 BEARINGBEARING
-
493106-48001-00 OIL SEALOIL SEAL
-
55TG-25317-01-00 SPACER, BEARINGSPACER, BEARING
-
61S3-23147-01-00 O-RINGO-RING
-
75TG-25721-30-00 BRACKET, CALIPERBRACKET, CALIPER
-
890387-16014-00 COLLARCOLLAR
-
990110-12001-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1093410-67085-00 CIRCLIPCIRCLIP
-
1193210-71001-00 O-RINGO-RING
-
1293210-66001-00 O-RINGO-RING
-
1391314-08040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1492903-08600-00 WASHER, PLATEWASHER, PLATE
-
155TG-22475-00-00 SEAL, DUSTSEAL, DUST
-
1693317-22237-00 BEARINGBEARING
-
1790380-22111-00 BUSH, SOLIDBUSH, SOLID
-
1893106-22019-00 OIL SEAL (DC 22-28-8)OIL SEAL (DC 22-28-8)
-
1990387-16027-00 COLLARCOLLAR
-
2090387-160W1-00 COLLARCOLLAR
-
214X7-22129-00-00 COVER, THRUST 2COVER, THRUST 2
-
223YF-22149-00-00 WASHERWASHER
-
2390338-23004-00 PLUGPLUG
-
2418P-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
2590201-16018-00 WASHER, PLATEWASHER, PLATE
-
2690185-16002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
271TD-F217A-00-00 ARM, RELAYARM, RELAY
-
2893315-32056-00 BEARINGBEARING
-
2993109-20001-00 OIL SEALOIL SEAL
-
3090387-12043-00 COLLARCOLLAR
-
3193315-31758-00 BEARINGBEARING
-
3290387-12041-00 COLLARCOLLAR
-
3393109-17071-00 OIL SEALOIL SEAL
-
3455K-22129-00-00 COVER, THRUST 2COVER, THRUST 2
-
3590105-12064-00 BOLT, FLANGEBOLT, FLANGE
-
3695602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3790105-12065-00 BOLT, FLANGEBOLT, FLANGE
-
3895602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
391TD-F217F-00-00 ROD, CONNECTING 1ROD, CONNECTING 1
-
4093315-31758-00 BEARINGBEARING
-
4190387-12042-00 COLLARCOLLAR
-
4293109-17071-00 OIL SEALOIL SEAL
-
4355K-22129-00-00 COVER, THRUST 2COVER, THRUST 2
-
4490105-12066-00 BOLT, FLANGEBOLT, FLANGE
-
4595612-12100-00 NUT, UNUT, U
-
4690201-12032-00 WASHER, PLATEWASHER, PLATE
-
4718P-22151-10-00 SEAL, GUARDSEAL, GUARD
-
4890109-06172-00 BOLTBOLT
-
4918P-22361-00-00 GUARD 1GUARD 1
-
505TG-22153-10-00 GUARD, CHAINGUARD, CHAIN
-
5190267-47187-00 RIVET, BLIND (4.7X16.4 BLACK)RIVET, BLIND (4.7X16.4 BLACK)
-
5290201-04027-00 WASHER, PLATEWASHER, PLATE
-
5395812-06025-00 BOLT, FLANGEBOLT, FLANGE
-
5490387-06151-00 COLLARCOLLAR
-
5590201-06033-00 WASHER, PLATEWASHER, PLATE
