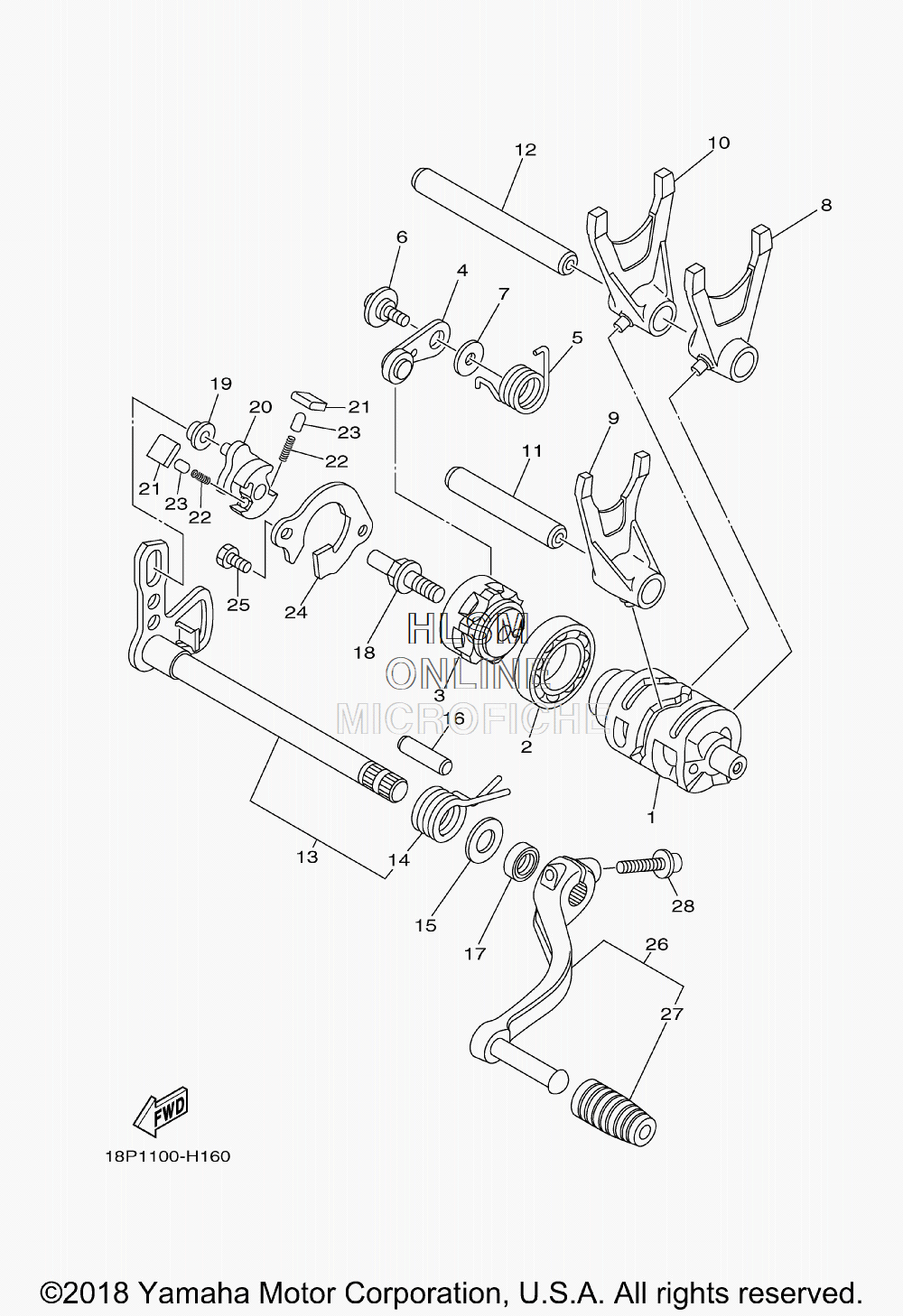

SHIFT CAM W/ FORK для Yamaha YFZ 450R - 2019 года выпуска`
-
№АртикулНазвание
-
118P-18541-00-00 CAM, SHIFTCAM, SHIFT
-
293306-90509-00 BEARINGBEARING
-
32S2-18185-00-00 SEGMENTSEGMENT
-
42S2-18140-10-00 STOPPER LEVER ASSYSTOPPER LEVER ASSY
-
590508-26021-00 SPRING, TORSIONSPRING, TORSION
-
690109-06198-00 BOLTBOLT
-
790201-06013-00 WASHER, PLATEWASHER, PLATE
-
818P-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
918P-18512-00-00 FORK, SHIFT 2FORK, SHIFT 2
-
1018P-18513-00-00 FORK, SHIFT 3FORK, SHIFT 3
-
1118P-18531-00-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
-
121WG-18531-01-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
-
1318P-18101-00-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
1490508-32136-00 ...SPRING, TORSION...SPRING, TORSION
-
1590201-127E1-00 WASHER, PLATEWASHER, PLATE
-
1693608-30002-00 PIN, DOWELPIN, DOWEL
-
1793102-12224-00 OIL SEALOIL SEAL
-
183XJ-18173-10-00 PIN, SHIFTPIN, SHIFT
-
193XJ-18178-00-00 ROLLER, SHIFT LEVERROLLER, SHIFT LEVER
-
2018P-18122-00-00 LEVER, SHIFT 2LEVER, SHIFT 2
-
213XJ-18182-00-00 PAWL, SHIFTERPAWL, SHIFTER
-
2290501-052G5-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
233XJ-18184-00-00 PIN, PAWLPIN, PAWL
-
245BE-18172-00-00 GUIDE, SHIFTGUIDE, SHIFT
-
2590101-06041-00 BOLTBOLT
-
2618P-18110-00-00 SHIFT PEDAL ASSYSHIFT PEDAL ASSY
-
275YT-18113-00-00 ...COVER, SHIFT PEDAL...COVER, SHIFT PEDAL
-
2890109-06031-00 BOLTBOLT
