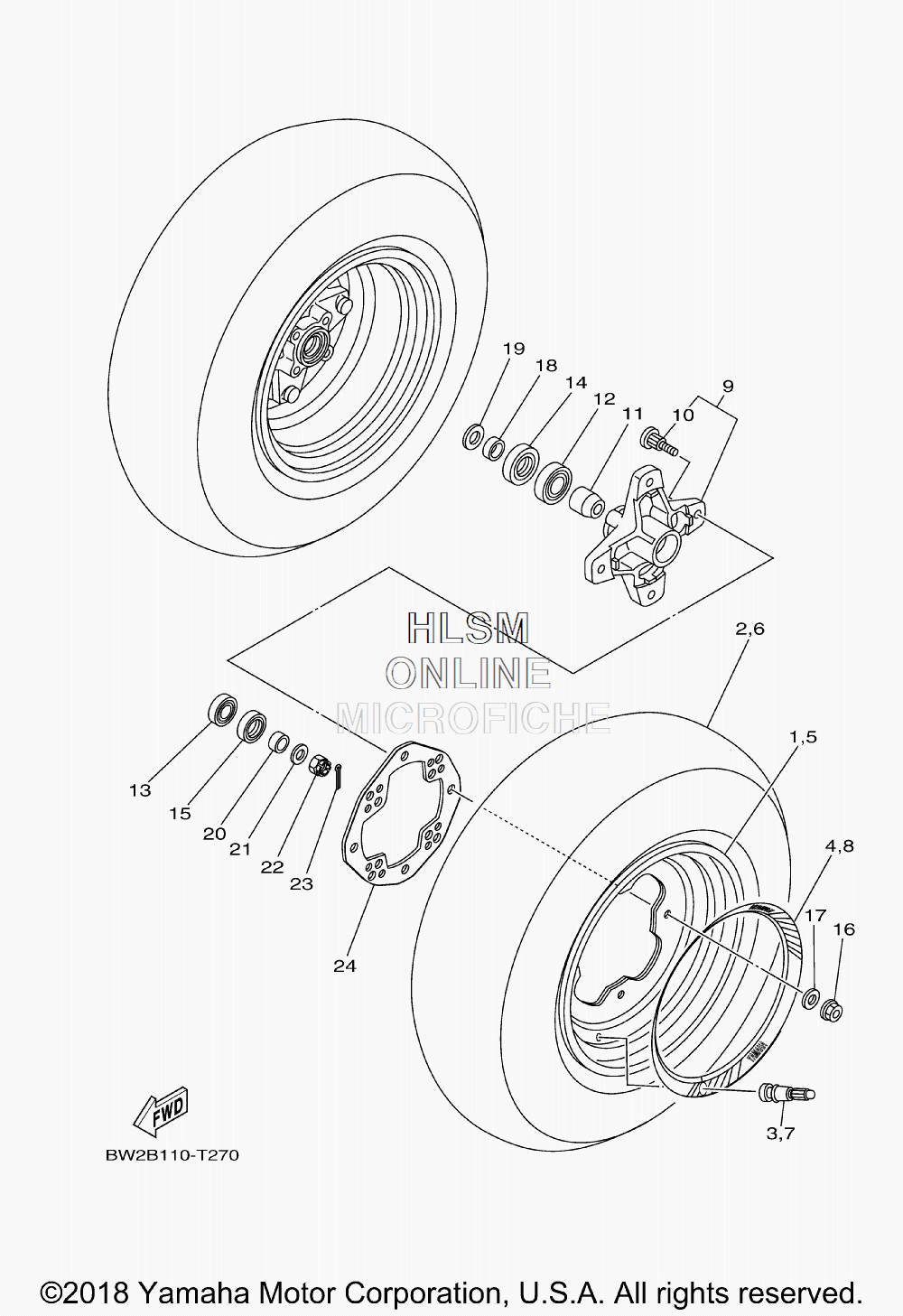

WHEEL - FRONT W/ AXLE ASSY для Yamaha YFZ 450R SPECIAL EDITION (BLUISH GRAY) - 2019 года выпуска`
-
№АртикулНазвание
-
11TD-F5180-11-00 WHEEL COMP.WHEEL COMP.
-
294107-10802-00 TIRE (AT21X7R10 MS21 TL) (MAXXIS)TIRE (AT21X7R10 MS21 TL) (MAXXIS)
-
393900-00813-00 VALVE, RIM (TR413) (MAXXIS)VALVE, RIM (TR413) (MAXXIS)
-
4B46-F51G1-20-00 GRAPHIC 1GRAPHIC 1
-
51TD-F5180-11-00 WHEEL COMP.WHEEL COMP.
-
694107-10802-00 TIRE (AT21X7R10 MS21 TL) (MAXXIS)TIRE (AT21X7R10 MS21 TL) (MAXXIS)
-
793900-00813-00 VALVE, RIM (TR413) (MAXXIS)VALVE, RIM (TR413) (MAXXIS)
-
8B46-F51G1-20-00 GRAPHIC 1GRAPHIC 1
-
91PE-F510D-00-00 HUB ASSY 2HUB ASSY 2
-
1090114-10006-00 ...BOLT, SERRATION...BOLT, SERRATION
-
115LP-25117-00-00 SPACER, BEARINGSPACER, BEARING
-
1293306-00446-00 BEARINGBEARING
-
1393306-20231-00 BEARINGBEARING
-
1493105-26026-00 OIL SEALOIL SEAL
-
1593102-22216-00 OIL SEALOIL SEAL
-
1695702-10500-00 NUT, FLANGENUT, FLANGE
-
1792902-10200-00 WASHERWASHER
-
1890387-20005-00 COLLARCOLLAR
-
1990201-20022-00 WASHER, PLATEWASHER, PLATE
-
2090387-150R1-00 COLLARCOLLAR
-
2190201-14586-00 WASHER, PLATEWASHER, PLATE
-
2290171-14002-00 NUT, CASTLENUT, CASTLE
-
2391402-30025-00 PIN, COTTERPIN, COTTER
-
241S3-25127-01-00 COVER, PLATECOVER, PLATE
