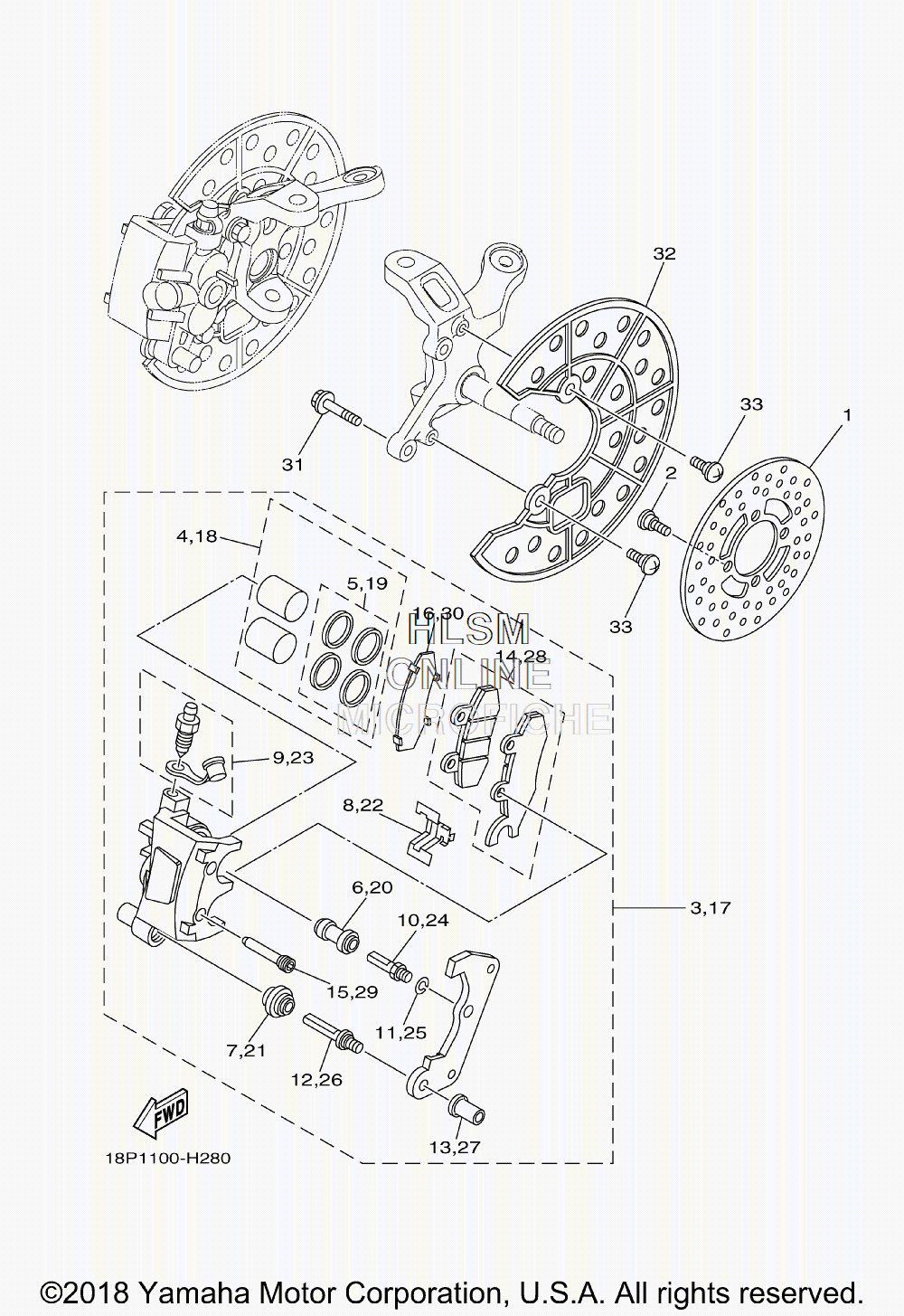

BRAKE - FRONT CALIPER для Yamaha YFZ 450R SPECIAL EDITION (BLUISH GRAY) - 2019 года выпуска`
-
№АртикулНазвание
-
14XE-F582T-11-00 DISC, BRAKE (LEFT)DISC, BRAKE (LEFT)
-
290109-08082-00 BOLTBOLT
-
35TG-2580T-11-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
45TG-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
53LC-W0047-50-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
61UY-25937-51-00 ...BOOT 2...BOOT 2
-
73JD-25917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
83JD-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
91UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
101UY-25926-51-00 ...BOLT...BOLT
-
111UY-25938-51-00 ...WASHER, SPRING...WASHER, SPRING
-
123JD-25926-00-00 ...BOLT...BOLT
-
133JD-25961-00-00 ...NUT...NUT
-
145TG-W0045-20-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
155TG-25924-00-00 ...PIN, PAD...PIN, PAD
-
161S3-25828-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
175TG-2580U-11-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
185TG-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
193LC-W0047-50-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
201UY-25937-51-00 ...BOOT 2...BOOT 2
-
213JD-25917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
223JD-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
231UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
241UY-25926-51-00 ...BOLT...BOLT
-
251UY-25938-51-00 ...WASHER, SPRING...WASHER, SPRING
-
263JD-25926-00-00 ...BOLT...BOLT
-
273JD-25961-00-00 ...NUT...NUT
-
285TG-W0045-30-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
295TG-25924-00-00 ...PIN, PAD...PIN, PAD
-
301S3-25828-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
3190105-08184-00 BOLT, FLANGEBOLT, FLANGE
-
325TG-2514A-00-00 RING, WHEEL 1RING, WHEEL 1
-
3390149-06117-00 SCREWSCREW
