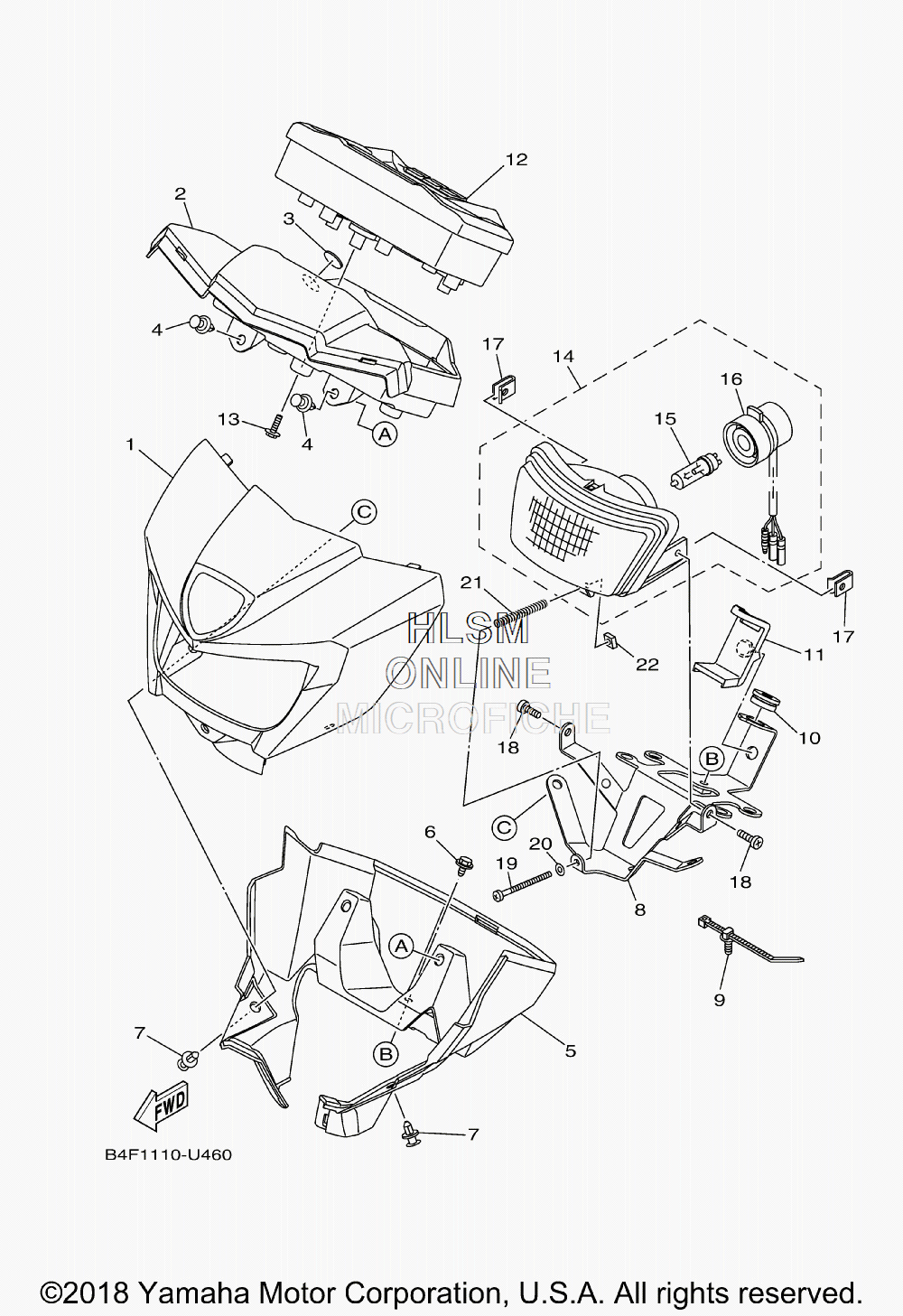

HEADLIGHT 2 для Yamaha GRIZZLY EPS 4WD SE - 2019 года выпуска`
-
№АртикулНазвание
-
1B4F-H252L-00-00 COVER COMP.COVER COMP.
-
2B4F-H3559-00-00 COVER, METERCOVER, METER
-
35GT-2836B-10-00 TUNING FORK MARKTUNING FORK MARK
-
490269-07010-00 RIVETRIVET
-
52SM-F6143-01-00 COVER, HANDLE UPPER 1COVER, HANDLE UPPER 1
-
690119-06079-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
790269-07010-00 RIVETRIVET
-
8B4F-F6292-00-00 STAYSTAY
-
91NS-F1338-00-00 CLAMPCLAMP
-
1090480-13567-00 GROMMETGROMMET
-
11B4F-F622K-00-00 PROTECTOR 1PROTECTOR 1
-
12B4F-H3500-10-00 METER ASSYMETER ASSY
-
1390163-05006-00 SCREW, TAPPINGSCREW, TAPPING
-
142PA-84300-00-00 HEADLIGHT ASSYHEADLIGHT ASSY
-
155VM-84314-00-00 ...BULB, HEADLIGHT(12V-35/36.5W) (HALOGEN)...BULB, HEADLIGHT(12V-35/36.5W) (HALOGEN)
-
162PA-84340-00-00 ...SOCKET CORD ASSY 1...SOCKET CORD ASSY 1
-
175VM-84117-00-00 NUTNUT
-
1898502-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
195BF-8433E-00-00 SCREW, ADJUSTINGSCREW, ADJUSTING
-
2092902-04600-00 WASHER, PLATEWASHER, PLATE
-
2190501-100A3-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
225VM-84334-00-00 NUT, ADJUSTINGNUT, ADJUSTING
