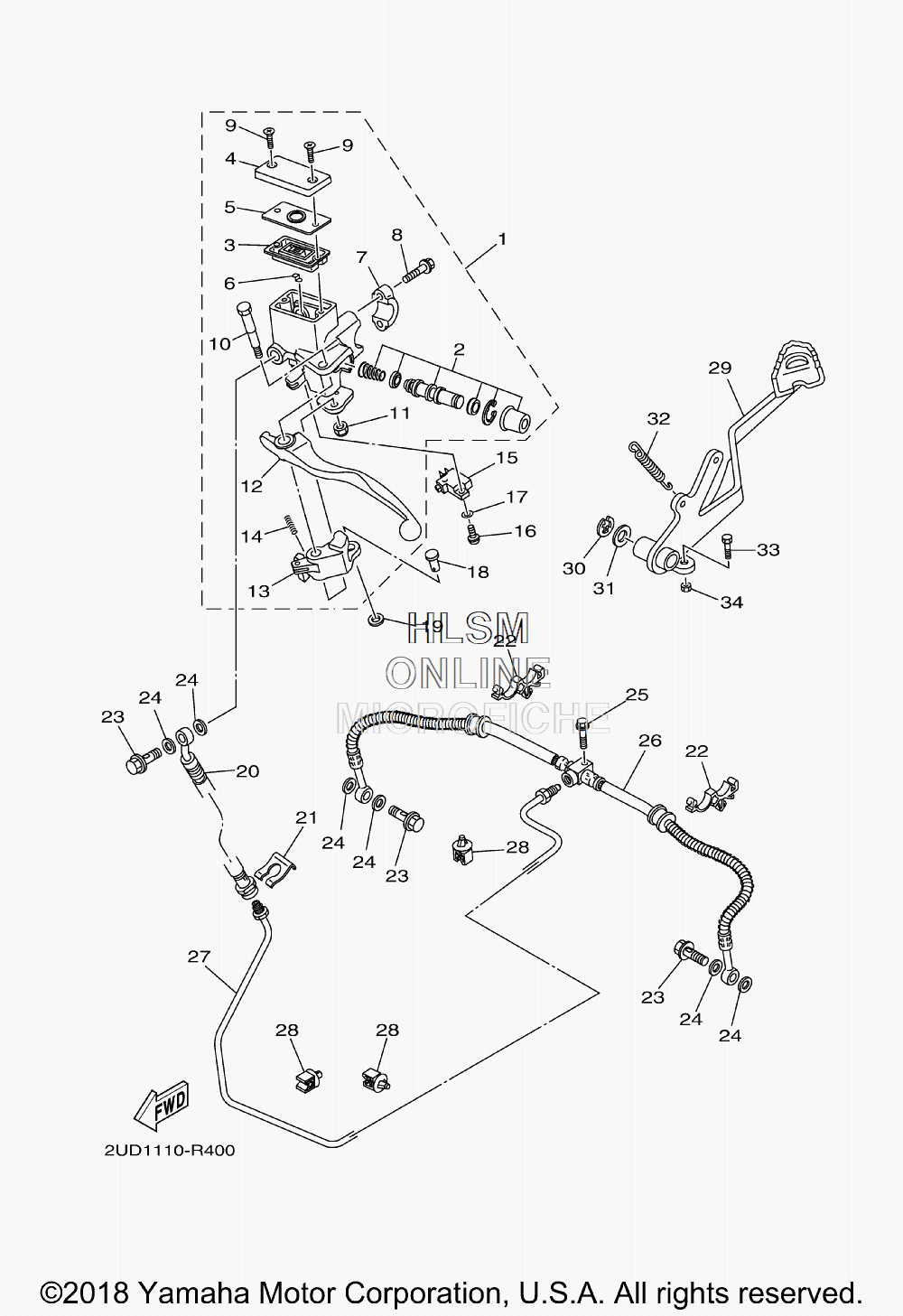

BRAKE - REAR MASTER CYLINDER для Yamaha GRIZZLY EPS 4WD SE - 2019 года выпуска`
-
№АртикулНазвание
-
12UD-F583V-00-00 REAR MASTER CYLINDER ASSYREAR MASTER CYLINDER ASSY
-
2B16-F5807-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
3B16-F5854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
4B16-F5852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
5B16-F585B-00-00 ...PLATE, DIAPHRAGM...PLATE, DIAPHRAGM
-
6B16-F5889-00-00 ...SEPARATOR...SEPARATOR
-
7B16-F5867-00-00 ...BRACKET, MASTER CYLINDER...BRACKET, MASTER CYLINDER
-
8B16-F6332-00-00 ...BOLT...BOLT
-
998780-04012-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
102UD-F589F-00-00 ...BOLT, LEVER...BOLT, LEVER
-
112UD-F6294-00-00 ...NUT 1...NUT 1
-
122UD-F3912-00-00 ...LEVER, BRAKE...LEVER, BRAKE
-
132UD-F6168-00-00 ...KNOCKER...KNOCKER
-
142UD-F5865-00-00 ...SPRING, SEAT...SPRING, SEAT
-
151HP-82530-01-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
1698502-04012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1792902-04600-00 WASHER, PLATEWASHER, PLATE
-
1890240-08013-00 PIN, CLEVISPIN, CLEVIS
-
1992902-08600-00 WASHER, PLATEWASHER, PLATE
-
202UD-F5872-01-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
212GU-25866-00-00 CIRCLIPCIRCLIP
-
2290464-16006-00 CLAMPCLAMP
-
2390401-10015-00 BOLT, UNIONBOLT, UNION
-
2490201-10118-00 WASHER, PLATEWASHER, PLATE
-
2595812-06025-00 BOLT, FLANGEBOLT, FLANGE
-
262BG-F5874-00-00 HOSE, BRAKEHOSE, BRAKE
-
271HP-F5882-01-00 PIPE, BRAKE 2PIPE, BRAKE 2
-
285KM-81677-00-00 CLAMP 1CLAMP 1
-
291HP-F7211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
3099001-10600-00 CIRCLIPCIRCLIP
-
3190201-14023-00 WASHER, PLATEWASHER, PLATE
-
3290506-20014-00 SPRING, TENSIONSPRING, TENSION
-
3397022-06014-00 BOLT, HEXAGONBOLT, HEXAGON
-
3495302-06600-00 NUT, HEXAGONNUT, HEXAGON
