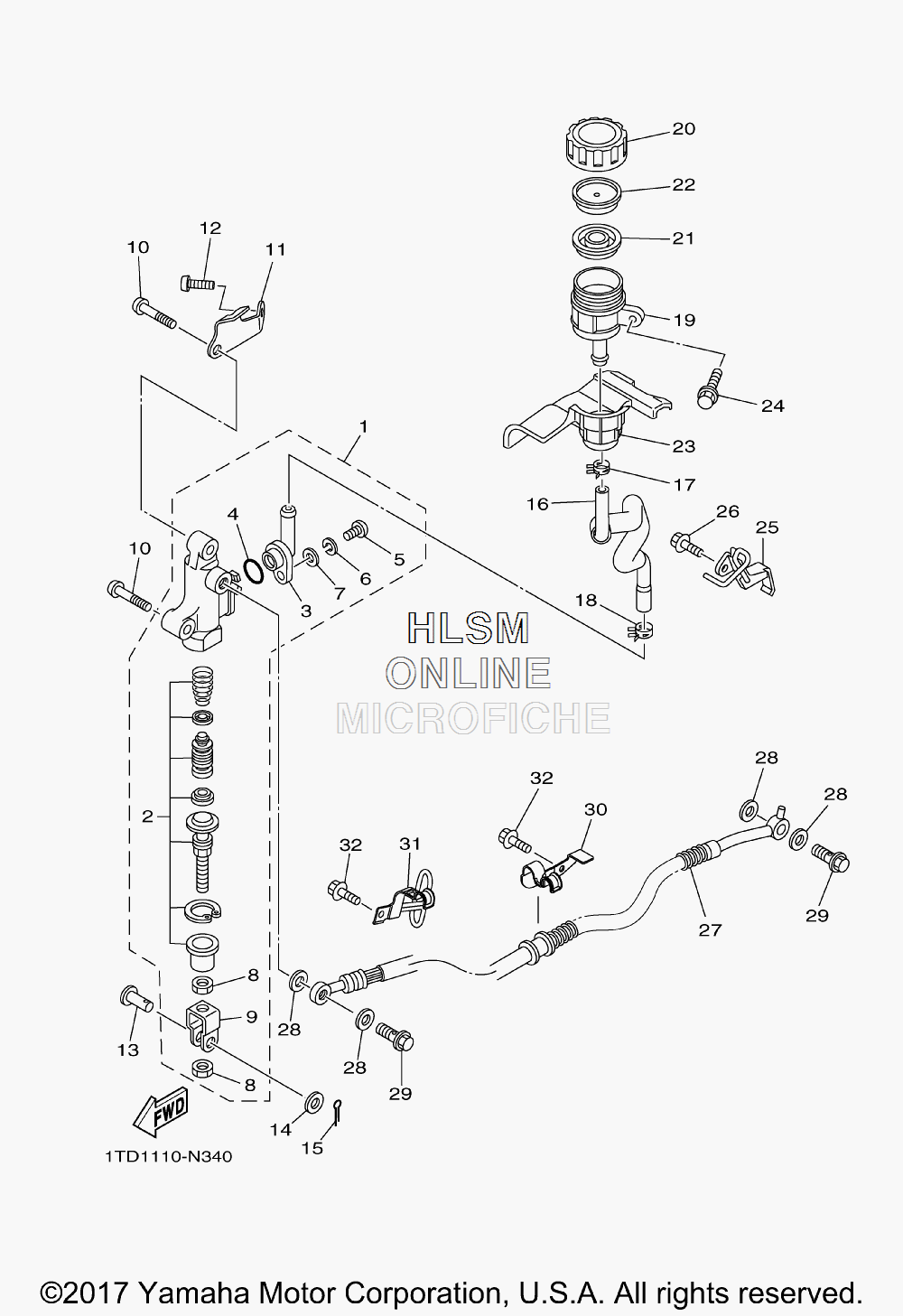

BRAKE - REAR MASTER CYLINDER для Yamaha YFZ450R SE - 2018 года выпуска`
-
№АртикулНазвание
-
11S3-2580E-00-00 REAR MASTER CYLINDER ASSYREAR MASTER CYLINDER ASSY
-
21S3-W0042-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
31AE-2582A-00-00 ...JOINT...JOINT
-
493210-15620-00 ...O-RING...O-RING
-
598506-04012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
692906-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
792906-04600-00 ...WASHER, PLATE...WASHER, PLATE
-
84SS-27218-00-00 ...NUT...NUT
-
92YK-27222-00-00 ...JOINT...JOINT
-
1092012-08035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1118P-27453-00-00 COVER 1COVER 1
-
1292012-08012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1390240-08005-00 PIN, CLEVISPIN, CLEVIS
-
1490201-08083-00 WASHER, PLATEWASHER, PLATE
-
1591401-16012-00 PIN, COTTERPIN, COTTER
-
161TD-F5895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
1790467-11044-00 CLIPCLIP
-
1890467-14057-00 CLIPCLIP
-
195JJ-25894-01-00 TANK, RESERVOIRTANK, RESERVOIR
-
203XP-25852-50-00 CAP, RESERVOIRCAP, RESERVOIR
-
212VN-25854-00-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
222VN-25855-00-00 BUSH,DIAPHRAGMBUSH,DIAPHRAGM
-
2318P-25897-00-00 DAMPERDAMPER
-
2490119-06177-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2518P-27263-00-00 BRACKET 1BRACKET 1
-
2695022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
271TD-F5874-00-00 HOSE, BRAKEHOSE, BRAKE
-
2890201-10118-00 WASHER, PLATEWASHER, PLATE
-
2990401-10015-00 BOLT, UNIONBOLT, UNION
-
301TD-F5886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
311TD-F3317-00-00 HOLDER, CABLEHOLDER, CABLE
-
3290105-06063-00 BOLT, FLANGEBOLT, FLANGE
