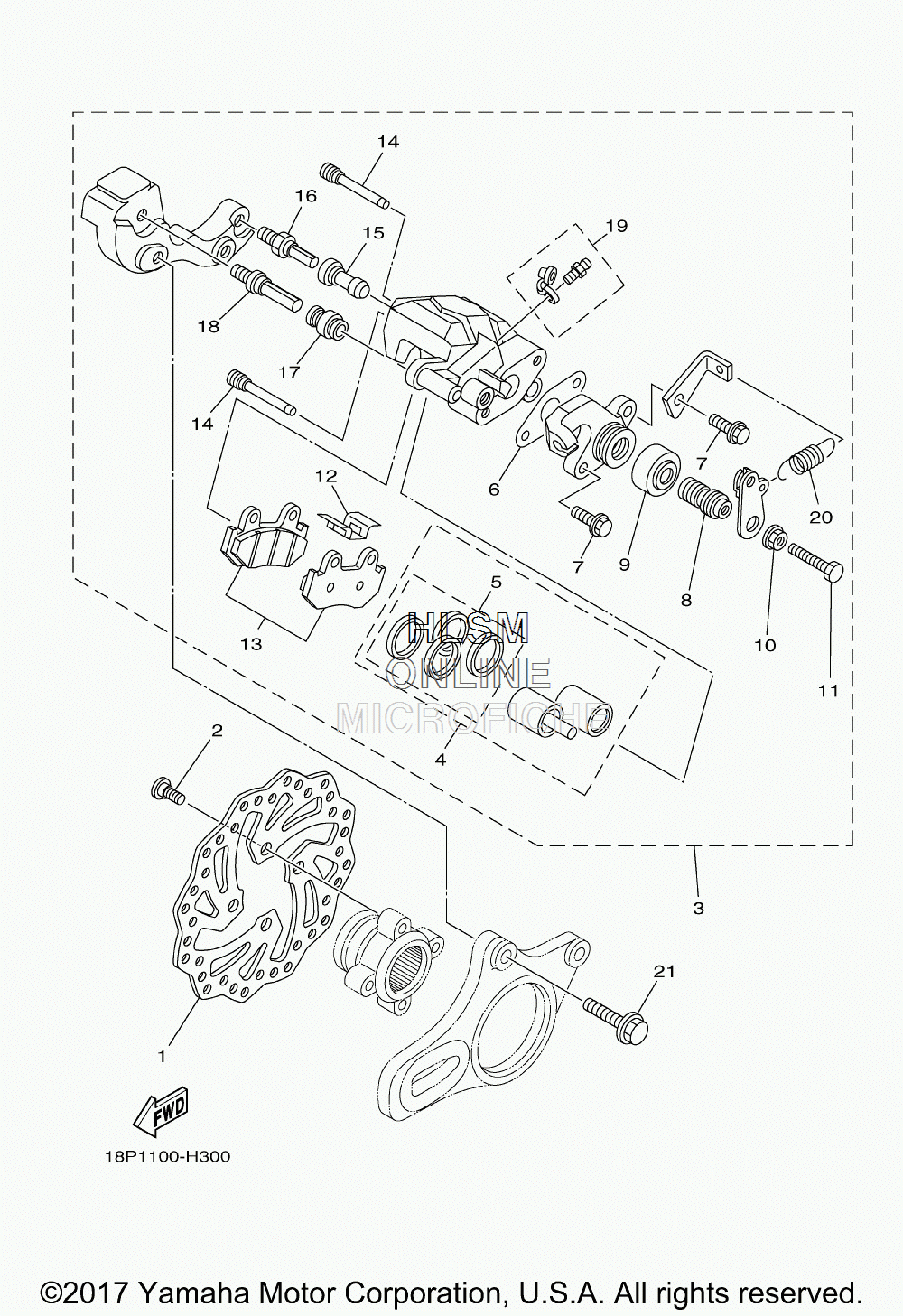

BRAKE - REAR CALIPER для Yamaha YFZ450R SE - 2018 года выпуска`
-
№АртикулНазвание
-
11S3-2582W-20-00 DISK, REAR BRAKE 2DISK, REAR BRAKE 2
-
290109-08076-00 BOLTBOLT
-
35TG-2580W-21-00 CALIPER ASSY, REAR 2CALIPER ASSY, REAR 2
-
45TG-W0057-10-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
55TG-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
65TG-25975-00-00 ...RUBBER, BUSHING...RUBBER, BUSHING
-
75UG-25833-00-00 ...BOLT, FITTING...BOLT, FITTING
-
85TG-25978-00-00 ...SHAFT L...SHAFT L
-
91UY-25974-51-00 ...BOOT...BOOT
-
101UY-25973-51-00 ...NUT...NUT
-
115TG-25972-00-00 ...ADJUST BOLT...ADJUST BOLT
-
123LD-25934-01-00 ...SPRING, PAD...SPRING, PAD
-
135TG-W0046-10-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
145DH-25933-00-00 ...PIN, PAD...PIN, PAD
-
151UY-25937-51-00 ...BOOT 2...BOOT 2
-
163SP-25914-51-00 ...PIN, SLIDE...PIN, SLIDE
-
173JD-25917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
183SP-25926-51-00 ...BOLT...BOLT
-
191UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
205TG-25977-50-00 ...SPRING, RETURN...SPRING, RETURN
-
2190105-101A9-00 BOLT, FLANGEBOLT, FLANGE
