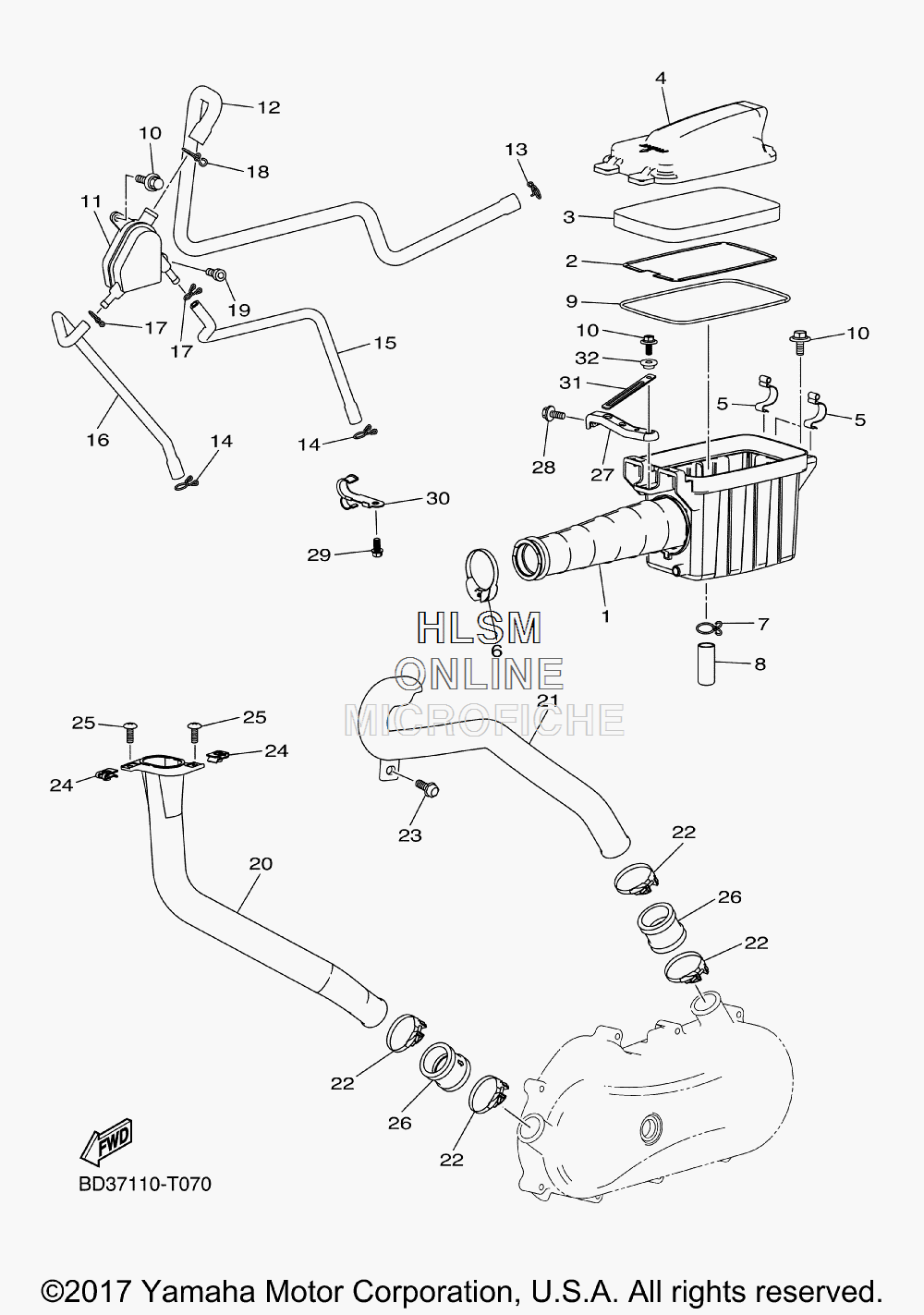

AIR CLEANER W/ INTAKE для Yamaha RAPTOR 90 - 2018 года выпуска`
-
№АртикулНазвание
-
1BD3-E4408-10-00 AIR FILTER CASE COMP.AIR FILTER CASE COMP.
-
2BD3-E4472-00-00 PLATE, ELEMENTPLATE, ELEMENT
-
3BD3-E4451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
4BD3-E4412-10-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
5BD3-E4424-00-00 CLIP, CAP FITTINGCLIP, CAP FITTING
-
6BD3-E2491-10-00 CLAMP 1CLAMP 1
-
7BD3-E3577-10-00 CLIPCLIP
-
8BD3-E443E-00-00 PIPE, DRAINPIPE, DRAIN
-
9BD3-E4457-00-00 SEALSEAL
-
10BD3-E4446-10-00 BOLTBOLT
-
11BD3-E1164-00-00 SEPERATOR, OILSEPERATOR, OIL
-
12BD3-E1166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
13BD3-E3577-10-00 CLIPCLIP
-
14BD3-E4137-10-00 CLIPCLIP
-
15BD3-E1126-00-00 PIPE, BREATHER 3PIPE, BREATHER 3
-
16BD3-E1125-00-00 PIPE, BREATHER 4PIPE, BREATHER 4
-
17BD3-E4159-10-00 CLIPCLIP
-
18BD3-E4919-10-00 CLIPCLIP
-
19BD3-E4777-10-00 BOLTBOLT
-
20BD3-E5471-00-00 DUCT, AIRDUCT, AIR
-
21BD3-E5473-00-00 DUCT, AIRDUCT, AIR
-
22BD3-E1387-00-00 CLAMP, HOSE 1CLAMP, HOSE 1
-
23BD3-F7416-10-00 BOLT, FOOTRESTBOLT, FOOTREST
-
24BD3-E261D-10-00 NUT SPRING 1NUT SPRING 1
-
25BD3-E5793-10-00 SCREWSCREW
-
26BD3-E5472-00-00 SEAL, AIR DUCTSEAL, AIR DUCT
-
27BD3-E4849-00-00 BRACKETBRACKET
-
28BD3-E2228-10-00 BOLTBOLT
-
29BD3-E7647-10-00 BOLTBOLT
-
30BD3-E3274-10-00 RETAINERRETAINER
-
31BD3-E4458-00-00 GUIDEGUIDE
-
32BD3-E4495-00-00 COLLARCOLLAR
