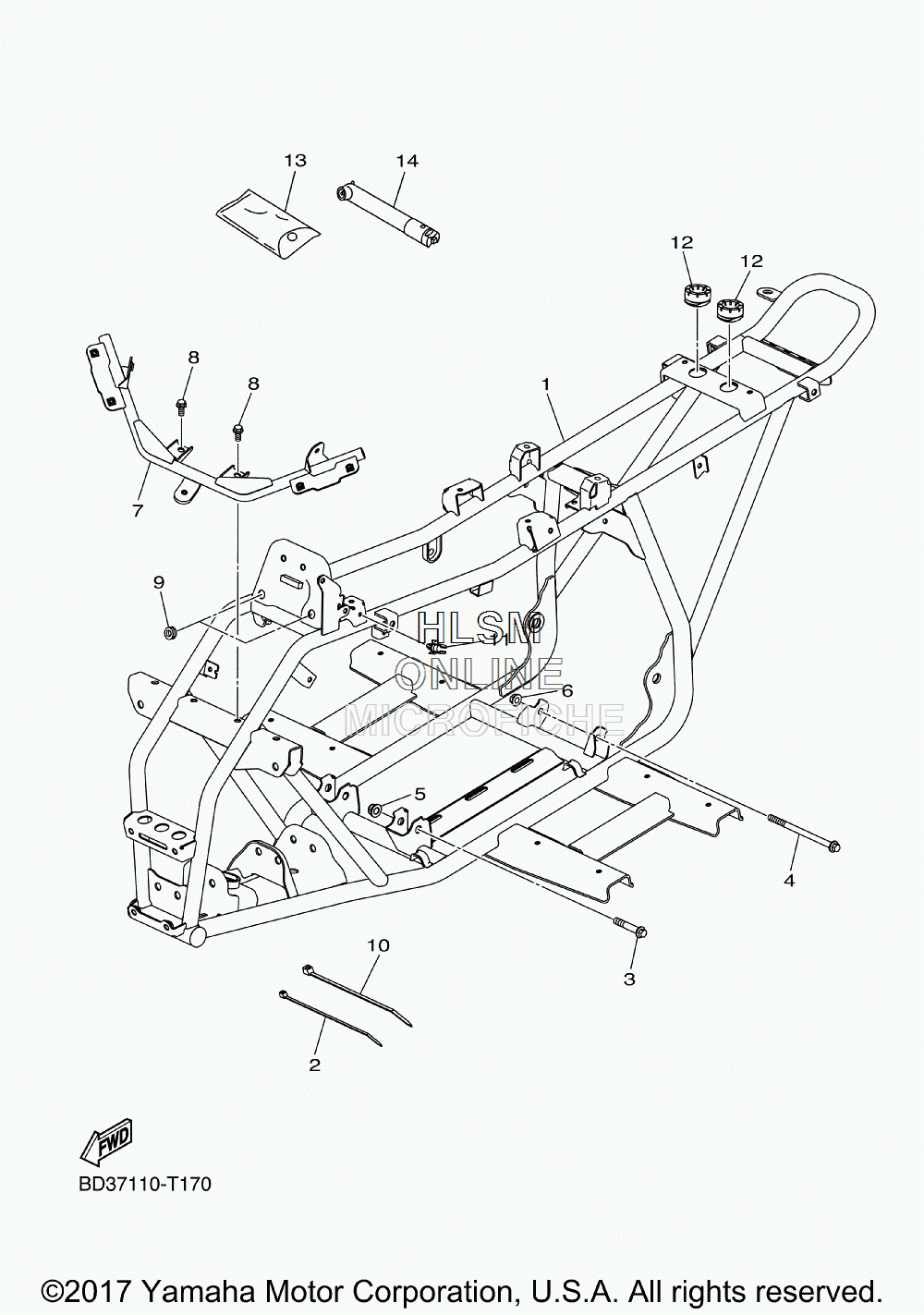

FRAME для Yamaha RAPTOR 90 - 2018 года выпуска
-
№АртикулНазвание
-
1BD3-F1110-10-00 FRAME COMP.FRAME COMP.
-
2BD3-F1646-00-00 BANDBAND
-
3BD3-F6332-10-00 BOLTBOLT
-
4BD3-F4178-10-00 BOLT 3BOLT 3
-
5BD3-F1839-10-00 NUTNUT
-
6BD3-F3778-10-00 NUTNUT
-
7BD3-F1513-00-00 STAY, FENDER 1STAY, FENDER 1
-
8BD3-F4176-10-00 BOLT 1BOLT 1
-
9BD3-F1719-00-00 GROMMETGROMMET
-
10BD3-F1647-00-00 BANDBAND
-
11BD3-F15A3-00-00 CLAMPCLAMP
-
12BD3-F113B-00-00 DAMPERDAMPER
-
13BD3-F8100-10-00 TOOL KITTOOL KIT
-
14BD3-F811A-10-00 GAUGE, AIRGAUGE, AIR
