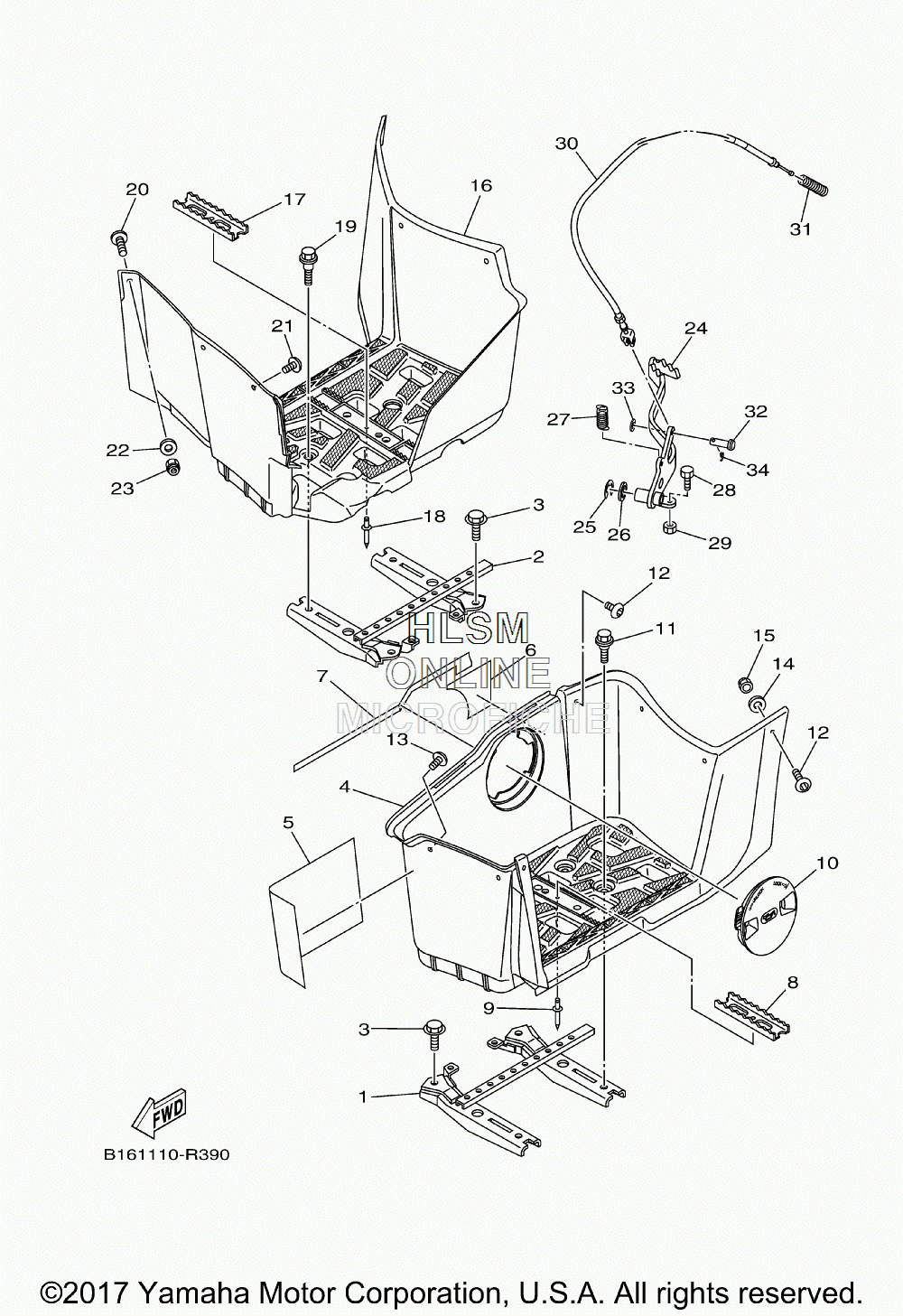

FOOTREST W/ BRAKE PEDAL для Yamaha KODIAK 700 4WD - 2018 года выпуска`
-
№АртикулНазвание
-
11HP-F7452-00-00 BRACKET, FOOTREST 1BRACKET, FOOTREST 1
-
21HP-F7462-00-00 BRACKET, FOOTREST 2BRACKET, FOOTREST 2
-
395812-08012-00 BOLT, FLANGEBOLT, FLANGE
-
41HP-F7453-00-00 COVER 1COVER 1
-
53B4-21732-00-00 SEAL 1SEAL 1
-
61HP-F2875-00-00 SEAL 3SEAL 3
-
72BG-F2874-00-00 SEAL 2SEAL 2
-
85UH-F741A-10-00 ARM 1ARM 1
-
990267-489U9-00 RIVET, BLINDRIVET, BLIND
-
101HP-F8239-00-00 COVER 3COVER 3
-
1190109-06043-00 BOLTBOLT
-
1290111-06814-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
1390111-06137-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
1490201-06078-00 WASHER, PLATEWASHER, PLATE
-
1595702-06300-00 NUT, NYLONNUT, NYLON
-
161HP-F7463-00-00 COVER 2COVER 2
-
175UH-F741A-10-00 ARM 1ARM 1
-
1890267-489U9-00 RIVET, BLINDRIVET, BLIND
-
1990109-06043-00 BOLTBOLT
-
2090111-06814-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
2190111-06137-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
2290201-06078-00 WASHER, PLATEWASHER, PLATE
-
2395702-06300-00 NUT, NYLONNUT, NYLON
-
241HP-F7211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
2599001-10600-00 CIRCLIPCIRCLIP
-
2690201-14023-00 WASHER, PLATEWASHER, PLATE
-
2790506-20014-00 SPRING, TENSIONSPRING, TENSION
-
2897022-06014-00 BOLT, HEXAGONBOLT, HEXAGON
-
2995302-06600-00 NUT, HEXAGONNUT, HEXAGON
-
30B16-26351-00-00 CABLE, BRAKECABLE, BRAKE
-
3190501-121A2-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
3290240-06076-00 PIN, CLEVISPIN, CLEVIS
-
3392907-06200-00 WASHERWASHER
-
3491401-20012-00 PIN, COTTERPIN, COTTER
