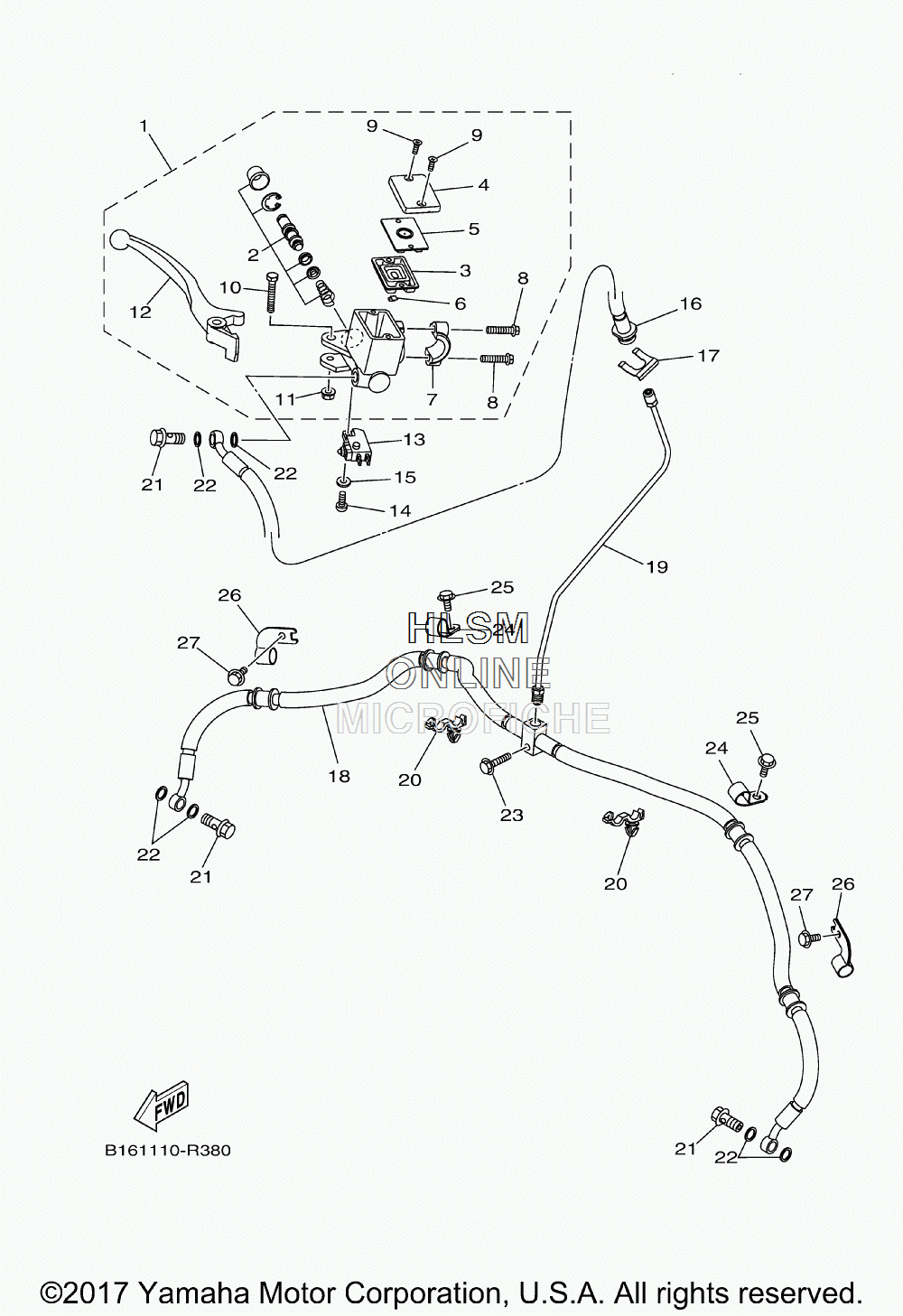

BRAKE - FRONT MASTER CYLINDER для Yamaha KODIAK 700 4WD - 2018 года выпуска`
-
№АртикулНазвание
-
1B16-F583T-00-00 MASTER CYLINDER ASSYMASTER CYLINDER ASSY
-
2B16-F5807-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
3B16-F5854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
4B16-F5852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
5B16-F585B-00-00 ...PLATE, DIAPHRAGM...PLATE, DIAPHRAGM
-
6B16-F5889-00-00 ...SEPARATOR...SEPARATOR
-
7B16-F5867-00-00 ...BRACKET, MASTER CYLINDER...BRACKET, MASTER CYLINDER
-
8B16-F6332-00-00 ...BOLT...BOLT
-
998702-04012-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
10B16-F589F-10-00 ...BOLT, LEVER...BOLT, LEVER
-
1195702-06500-00 ...NUT, FLANGE...NUT, FLANGE
-
12B16-F3922-00-00 ...LEVER, BRAKE...LEVER, BRAKE
-
131HP-83980-01-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
1498502-04012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1592902-04600-00 WASHER, PLATEWASHER, PLATE
-
16B16-F5872-01-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
172GU-25866-00-00 CIRCLIPCIRCLIP
-
181HP-F5873-00-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
191HP-F5871-00-00 PIPE, BRAKEPIPE, BRAKE
-
2090464-20010-00 CLAMPCLAMP
-
2190401-10015-00 BOLT, UNIONBOLT, UNION
-
2290201-10118-00 WASHER, PLATEWASHER, PLATE
-
2395812-06025-00 BOLT, FLANGEBOLT, FLANGE
-
243B4-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2595812-06012-00 BOLT, FLANGEBOLT, FLANGE
-
262PG-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
2795812-06012-00 BOLT, FLANGEBOLT, FLANGE
