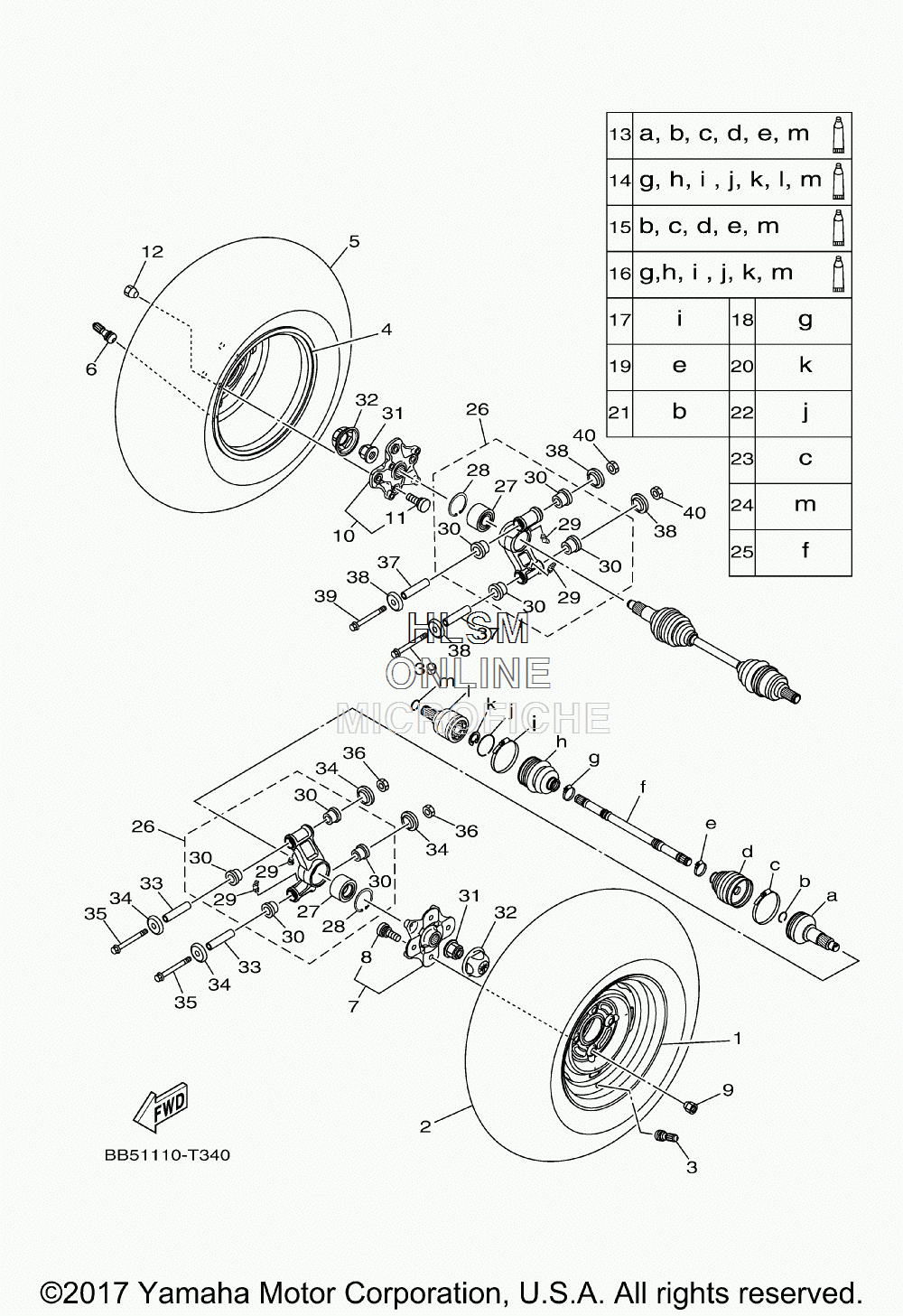

WHEEL - REAR W/ AXLE ASSY для Yamaha KODIAK 450 - 2018 года выпуска`
-
№АртикулНазвание
-
1B16-F5390-00-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
294110-12821-00 TIRE (AT25X10-12 CU906 4PR TL) (CHENG SHIN)TIRE (AT25X10-12 CU906 4PR TL) (CHENG SHIN)
-
393900-00813-00 VALVE, RIM (TR413) (MAXXIS)VALVE, RIM (TR413) (MAXXIS)
-
4B16-F5390-00-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
594110-12821-00 TIRE (AT25X10-12 CU906 4PR TL) (CHENG SHIN)TIRE (AT25X10-12 CU906 4PR TL) (CHENG SHIN)
-
693900-00813-00 VALVE, RIM (TR413) (MAXXIS)VALVE, RIM (TR413) (MAXXIS)
-
7B16-F510D-01-00 HUB ASSY 2HUB ASSY 2
-
890114-10014-00 ...BOLT, SERRATION...BOLT, SERRATION
-
990179-10022-00 NUTNUT
-
10B16-F510D-01-00 HUB ASSY 2HUB ASSY 2
-
1190114-10014-00 ...BOLT, SERRATION...BOLT, SERRATION
-
1290179-10022-00 NUTNUT
-
1328P-2510F-03-00 BALL JOINT SETBALL JOINT SET
-
1428P-2530V-01-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
1528P-2510G-01-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
1628P-2510H-02-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
173B4-2511H-00-00 BOOT BAND (DOUBLE OFFSET JOINT)BOOT BAND (DOUBLE OFFSET JOINT)
-
183B4-2512G-00-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
1928P-2512G-00-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
203B4-2512J-00-00 SNAP RINGSNAP RING
-
213B4-2512H-00-00 CIRCLIPCIRCLIP
-
223B4-25182-00-00 CIRCLIPCIRCLIP
-
2328P-2511H-00-00 BOOT BAND (DOUBLE OFFSET JOINT)BOOT BAND (DOUBLE OFFSET JOINT)
-
243B4-2536E-00-00 CLIP, SPRINGCLIP, SPRING
-
25BB5-2518E-10-00 SHAFTSHAFT
-
26BB5-F532F-00-00 REAR KNUCKLE ASSY.,2REAR KNUCKLE ASSY.,2
-
2793305-00602-00 ...BEARING...BEARING
-
2899009-55500-00 ...CIRCLIP...CIRCLIP
-
2993700-06009-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
3090381-17067-00 ...BUSH, SOLID...BUSH, SOLID
-
3190179-20016-00 NUTNUT
-
321HP-F512A-00-00 CAP, WHEELCAP, WHEEL
-
335KM-23448-00-00 SPACERSPACER
-
342NL-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
3590105-10212-00 BOLT, FLANGEBOLT, FLANGE
-
3690185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
375KM-23448-00-00 SPACERSPACER
-
382NL-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
3990105-10212-00 BOLT, FLANGEBOLT, FLANGE
-
4090185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
