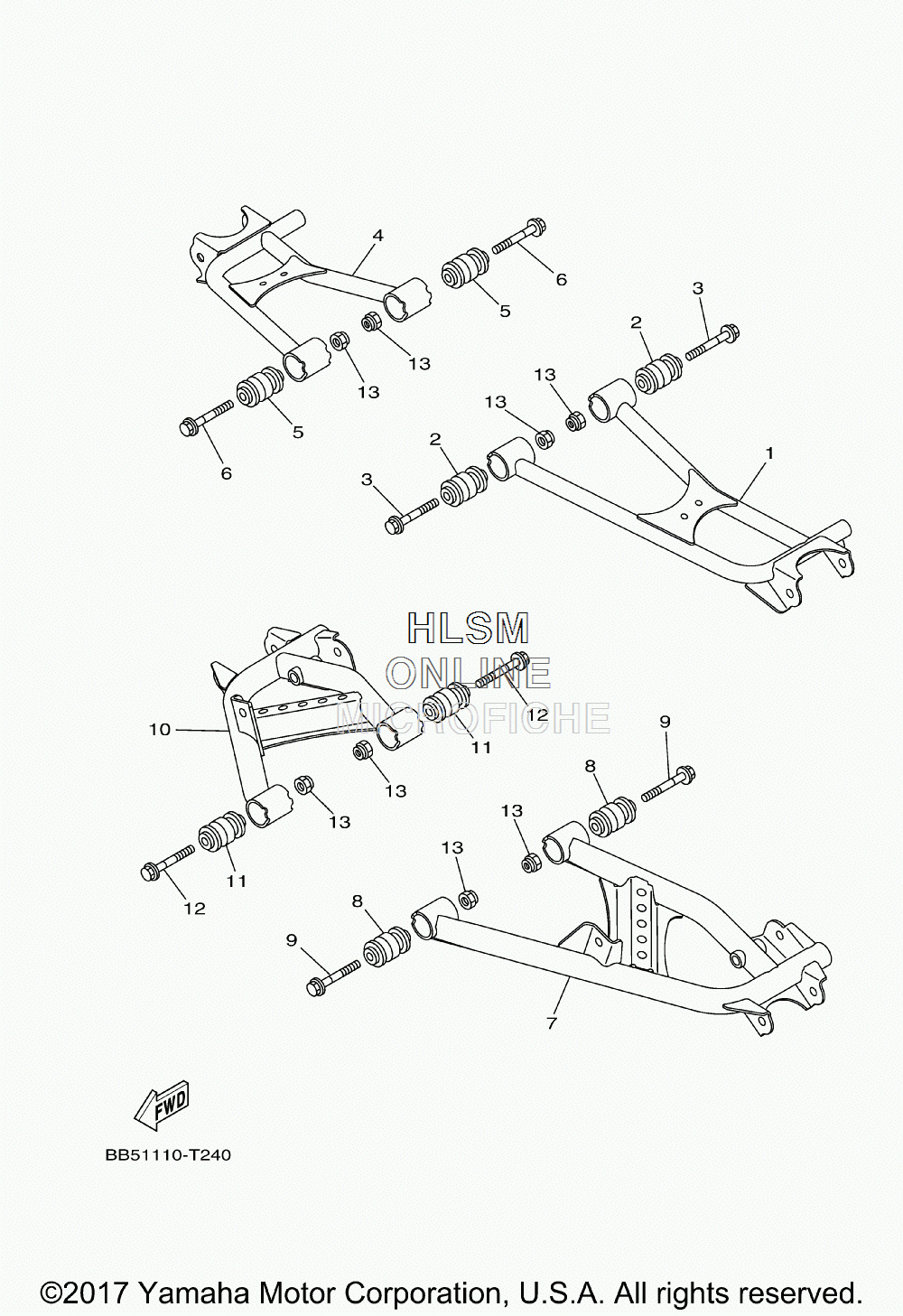

SUSPENSION - REAR ARM для Yamaha KODIAK 450 - 2018 года выпуска`
-
№АртикулНазвание
-
1BB5-F2171-00-00 ARM, REAR 1ARM, REAR 1
-
21HP-F3526-00-00 BUSHBUSH
-
395812-10070-00 BOLT, FLANGEBOLT, FLANGE
-
4BB5-F2172-00-00 ARM, REAR 2ARM, REAR 2
-
51HP-F3526-00-00 BUSHBUSH
-
695812-10070-00 BOLT, FLANGEBOLT, FLANGE
-
7BB5-F217M-00-00 ARM 1ARM 1
-
81HP-F3526-00-00 BUSHBUSH
-
995812-10070-00 BOLT, FLANGEBOLT, FLANGE
-
10BB5-F217N-00-00 ARM 2ARM 2
-
111HP-F3526-00-00 BUSHBUSH
-
1295812-10070-00 BOLT, FLANGEBOLT, FLANGE
-
1390185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
