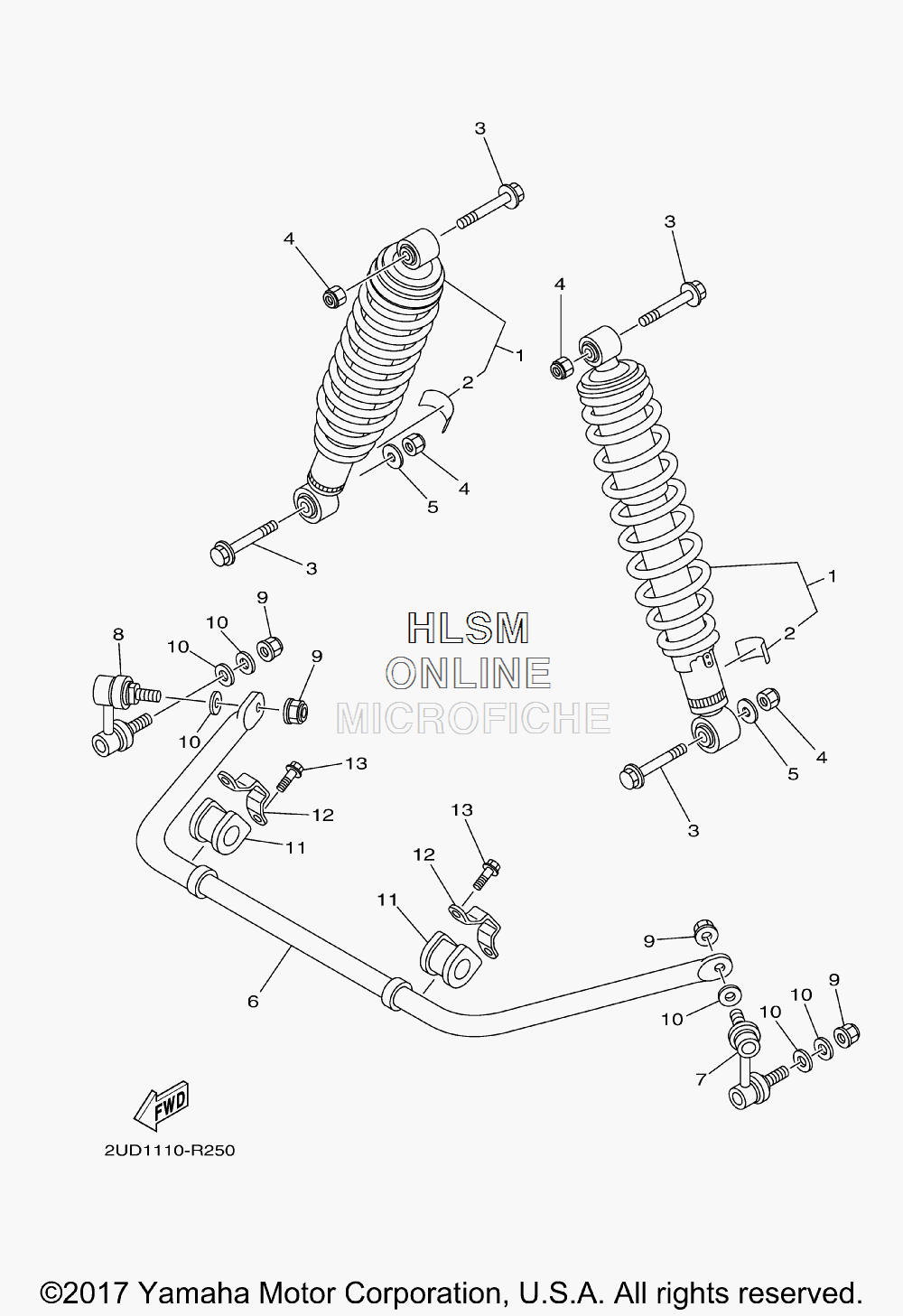

SUSPENSION - REAR SHOCK ABSORBER для Yamaha GRIZZLY EPS 4WD HUNTER - 2018 года выпуска`
-
№АртикулНазвание
-
12UD-F2200-00-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
21HP-F2259-01-00 ...LABEL, WARNING...LABEL, WARNING
-
390105-10131-00 BOLT, FLANGEBOLT, FLANGE
-
490185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
590201-10035-00 WASHER, PLATEWASHER, PLATE
-
61HP-G7491-00-00 BAR, STABILIZERBAR, STABILIZER
-
716B-2385L-10-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
816B-2385M-10-00 JOINT, STABILIZER 2JOINT, STABILIZER 2
-
995602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
1090201-10035-00 WASHER, PLATEWASHER, PLATE
-
111HP-F386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
121HP-F386H-00-00 COVER, STABILIZER FRONTCOVER, STABILIZER FRONT
-
1395812-08014-00 BOLT, FLANGEBOLT, FLANGE
