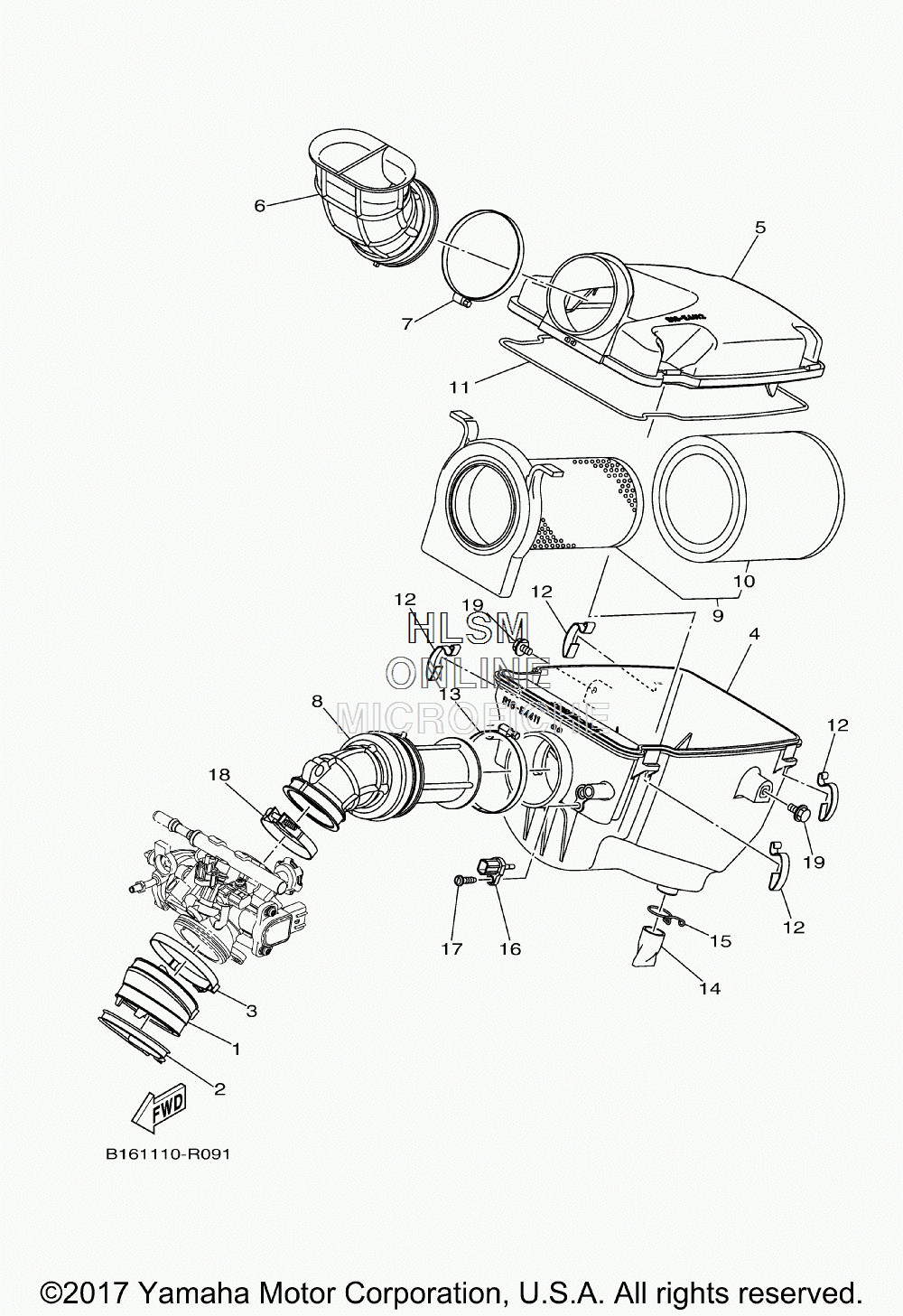

AIR CLEANER W/ INTAKE для Yamaha GRIZZLY EPS 4WD HUNTER - 2018 года выпуска`
-
№АртикулНазвание
-
12MB-E3586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
22MB-E1388-00-00 CLAMP, HOSE 2CLAMP, HOSE 2
-
390450-72004-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
4B16-E4411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
5B16-E4412-00-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
6B16-E4437-10-00 DUCTDUCT
-
7B16-E4455-00-00 BANDBAND
-
8B16-E4453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
9B16-E4450-00-00 ELEMENT ASSY, AIR CLEANERELEMENT ASSY, AIR CLEANER
-
10B16-E4451-00-00 ...ELEMENT, AIR CLEANER...ELEMENT, AIR CLEANER
-
11B16-E4457-00-00 SEALSEAL
-
12B16-E4424-00-00 CLIP, CAP FITTINGCLIP, CAP FITTING
-
13B16-E4456-00-00 BANDBAND
-
14B16-E443E-00-00 PIPE, DRAINPIPE, DRAIN
-
1590467-220A1-00 CLIPCLIP
-
168FP-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
1797702-50520-00 SCREW, TAPPINGSCREW, TAPPING
-
1890450-59009-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1995812-06010-00 BOLT, FLANGEBOLT, FLANGE
