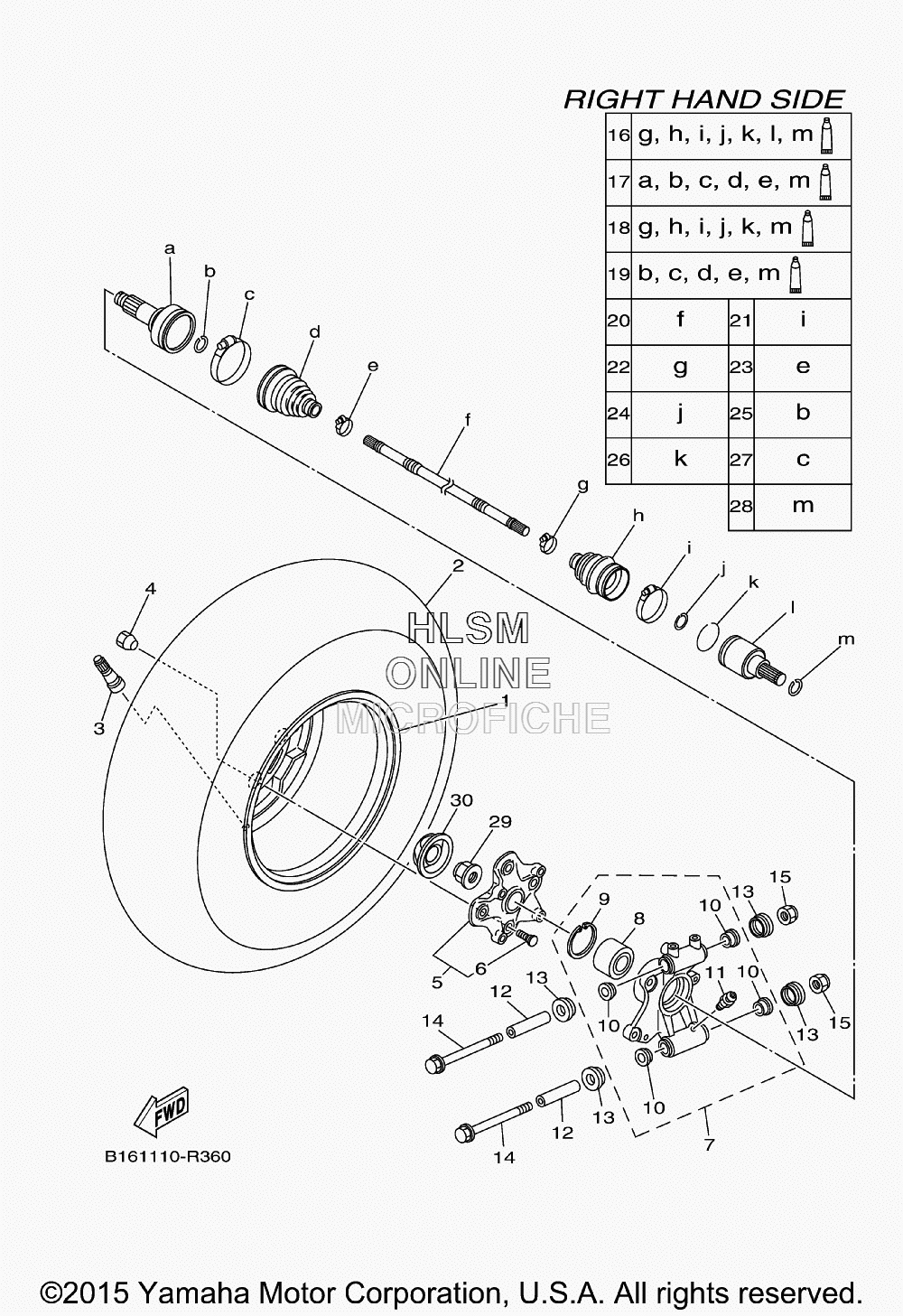

WHEEL - REAR RIGHT SIDE W/ AXLE ASSY для Yamaha KODIAK 700 EPS 4WD - 2016 года выпуска`
-
№АртикулНазвание
-
1B16-F5390-00-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
294110-12814-00 TIRE (AT25X10-12 MU20 TL) (MAXXIS)TIRE (AT25X10-12 MU20 TL) (MAXXIS)
-
393900-00813-00 VALVE, RIM (TR413) (MAXXIS)VALVE, RIM (TR413) (MAXXIS)
-
490179-10020-00 NUTNUT
-
5B16-F510D-00-00 HUB ASSY 2HUB ASSY 2
-
690114-10014-00 ...BOLT, SERRATION...BOLT, SERRATION
-
72BG-F532F-00-00 REAR KNUCKLE ASSY.,2REAR KNUCKLE ASSY.,2
-
893305-00602-00 ...BEARING...BEARING
-
999009-55500-00 ...CIRCLIP...CIRCLIP
-
1090381-17067-00 ...BUSH, SOLID...BUSH, SOLID
-
1193700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
125KM-23448-00-00 SPACERSPACER
-
132NL-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
1490105-10212-00 BOLT, FLANGEBOLT, FLANGE
-
1590185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
16B16-2530V-00-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
1728P-2510F-03-00 BALL JOINT SETBALL JOINT SET
-
18B16-2510H-00-00 BOOT SET(DOUBLE OFFSET JOINT)BOOT SET(DOUBLE OFFSET JOINT)
-
1928P-2510G-01-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
20B16-2518E-10-00 SHAFTSHAFT
-
21B16-2511H-00-00 BOOT BAND(DOUBLE OFFSET JOINT)BOOT BAND(DOUBLE OFFSET JOINT)
-
22B16-2512G-00-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
2328P-2512G-00-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
24B16-2512J-00-00 SNAP RINGSNAP RING
-
253B4-2512H-00-00 CIRCLIPCIRCLIP
-
26B16-25182-00-00 CIRCLIPCIRCLIP
-
2728P-2511H-00-00 BOOT BAND(DOUBLE OFFSET JOINT)BOOT BAND(DOUBLE OFFSET JOINT)
-
283B4-2536E-00-00 CLIP, SPRINGCLIP, SPRING
-
2990179-20016-00 NUTNUT
-
301HP-F512A-00-00 CAP, WHEELCAP, WHEEL
