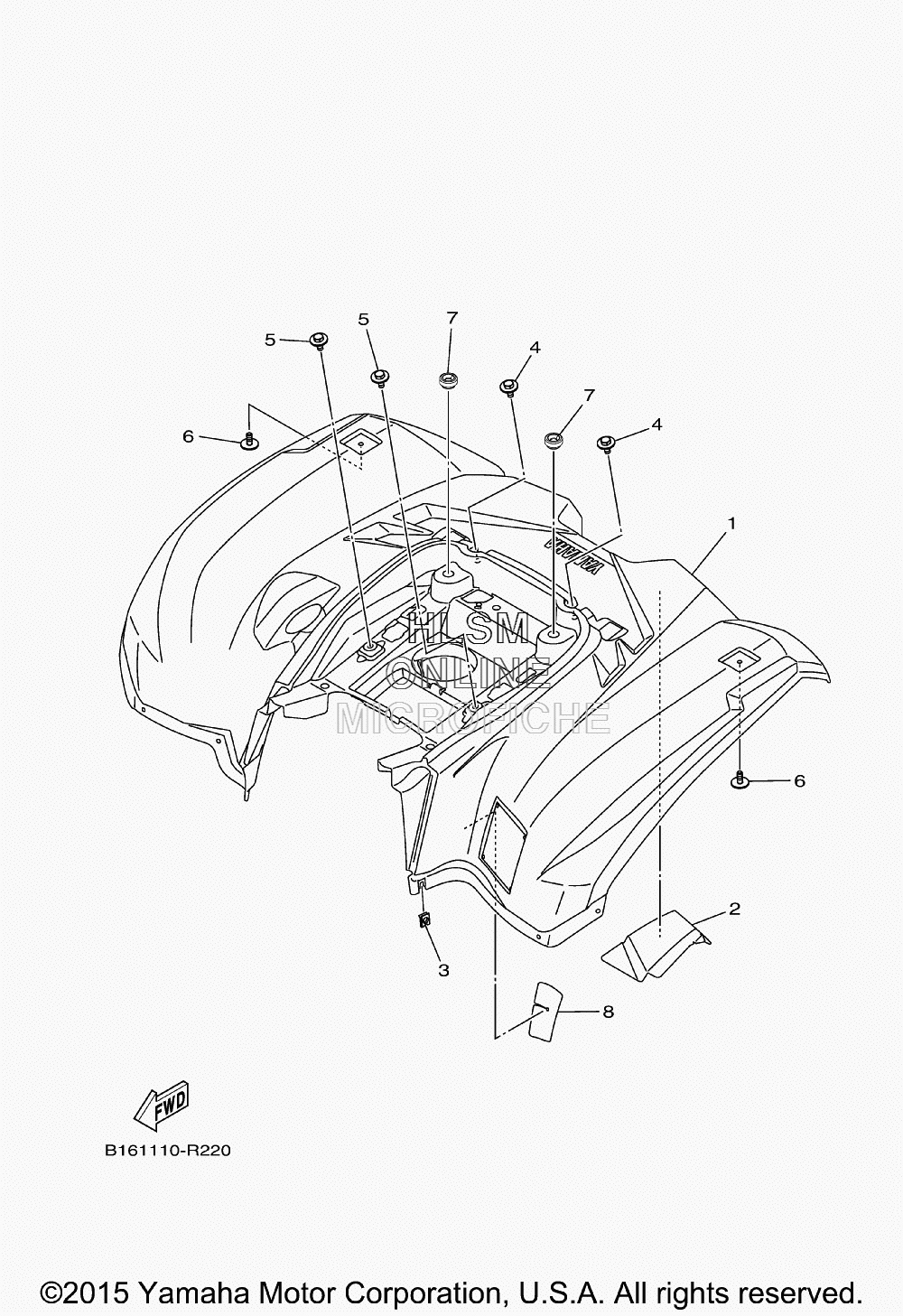

FENDER - REAR для Yamaha KODIAK 700 EPS 4WD - 2016 года выпуска
-
№АртикулНазвание
-
1B16-F1600-10-00 REAR FENDER ASSY (RTR - ROMANTIC ROUGE)REAR FENDER ASSY (RTR - ROMANTIC ROUGE)
-
1B16-F1600-00-00 REAR FENDER ASSY (PDG - PASTEL DEEP GREEN)REAR FENDER ASSY (PDG - PASTEL DEEP GREEN)
-
1B16-F1600-20-00 REAR FENDER ASSY (DPBSN - DEEP PURPLE BLUE SOLID N)REAR FENDER ASSY (DPBSN - DEEP PURPLE BLUE SOLID N)
-
2B16-21652-00-00 PROTECTORPROTECTOR
-
390183-06053-00 NUT, SPRINGNUT, SPRING
-
490119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
590119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
690119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
790480-16807-00 GROMMETGROMMET
-
8B16-F1669-00-00 SEALSEAL
