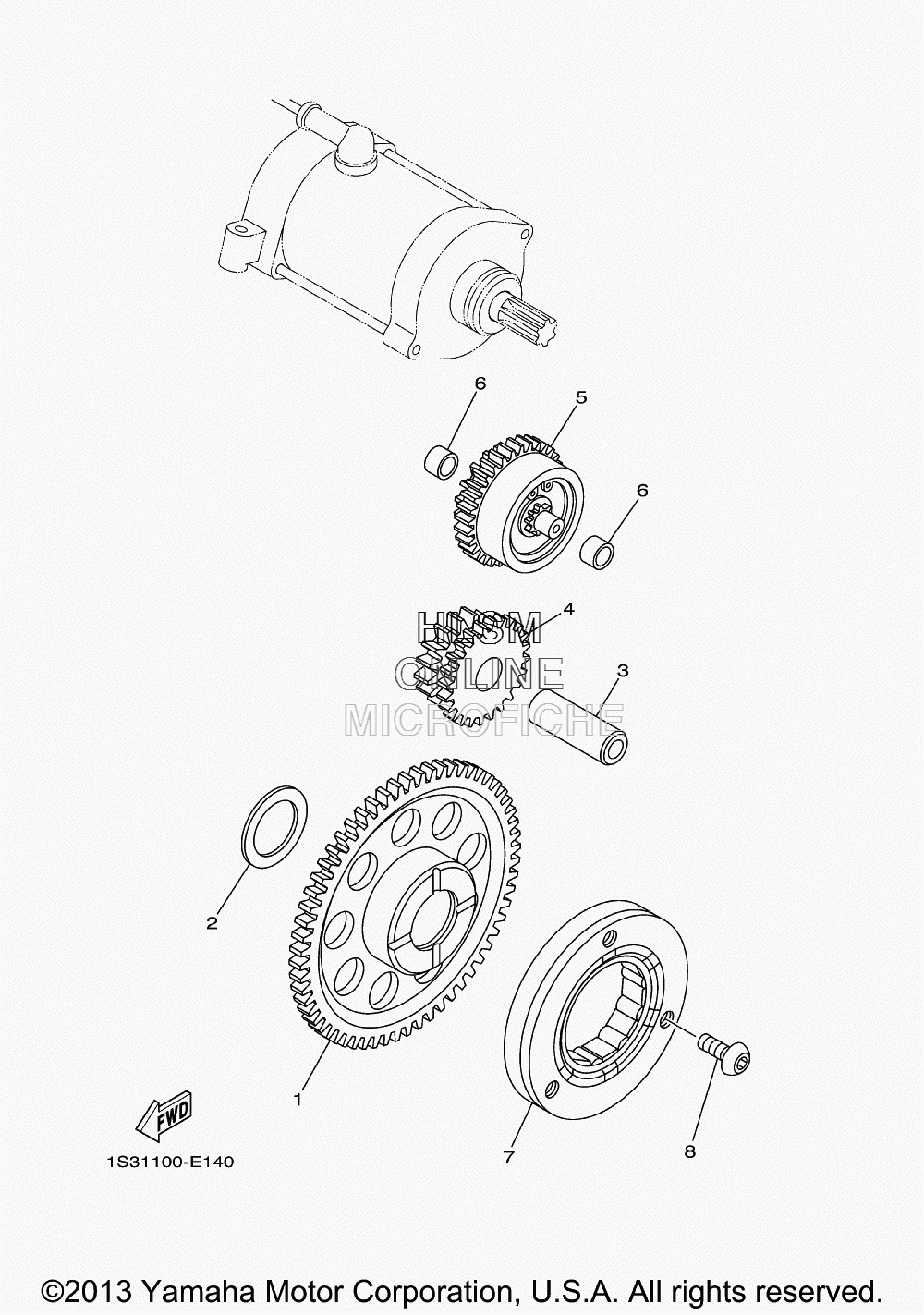

STARTER - RECOIL для Yamaha RAPTOR 700 - 2014 года выпуска`
-
№АртикулНазвание
-
11S3-15515-00-00 GEAR 3GEAR 3
-
290201-286K9-00 WASHER, PLATE (T1.0)WASHER, PLATE (T1.0)
-
31VJ-15522-00-00 SHAFT 2SHAFT 2
-
41S3-15517-01-00 GEAR, IDLER 2GEAR, IDLER 2
-
51PE-15560-00-00 DAMPER ASSYDAMPER ASSY
-
690380-10002-00 BUSH, SOLIDBUSH, SOLID
-
75VK-15590-00-00 STARTER ONE-WAY ASSYSTARTER ONE-WAY ASSY
-
890149-08049-00 SCREWSCREW
