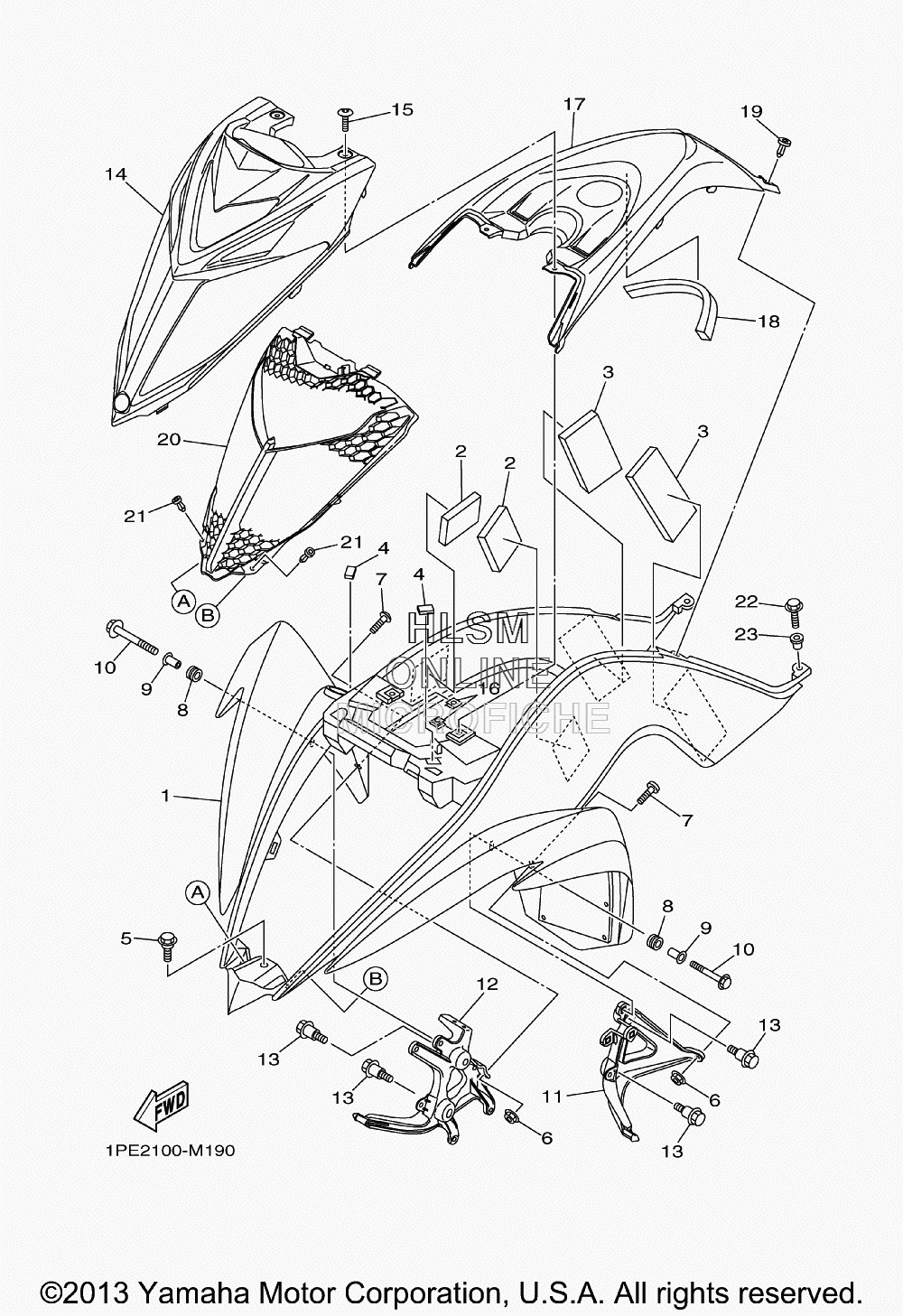

FENDER - FRONT для Yamaha RAPTOR 700 - 2014 года выпуска`
-
№АртикулНазвание
-
11PE-F1500-10-00 FRONT FENDER ASSY FOR DPBSEFRONT FENDER ASSY FOR DPBSE
-
11PE-F1500-70-00 FRONT FENDER ASSY FOR VYRS4FRONT FENDER ASSY FOR VYRS4
-
21S3-21541-00-00 DAMPER 1DAMPER 1
-
33Y0-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
43B4-21541-00-00 DAMPER 1DAMPER 1
-
590109-06172-00 BOLTBOLT
-
695602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
790111-06137-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
890480-14102-00 GROMMETGROMMET
-
990387-06136-00 COLLARCOLLAR
-
1095812-06025-00 BOLT, FLANGEBOLT, FLANGE
-
111PE-F1513-00-00 STAY, FENDER 1STAY, FENDER 1
-
121PE-F1514-00-00 STAY, FENDER 2STAY, FENDER 2
-
1390109-06214-00 BOLTBOLT
-
141PE-F3391-10-00 PANEL, FRONT FOR VYRS4PANEL, FRONT FOR VYRS4
-
141PE-F3391-30-00 PANEL, FRONT FOR DPBSEPANEL, FRONT FOR DPBSE
-
1590111-06814-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1690183-06053-00 NUT, SPRINGNUT, SPRING
-
171PE-F171A-30-00 COVER, TOP FOR DPBSECOVER, TOP FOR DPBSE
-
171PE-F171A-10-00 COVER, TOP FOR VYRS4COVER, TOP FOR VYRS4
-
1890520-20001-00 DAMPER, PLATEDAMPER, PLATE
-
1990269-06002-00 RIVETRIVET
-
201PE-E2467-00-00 COVER, RADIATORCOVER, RADIATOR
-
2190269-06002-00 RIVETRIVET
-
2290105-06084-00 BOLT, FLANGEBOLT, FLANGE
-
2390387-06146-00 COLLARCOLLAR
