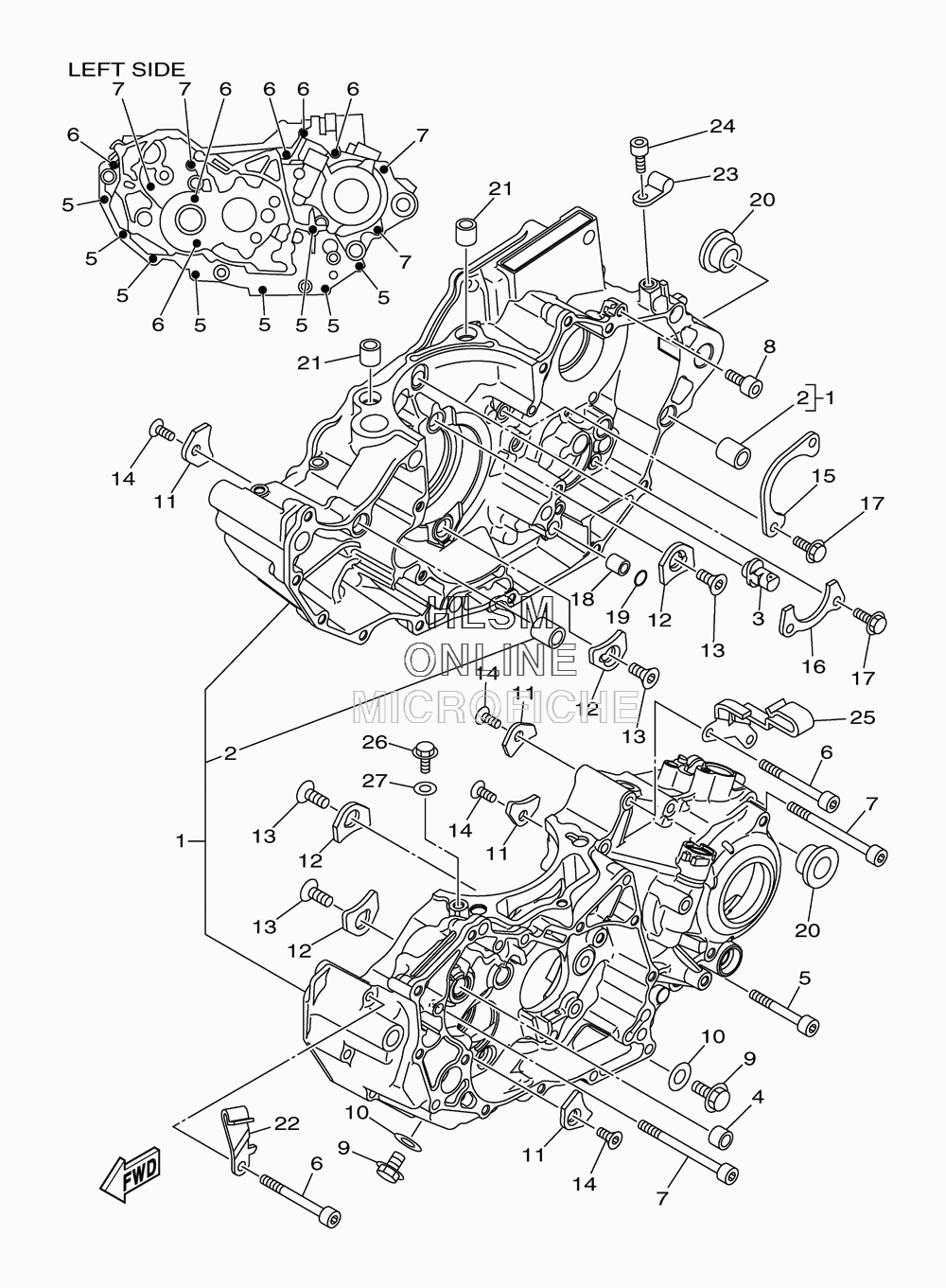

CRANKCASE для Yamaha YFZ 450R - 2013 года выпуска`
-
№АртикулНазвание
-
118P-15100-00-00 CRANKCASE ASSYCRANKCASE ASSY
-
299530-14016-00 ...PIN, DOWEL...PIN, DOWEL
-
32S2-15155-10-00 NOZZLE 3NOZZLE 3
-
490380-10002-00 BUSH, SOLIDBUSH, SOLID
-
591312-06050-00 BOLTBOLT
-
691312-06060-00 BOLTBOLT
-
791312-06080-00 BOLTBOLT
-
891312-06016-00 BOLTBOLT
-
995022-10016-00 BOLT, FLANGEBOLT, FLANGE
-
1090430-10148-00 GASKETGASKET
-
114JT-15381-01-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
1218P-15383-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
1390151-08003-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
1490149-06074-00 SCREWSCREW
-
152S2-15388-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
162S2-18562-00-00 PLATE, STOPPER 2PLATE, STOPPER 2
-
1790105-06081-00 BOLT, FLANGEBOLT, FLANGE
-
1899530-10114-00 PIN, DOWELPIN, DOWEL
-
1993210-10197-00 O-RINGO-RING
-
2090387-164N2-00 COLLARCOLLAR
-
2199530-14016-00 .PIN, DOWEL.PIN, DOWEL
-
2290462-10056-00 CLAMPCLAMP
-
2390461-10135-00 CLAMPCLAMP
-
2491312-06016-00 BOLTBOLT
-
2518P-15378-00-00 HOLDERHOLDER
-
2695022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
2790430-06014-00 GASKETGASKET
