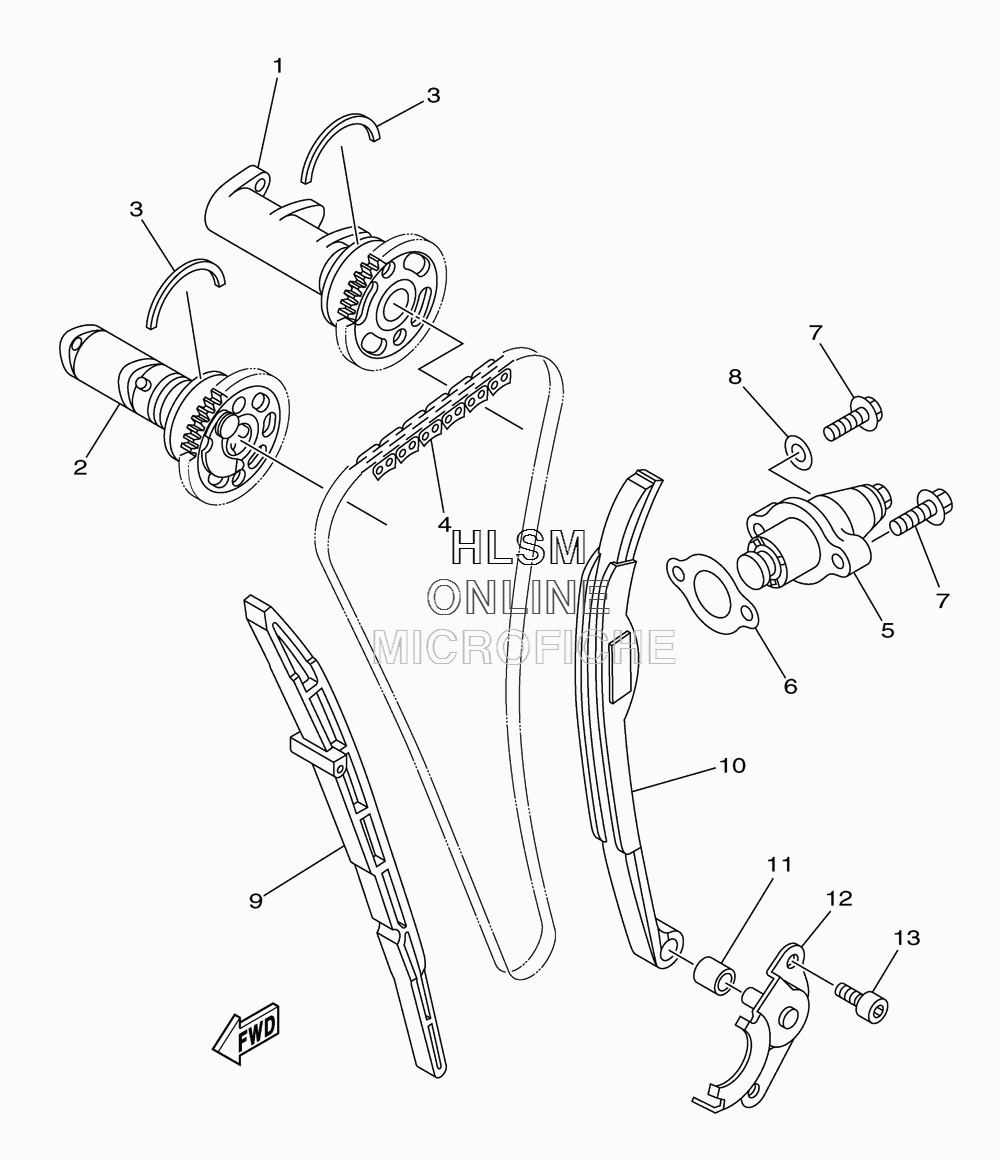

CAMSHAFT W/ CHAIN для Yamaha YFZ 450R - 2013 года выпуска`
-
№АртикулНазвание
-
118P-12170-00-00 CAMSHAFT ASSY 1CAMSHAFT ASSY 1
-
218P-12180-00-00 CAMSHAFT ASSY 2CAMSHAFT ASSY 2
-
393440-41178-00 CIRCLIPCIRCLIP
-
494591-57120-00 CHAIN (98XRIGHT HAND2010-120M)CHAIN (98XRIGHT HAND2010-120M)
-
55TA-12210-10-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
64FM-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
795022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
890430-06014-00 GASKETGASKET
-
92S2-12251-00-00 DAMPER, CHAIN 1DAMPER, CHAIN 1
-
1018P-12252-00-00 DAMPER, CHAIN 2DAMPER, CHAIN 2
-
1190387-07030-00 COLLARCOLLAR
-
1218P-12233-00-00 PLATE, GUIDE STOPPER 1PLATE, GUIDE STOPPER 1
-
1390110-06168-00 .BOLT, HEXAGON SOCKET HEAD.BOLT, HEXAGON SOCKET HEAD
