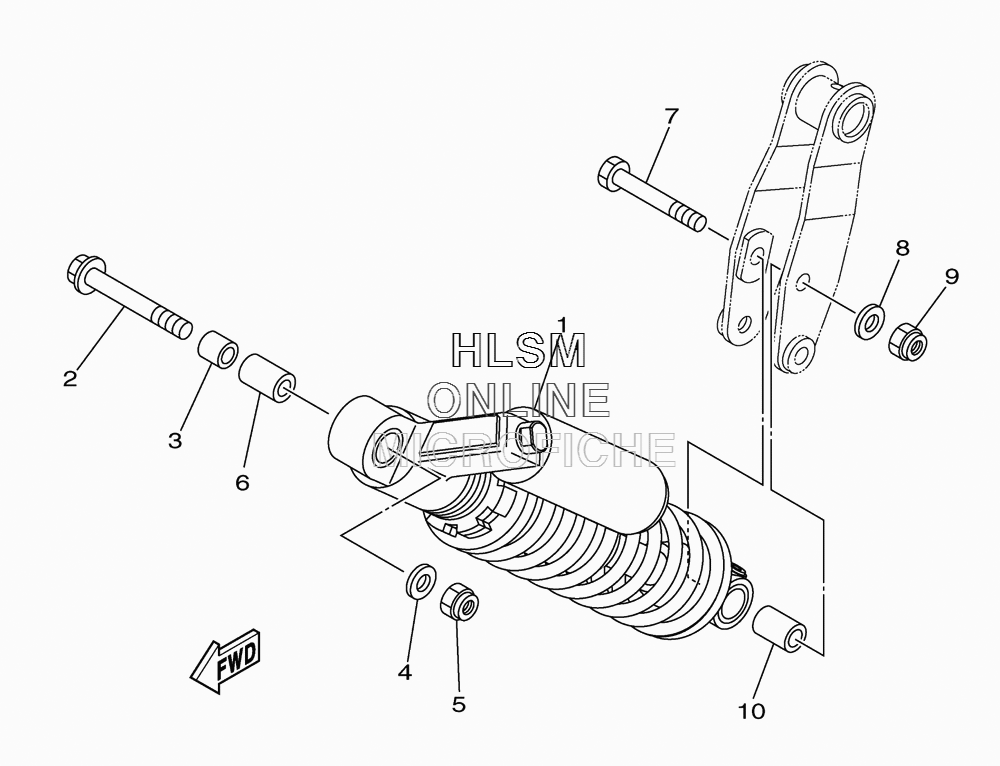

SUSPENSION - REAR SHOCK ABSORBER для Yamaha RAPTOR 700 - 2013 года выпуска`
-
№АртикулНазвание
-
11PE-F2200-00-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
290105-12038-00 BOLT, FLANGEBOLT, FLANGE
-
390387-12028-00 COLLARCOLLAR
-
490201-12032-00 WASHER, PLATEWASHER, PLATE
-
590185-12007-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
690387-12020-00 COLLARCOLLAR
-
790109-10019-00 BOLTBOLT
-
890201-10036-00 WASHER, PLATEWASHER, PLATE
-
990185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1090387-127W0-00 COLLARCOLLAR
