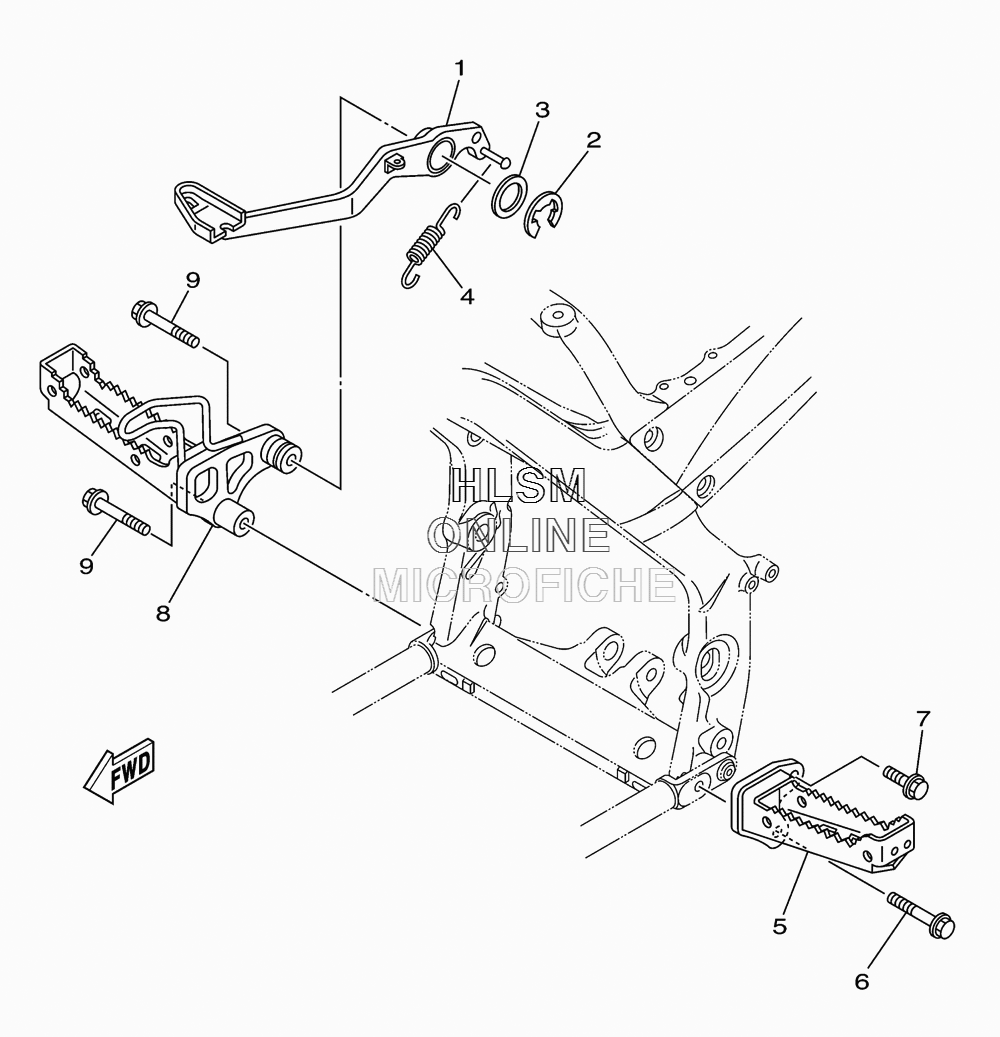

FOOTREST W/ BRAKE PEDAL для Yamaha RAPTOR 700 - 2013 года выпуска`
-
№АртикулНазвание
-
11PE-F7211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
293430-23054-00 CIRCLIPCIRCLIP
-
390201-266F6-00 WASHER, PLATEWASHER, PLATE
-
490506-20026-00 SPRING, TENSIONSPRING, TENSION
-
51PE-F7411-00-00 FOOTREST 1FOOTREST 1
-
690105-10294-00 BOLT, FLANGEBOLT, FLANGE
-
795812-10030-00 BOLT, FLANGEBOLT, FLANGE
-
81PE-F7421-00-00 FOOTREST 2FOOTREST 2
-
990105-10294-00 BOLT, FLANGEBOLT, FLANGE
