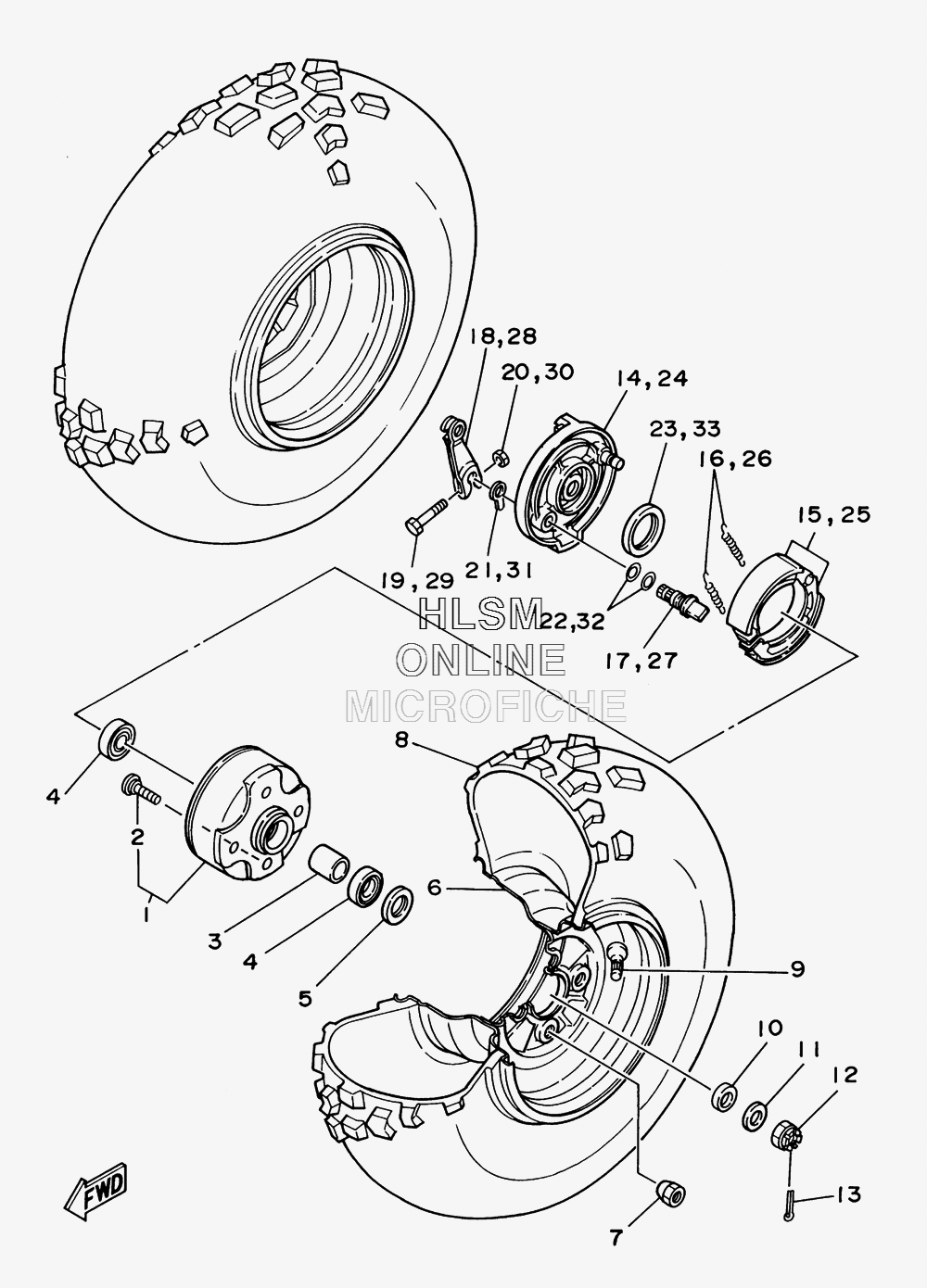

WHEEL - FRONT W/ AXLE ASSY для Yamaha GRIZZLY 125 - 2013 года выпуска`
-
№АртикулНазвание
-
11C5-25111-00-00 HUB, FRONTHUB, FRONT
-
290114-10014-00 ...BOLT, SERRATION...BOLT, SERRATION
-
33FA-25117-00-00 SPACER, BEARINGSPACER, BEARING
-
493306-00308-00 BEARINGBEARING
-
593102-23275-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
63FA-25180-00-98 WHEEL COMP. (LOW GLOSS BLACK)WHEEL COMP. (LOW GLOSS BLACK)
-
790179-10022-00 NUTNUT
-
894107-08009-00 TIRE (AT20X7-8 DI-K635A T/L) DUROTIRE (AT20X7-8 DI-K635A T/L) DURO
-
993900-00022-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
1090387-175R2-00 COLLARCOLLAR
-
1190201-14586-00 WASHER, PLATEWASHER, PLATE
-
1290171-14002-00 NUT, CASTLENUT, CASTLE
-
1391401-30025-00 PIN, COTTERPIN, COTTER
-
143FA-25121-00-00 PLATE, BRAKE SHOE FOR LEFT HANDPLATE, BRAKE SHOE FOR LEFT HAND
-
154BE-W2536-00-00 BRAKE SHOE SETBRAKE SHOE SET
-
1690506-15260-00 .SPRING, TENSION.SPRING, TENSION
-
175G3-25351-02-00 CAMSHAFTCAMSHAFT
-
183FA-25155-00-00 LEVER, CAMSHAFT 1 FOR LEFT HANDLEVER, CAMSHAFT 1 FOR LEFT HAND
-
1990101-06046-00 BOLTBOLT
-
2095302-06600-00 NUTNUT
-
2152H-2513A-00-00 PLATE, INDICATORPLATE, INDICATOR
-
2293210-12327-00 O-RINGO-RING
-
2393102-40367-00 OIL SEALOIL SEAL
-
243FA-25169-00-00 PLATE, BRAKE SHOE 2 FOR RIGHT HANDPLATE, BRAKE SHOE 2 FOR RIGHT HAND
-
254BE-W2536-00-00 BRAKE SHOE SETBRAKE SHOE SET
-
2690506-15260-00 SPRING, TENSIONSPRING, TENSION
-
275G3-25351-02-00 CAMSHAFTCAMSHAFT
-
283FA-25156-00-00 LEVER, CAMSHAFT 2 FOR RIGHT HANDLEVER, CAMSHAFT 2 FOR RIGHT HAND
-
2990101-06046-00 BOLTBOLT
-
3095302-06600-00 NUTNUT
-
3152H-2513A-00-00 PLATE, INDICATORPLATE, INDICATOR
-
3293210-12327-00 O-RINGO-RING
-
3393102-40367-00 OIL SEALOIL SEAL
