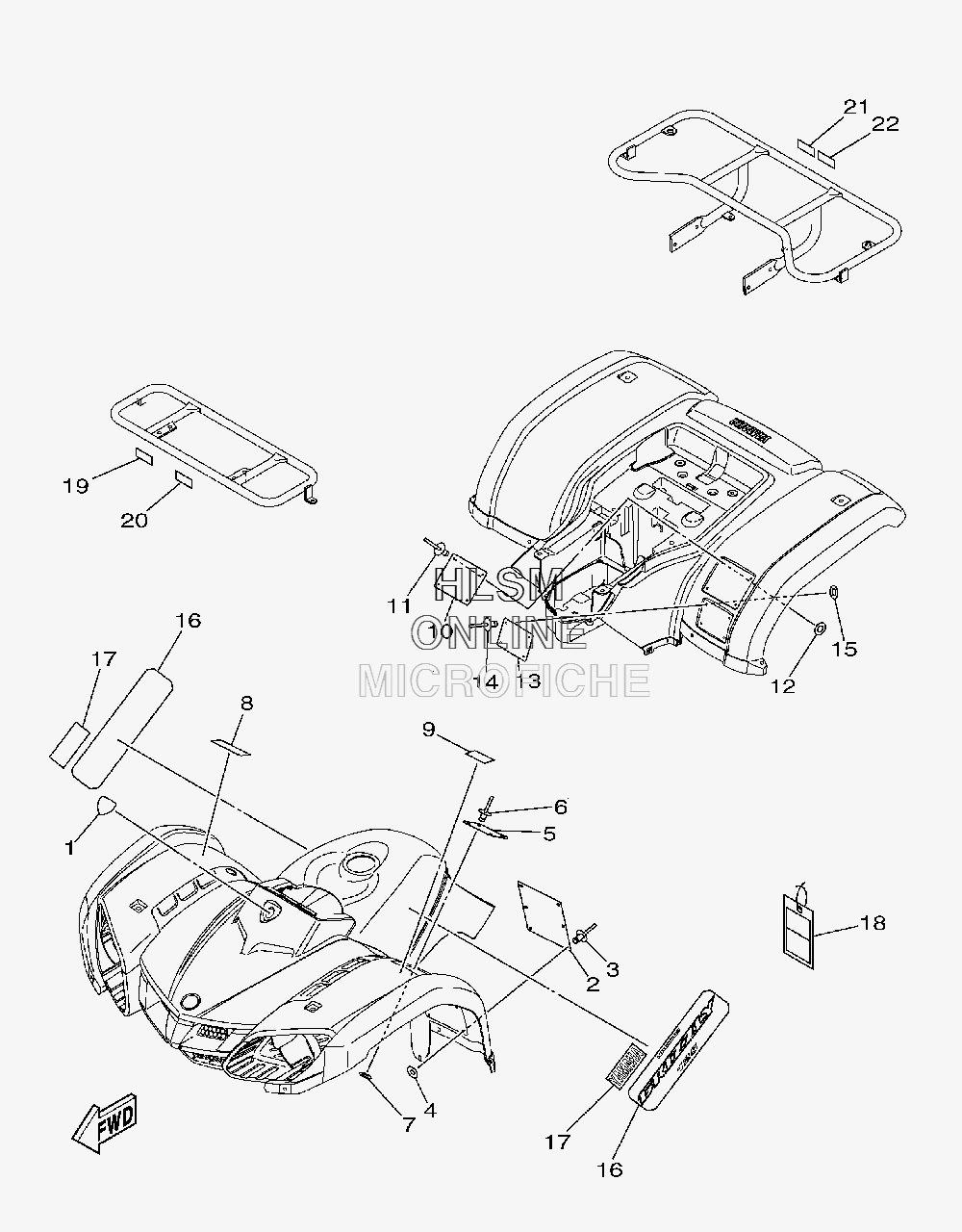

DECALS для Yamaha GRIZZLY 125 - 2013 года выпуска`
-
№АртикулНазвание
-
13B4-26232-01-00 EMBLEM 3DEMBLEM 3D
-
25FE-21568-01-00 LABEL, WARNINGLABEL, WARNING
-
390267-32004-00 RIVET, BLINDRIVET, BLIND
-
490201-03008-00 WASHER, PLATEWASHER, PLATE
-
54D3-2816L-00-00 LABEL, WARNING AGELABEL, WARNING AGE
-
690267-32004-00 RIVET, BLINDRIVET, BLIND
-
790201-03008-00 WASHER, PLATEWASHER, PLATE
-
85YT-2151E-30-00 LABEL 2LABEL 2
-
943P-2817J-10-00 PLATE, ANSI SVIAPLATE, ANSI SVIA
-
101C5-2816M-U0-00 LABEL, WARNING TIRE AND LOADLABEL, WARNING TIRE AND LOAD
-
1190267-32004-00 RIVET, BLINDRIVET, BLIND
-
1290201-03008-00 WASHER, PLATEWASHER, PLATE
-
135FE-2151H-01-00 LABEL 5LABEL 5
-
1490267-32004-00 RIVET, BLINDRIVET, BLIND
-
1590201-03008-00 WASHER, PLATEWASHER, PLATE
-
161C5-2173E-H0-00 GRAPHIC 1 (FOR DPBSN - PURPLISH BLUE)GRAPHIC 1 (FOR DPBSN - PURPLISH BLUE)
-
161C5-2173E-F0-00 GRAPHIC 1 (FOR PDG - DEEP GREEN)GRAPHIC 1 (FOR PDG - DEEP GREEN)
-
174ES-2153E-30-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
185KM-2819R-10-00 TAG, WARNINGTAG, WARNING
-
193MX-24875-A0-00 LABEL 1 (RIGHT)LABEL 1 (RIGHT)
-
203LD-24877-U0-00 LABEL, CAUTION (LEFT)LABEL, CAUTION (LEFT)
-
213MX-24875-A0-00 LABEL 1 (RIGHT)LABEL 1 (RIGHT)
-
221C5-24877-U0-00 LABEL, CAUTION (LEFT)LABEL, CAUTION (LEFT)
Все узлы модели:
- AIR CLEANER W/ INTAKE
- CAMSHAFT W/ CHAIN
- CARBURETOR
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT - PISTON
- CYLINDER HEAD
- • DECALS
- ELECTRICAL
- EXHAUST
- FENDER - FRONT
- FENDER - REAR
- FOOTREST W/ BRAKE PEDAL
- FRAME
- FUEL TANK
- GENERATOR
- HANDLEBAR W/ CABLES
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT
- MODEL INFO - MANUALS
- OIL PUMP
- RACK AND BUMPER
- SEAT
- SHIFT CAM W/ FORK
- STARTER CLUTCH
- STARTING MOTOR
- STEERING
- SUSPENSION - FRONT WHEEL
- SUSPENSION - REAR ARM
- TAILLIGHT
- TRANSMISSION
- VALVE ASSY
- WHEEL - FRONT W/ AXLE ASSY
- WHEEL - REAR W/ AXLE ASSY
