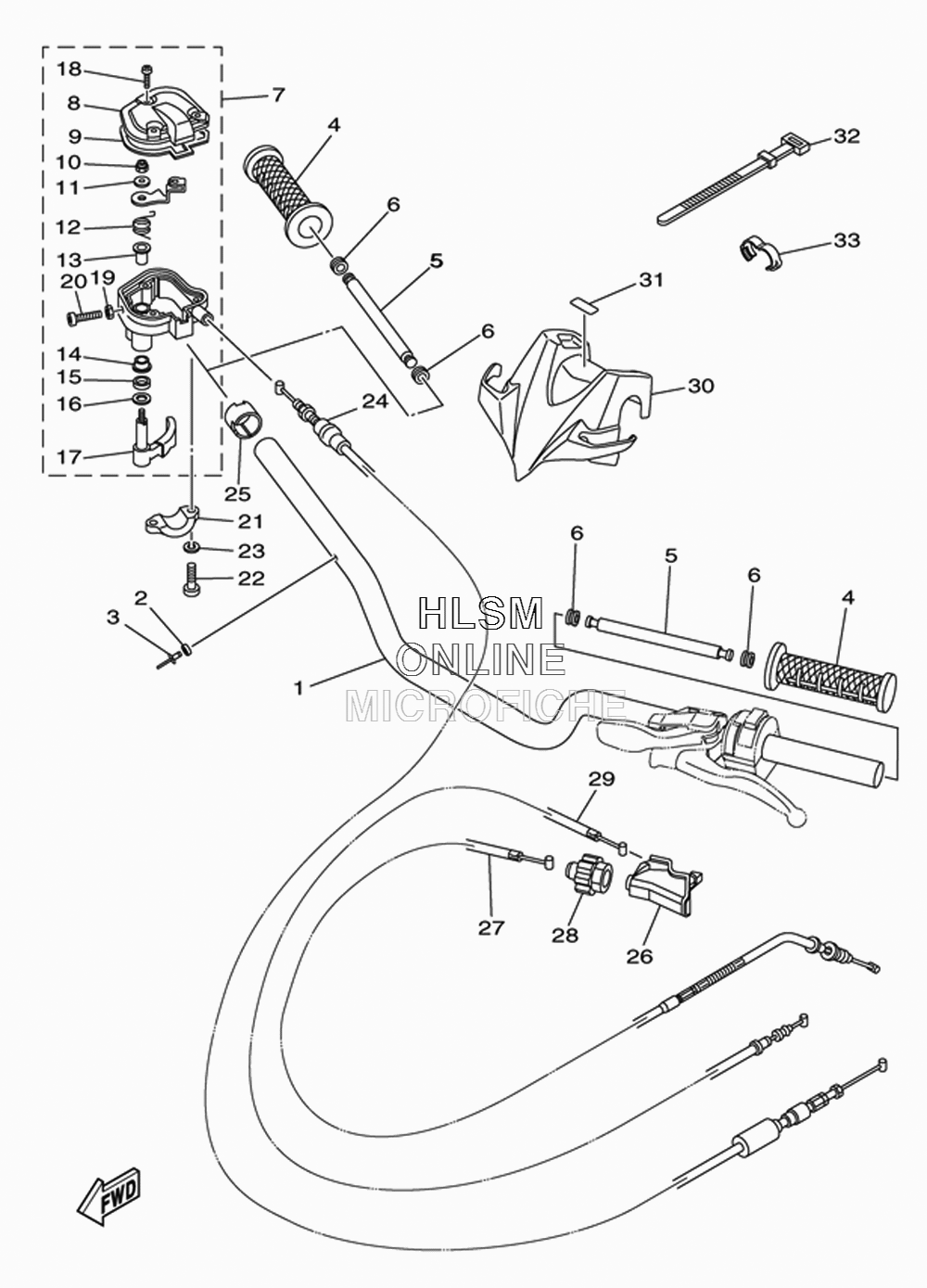

HANDLEBAR W/ CABLES для Yamaha YFZ 450R - 2012 года выпуска`
-
№АртикулНазвание
-
15D3-26111-12-00 HANDLEBARHANDLEBAR
-
290387-02001-00 COLLARCOLLAR
-
390267-24143-00 RIVET, BLINDRIVET, BLIND
-
45LP-26241-00-00 GRIPGRIP
-
518P-2622H-00-00 WEIGHTWEIGHT
-
690480-11006-00 GROMMETGROMMET
-
71S3-26250-00-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
81S3-2628F-00-00 ...CAP, GEAR...CAP, GEAR
-
91S3-2628G-00-00 ...GASKET...GASKET
-
1095602-05100-00 ...NUT, U...NUT, U
-
111NV-26398-00-00 ...WASHER...WASHER
-
121NV-26304-00-00 ...SPRING...SPRING
-
131NV-26259-01-00 ...COLLAR...COLLAR
-
141NV-2625K-00-00 ...COLLAR...COLLAR
-
1593104-09025-00 ...OIL SEAL, SO-TYPE...OIL SEAL, SO-TYPE
-
161NV-26129-00-00 ...WASHER...WASHER
-
171S3-2625G-00-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
1890149-04278-00 ...SCREW, SPEC'L SHAPE...SCREW, SPEC'L SHAPE
-
1995302-05700-00 ...NUT...NUT
-
2098502-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
211S3-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
2298502-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2392902-05100-00 WASHER, SPRINGWASHER, SPRING
-
2418P-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
251UY-26259-00-00 COLLARCOLLAR
-
265TG-26372-00-00 COVER, HANDLE LEVER 1COVER, HANDLE LEVER 1
-
2718P-26335-00-00 CABLE, CLUTCHCABLE, CLUTCH
-
281C3-26342-50-00 BOOT, CABLEBOOT, CABLE
-
2918P-26341-00-00 WIRE, BRAKE 1WIRE, BRAKE 1
-
3018P-26124-01-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
315D3-26219-10-00 EMBLEMEMBLEM
-
32437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
3390464-16001-00 CLAMPCLAMP
